H807DMX
LED Controller · PI-8008B
8-Port XLR Art-Net Controller
8-Port XLR Art-Net Controller for DMX/SPI — Madrix-Compatible Stage Lighting
8-port Art-Net controller with 3-pin XLR I/O for DMX/SPI pixel control — online Madrix, offline SD card or DMX console.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 8-Port XLR Art-Net Controller

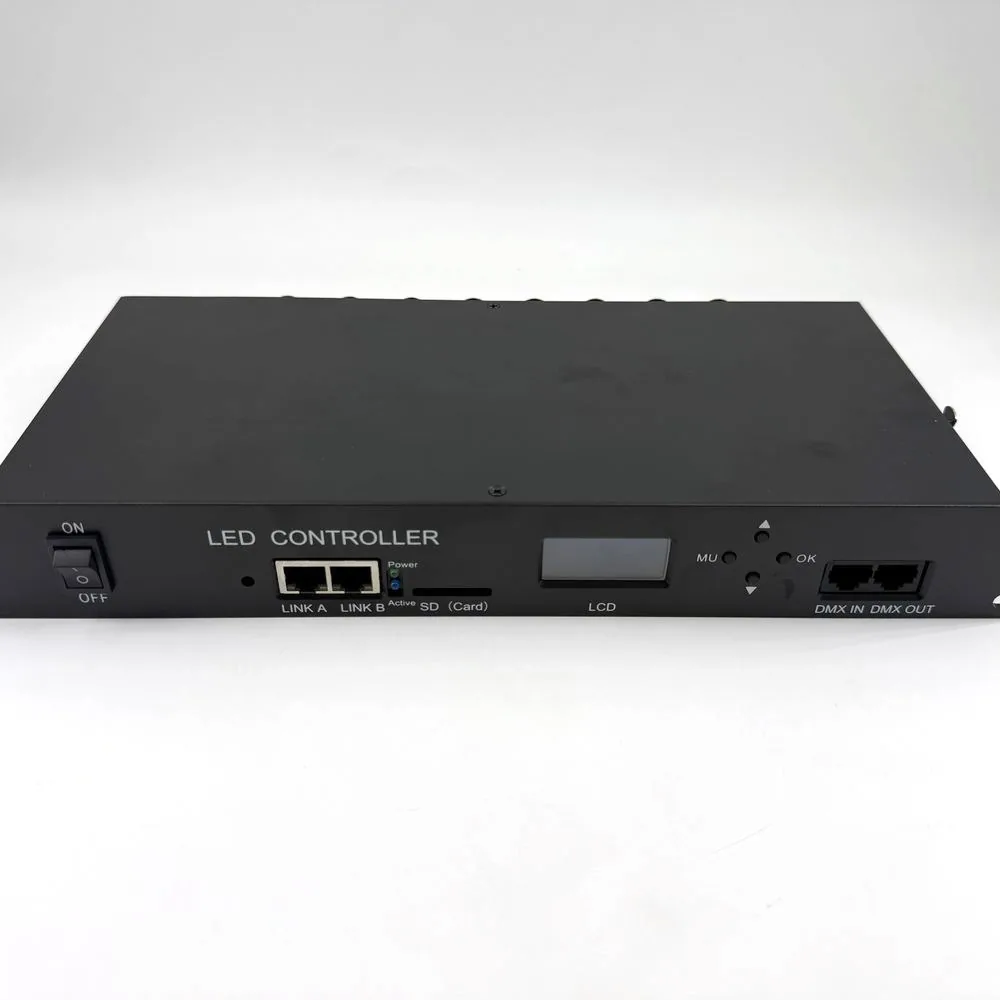

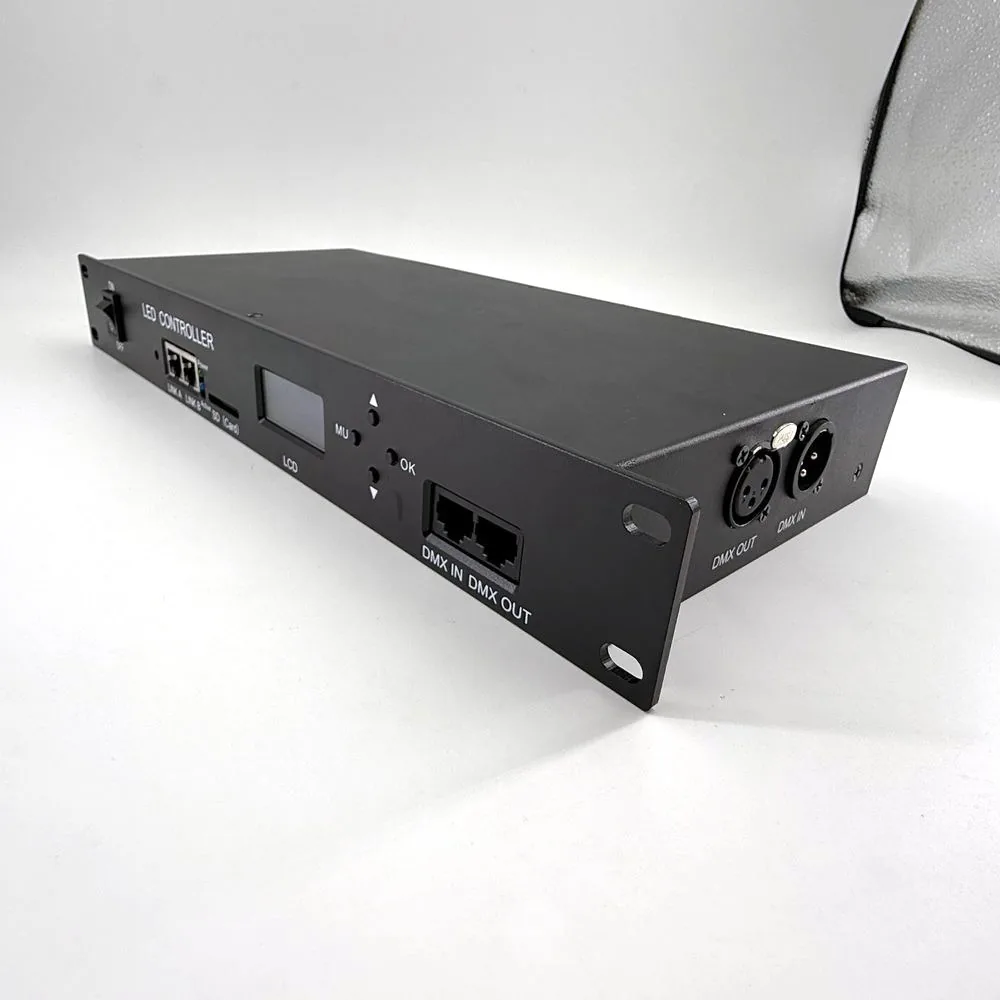

The PI-8008B is an 8-port Art-Net controller with locking 3-pin XLR connectors for touring and stage use. It works three ways: online over Art-Net / Madrix, offline from an SD card, or slaved to a DMX console.
Each port outputs DMX or SPI signal. It runs on DC12–24V and is sealed to IP45 for stage and outdoor work.
A wide −40°C to 60°C range and 100m control distance make it suited to demanding live-event rigs.
Highlighted features

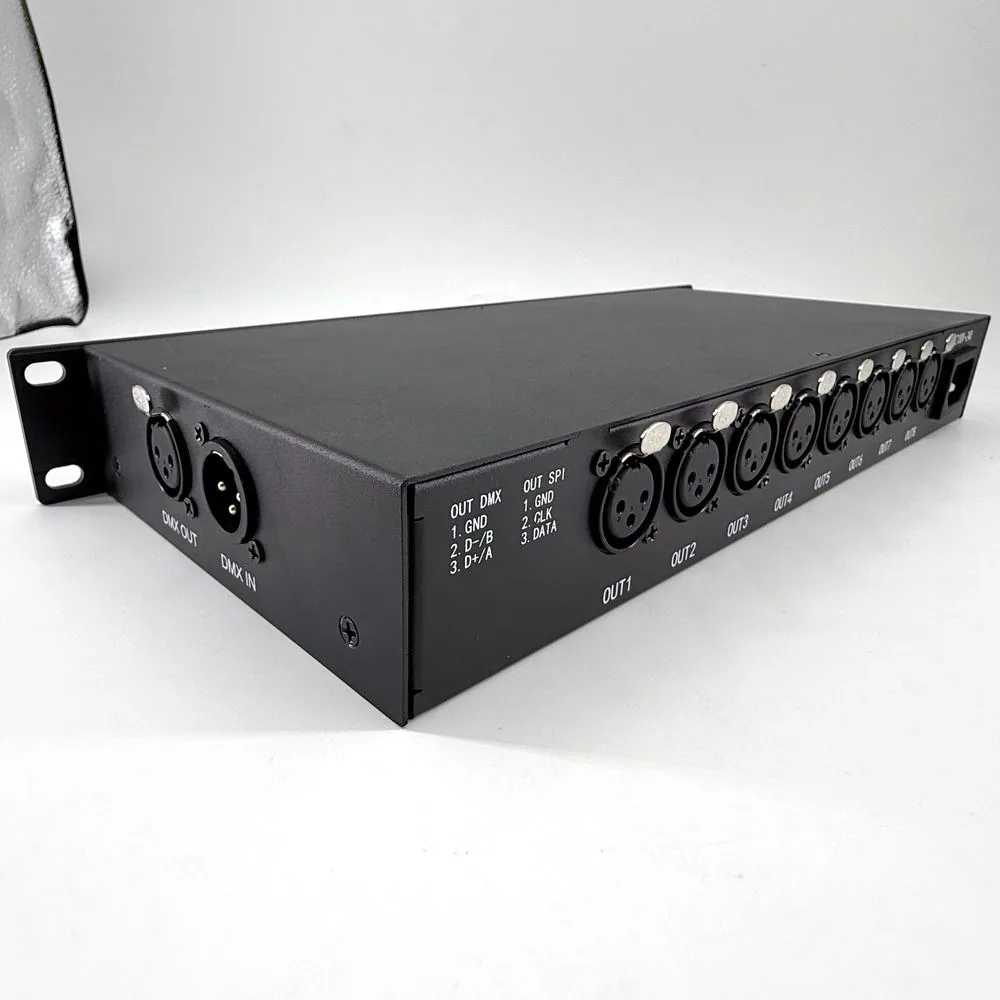

- 8 ports with locking 3-pin XLR connectors
- Three control modes — Art-Net online, SD-card offline, DMX console
- DMX or SPI signal output, Madrix-compatible
- DC12–24V input; IP45 sealing
- −40°C to 60°C working range
Technical parameters
- Output Channels
- DMX / SPI
- Control Mode
- Art-Net online / Offline SD card / DMX console
- Ports
- 8
- XLR Connector
- 3-pin XLR
- Input Voltage
- DC12–24V
- Protection Level
- IP45
- Control Distance
- ≤100m
- Working Temperature
- -40℃ ~ 60℃
- Weight
- 2KG
- Warranty
- 2 Years
Model PI-8008B — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
