DMX RGBW
LED Strip · IP68 RGBW
IP68 Addressable RGBW LED Strip
PILEDS IP68 Addressable RGBW LED Strip Light WS2811 IC 12V/24V Waterproof 4-in-1 5050 USB Connectivity Black PCB
Individually addressable full-color LED strip for pixel-mapped accent, contour and signage runs.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the IP68 Addressable RGBW LED Strip

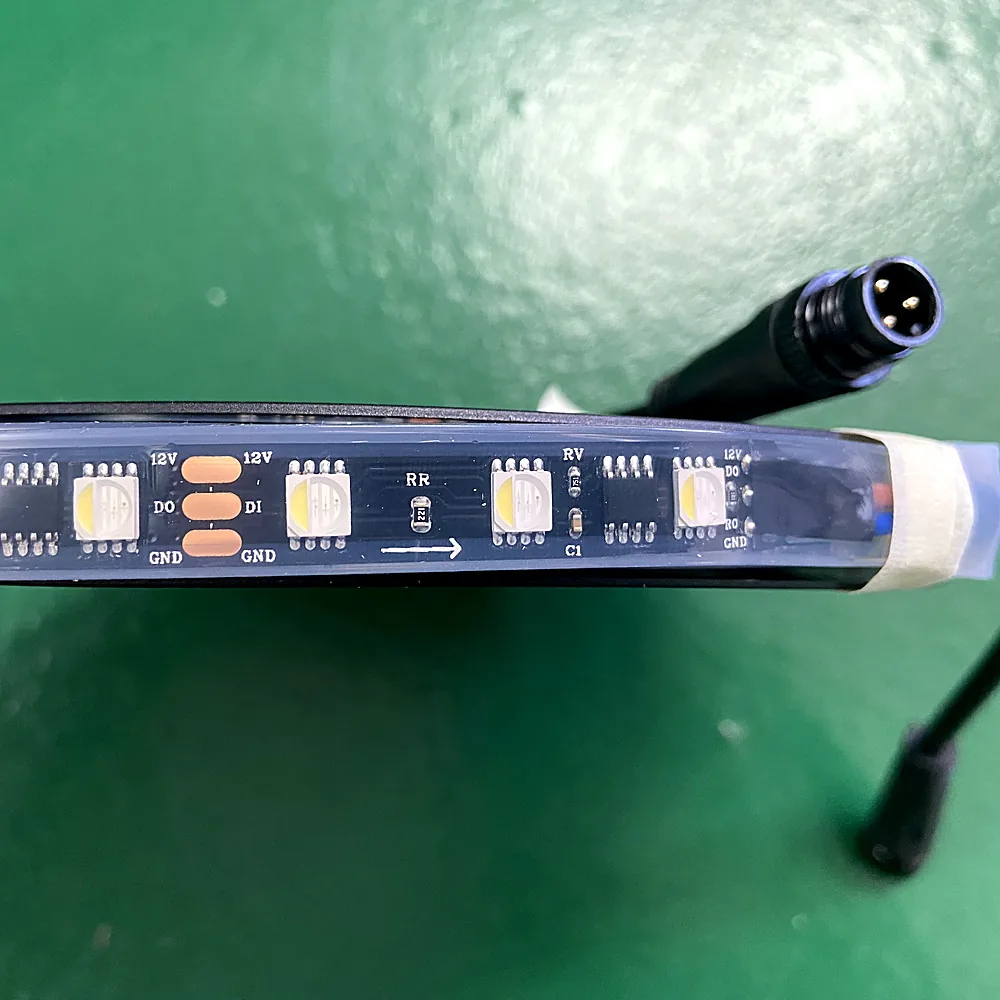

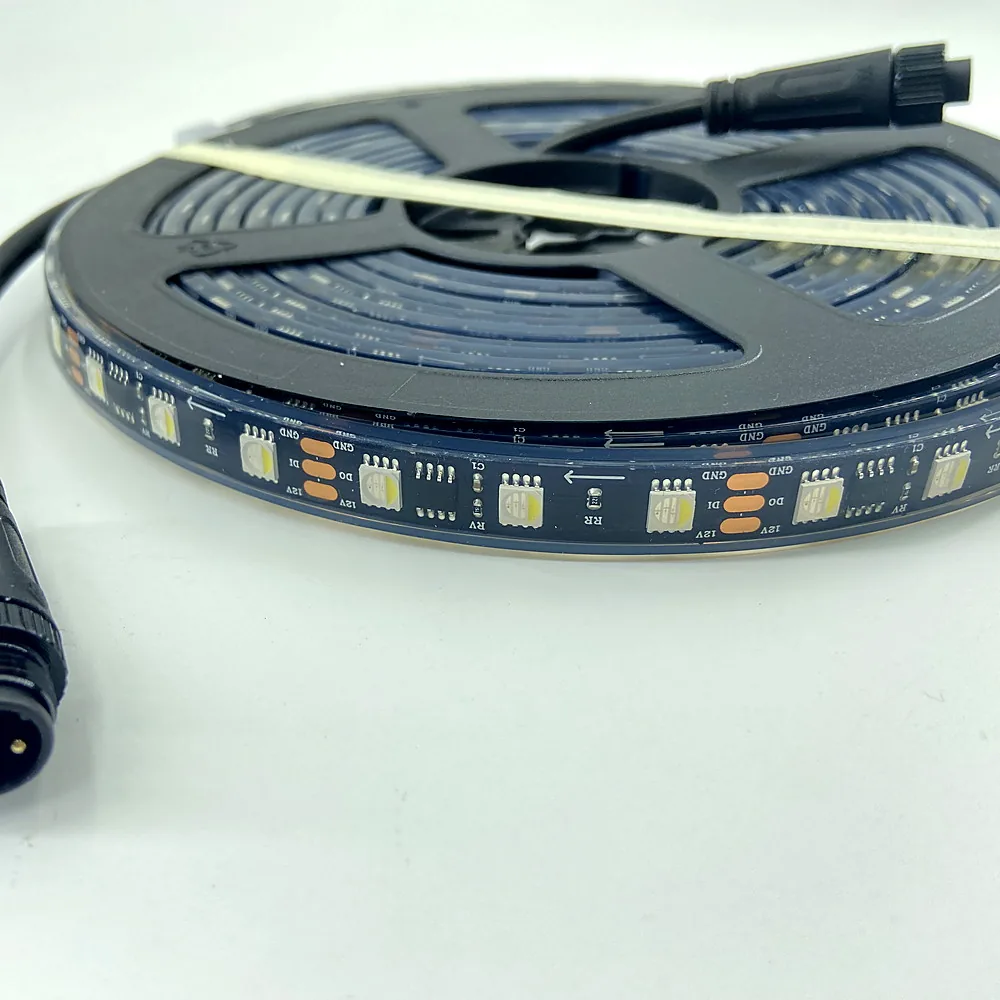

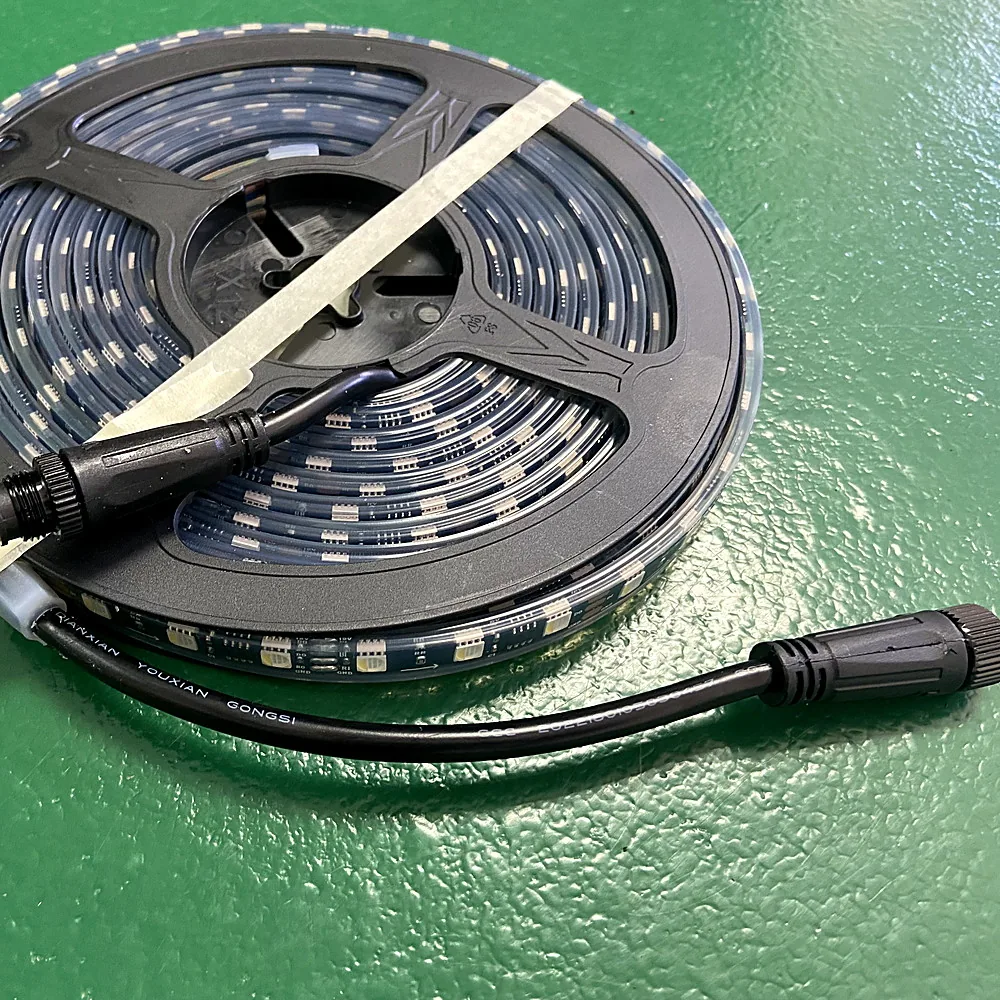

IP68 Addressable RGBW LED Strip is an addressable full-color LED strip built on SMD5050 emitters at 60/LEDs/M (60IC/M, 60pixel/M). Each LED is individually addressable, so the strip drives pixel-mapped wash, chase and contour effects.
Control is over RF/WIFI/APP. It runs on DC12V. A 120° beam angle gives an even spread across the run.
It ships in IP20/IP65/IP67/IP68 and is cuttable every 3LED and links end-to-end for longer runs. Expect a rated life of 50,000 Hours.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- Smooth colour mixing and dimming
- IP20/IP65/IP67/IP68 sealing for outdoor and wet-location use
- Cuttable every 3LED and end-to-end linkable
- 120° beam angle for even, wide coverage
Technical parameters
- Cutting Unit
- 3LED
- Working Temperature
- -20℃~50℃
- Beam Angle
- 120°
- Lifespan
- 50,000 Hours
- Control Mode
- RF/WIFI/APP
- LED Type
- SMD5050
- Size
- L5000*W10mm
- LED Quantity
- 60/LEDs/M (60IC/M, 60pixel/M)
- IP Grade
- IP20/IP65/IP67/IP68
- Voltage
- DC12V
Model IP68 RGBW — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Cut-to-length: fixtures are built to the run length your project needs.
Driver IC selection to match your controller ecosystem.
Control protocol: configurable for RF/WIFI/APP.
Ingress protection: IP20/IP65/IP67/IP68.
