PI-10060ICRGB
LED Strip · PI-10060ICRGB-50

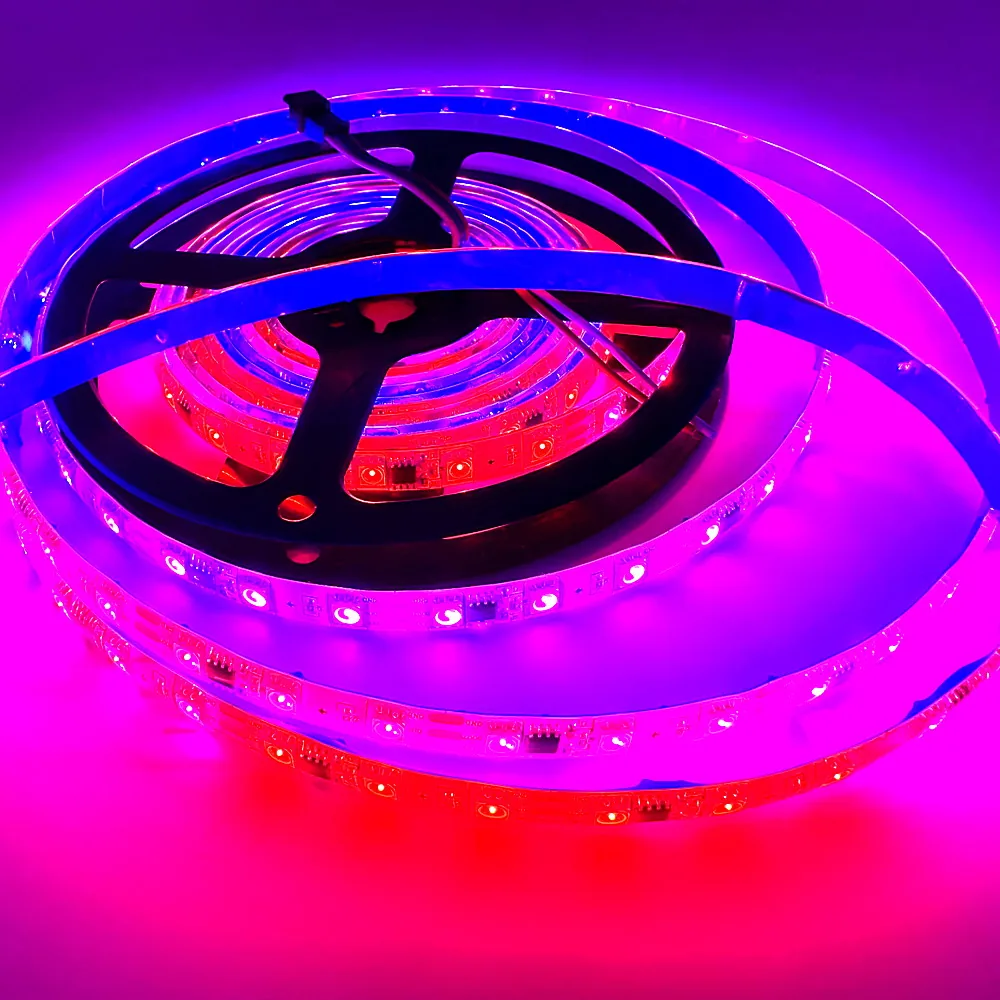

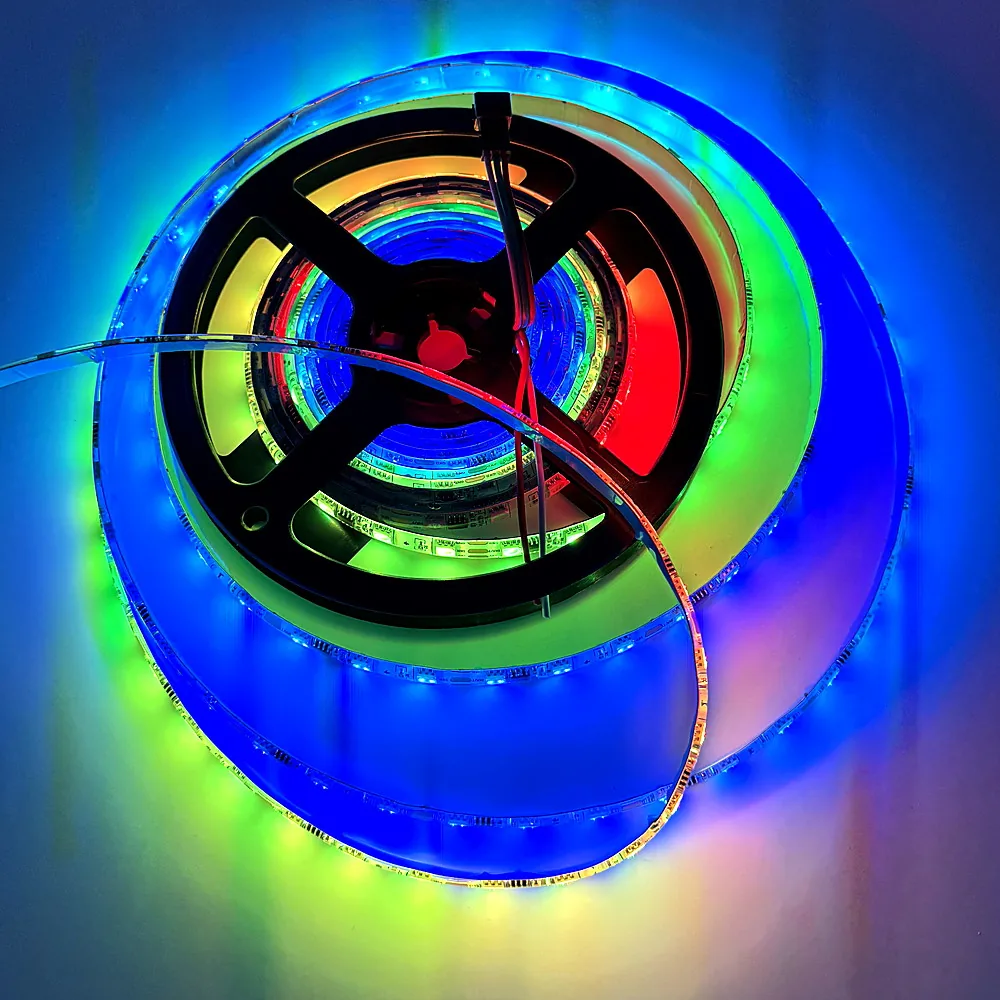

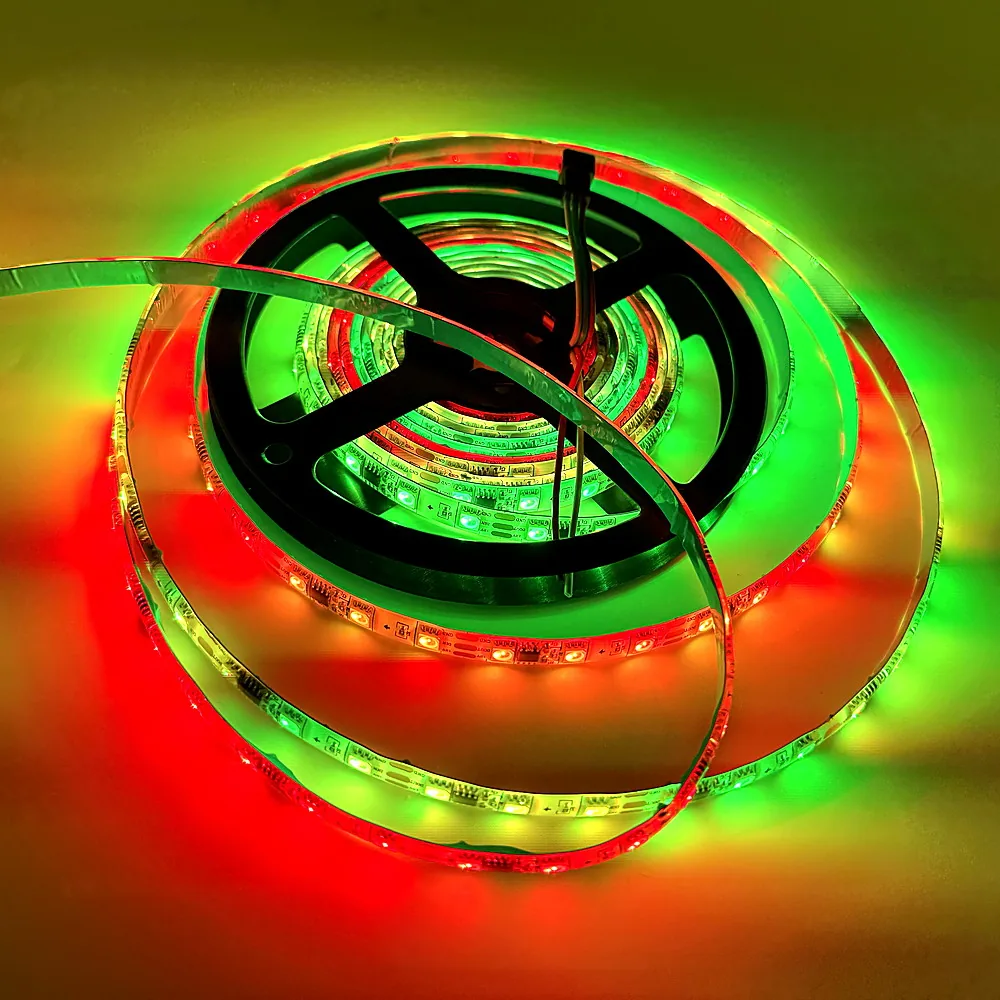

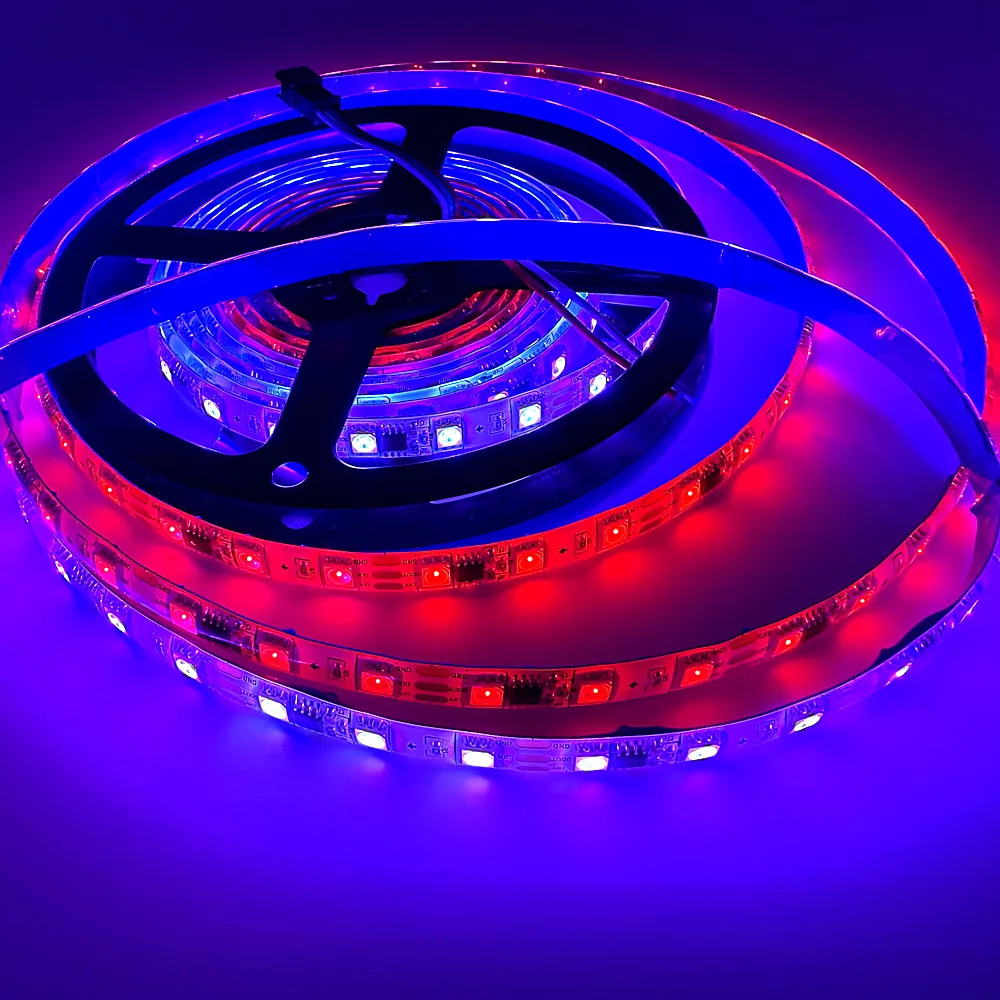

Epoxy RGB LED Strip
SPI-RGB Pixel LED Strip 12V 60LEDs WS2811 SM16703 Programmable Magic Addressable Smart LED Light Strip IP65
Individually addressable LED strip for addressable accent and contour lighting.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the Epoxy RGB LED Strip
The PI-10060ICRGB-50 is an LED strip built on SMD5050 emitters, with 60 LEDs/m. Each LED is individually addressable, so the fixture drives addressable accent runs, contour lighting and pixel-mapped surfaces.
Control is over RF, WIFI or APP, with WS2811 or SM16703 driver ICs. It runs on low-voltage DC12V. A 120° beam angle gives an even spread across the run.
It ships in IP20/IP65/IP67/IP68 options, covering indoor and wet / outdoor installs. Expect a rated life of 50,000 Hours.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- IP68-rated housing for outdoor and wet-location use
- Low-voltage DC12V operation for safe, simple installation
- 120° beam angle for even, wide coverage
- Long 50,000 Hours rated lifespan
Technical parameters
- LED Type
- SMD5050
- Driver IC
- WS2811, SM16703
- Control Mode
- RF/WIFI/APP
- LED Quantity
- 60/LEDs/M
- Beam Angle
- 120°
- Voltage
- DC12V
- IP Rating
- IP20/IP65/IP67/IP68
- Working Temperature
- -20℃~50℃
- Lifespan
- 50,000 Hours
Model PI-10060ICRGB-50 — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Driver IC selection: WS2811, SM16703 to match your controller ecosystem.
Control protocol: configurable for RF, WIFI, APP.
Ingress protection: IP20, IP65, IP67, IP68 for indoor through to wet / outdoor builds.
