PI-808SD
LED Controller · DSA Decoder
DSA DMX-to-SPI Pixel Decoder
DSA DMX512-to-SPI Pixel Decoder — DC12–24V for RGB LED Strip
DMX512-to-SPI pixel decoder for addressable RGB strip — compatible with WS2811, WS2801, UCS1903 and more.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the DSA DMX-to-SPI Pixel Decoder

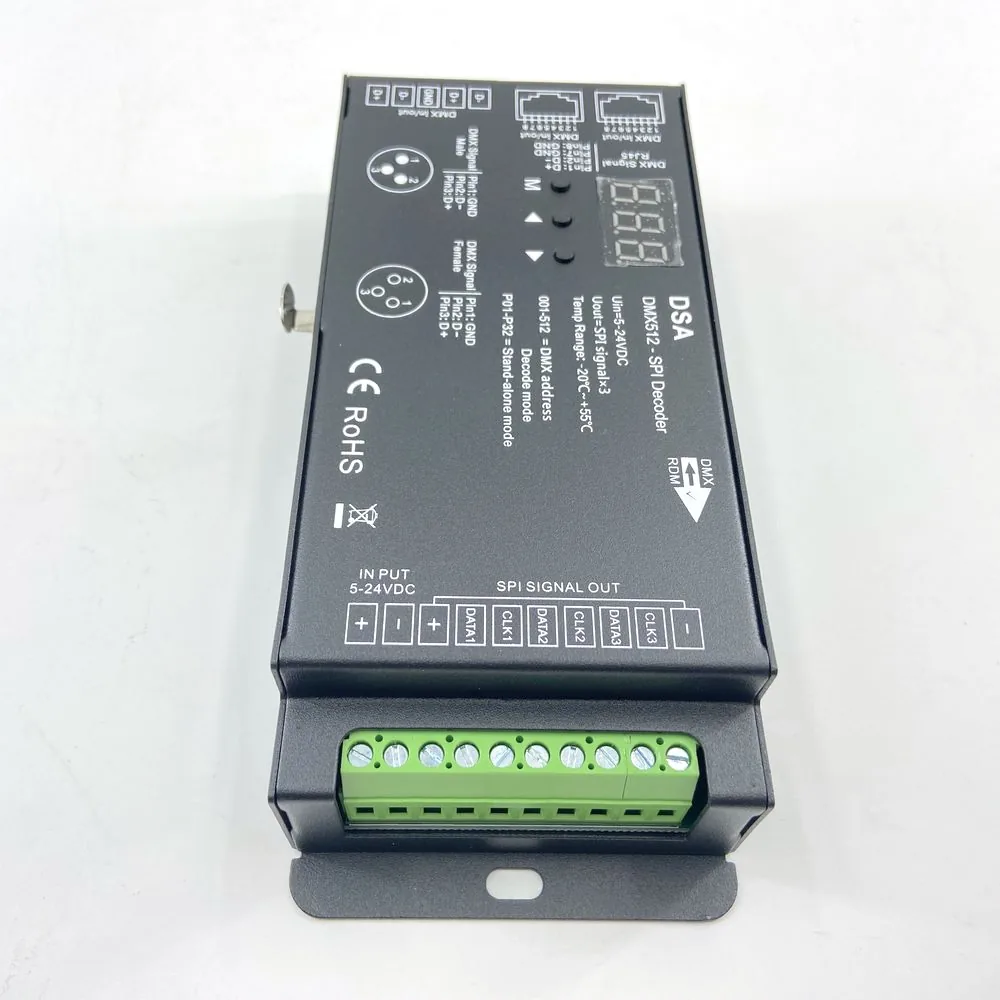

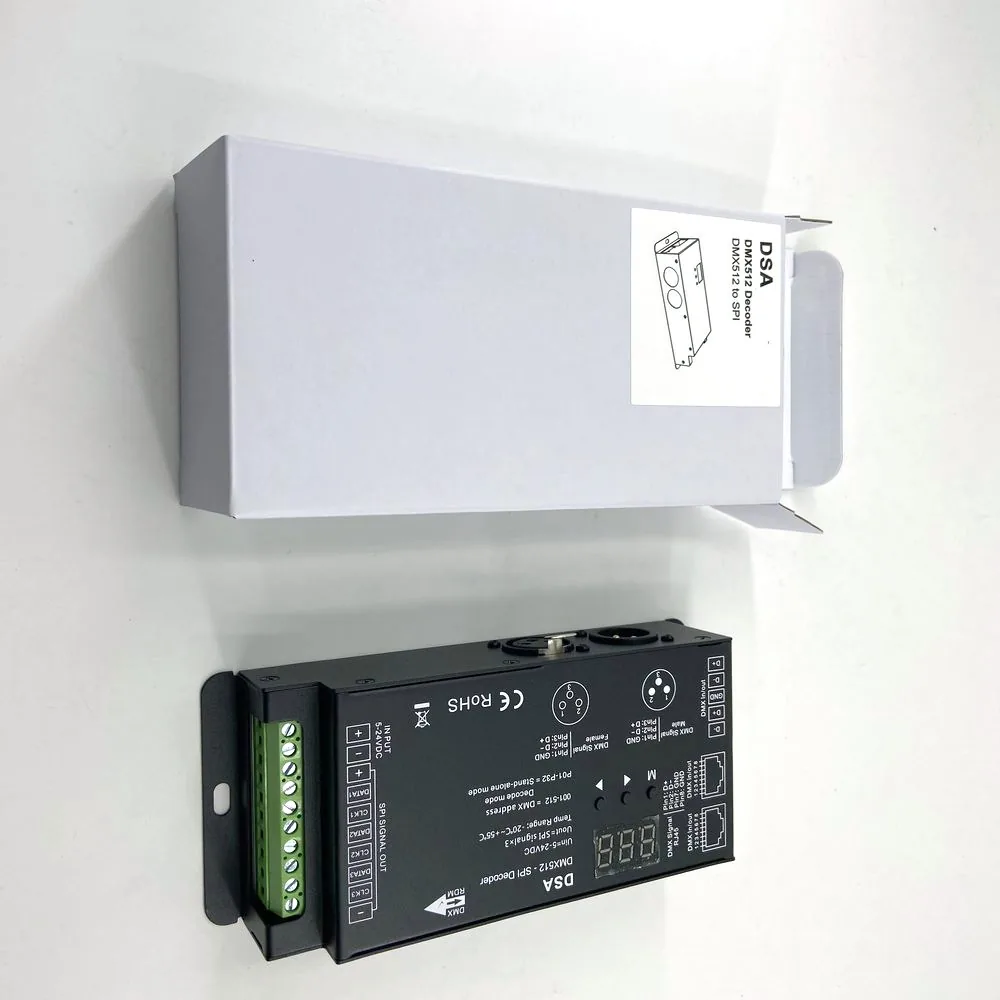

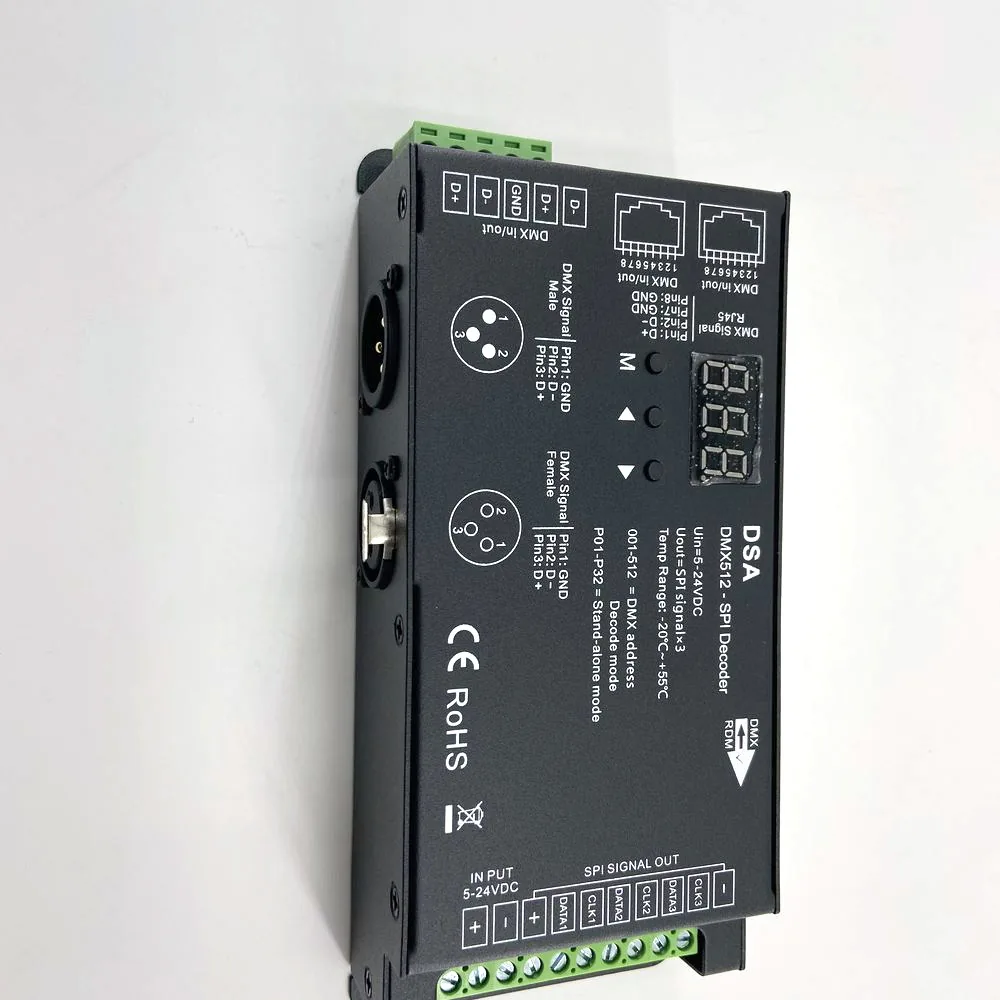

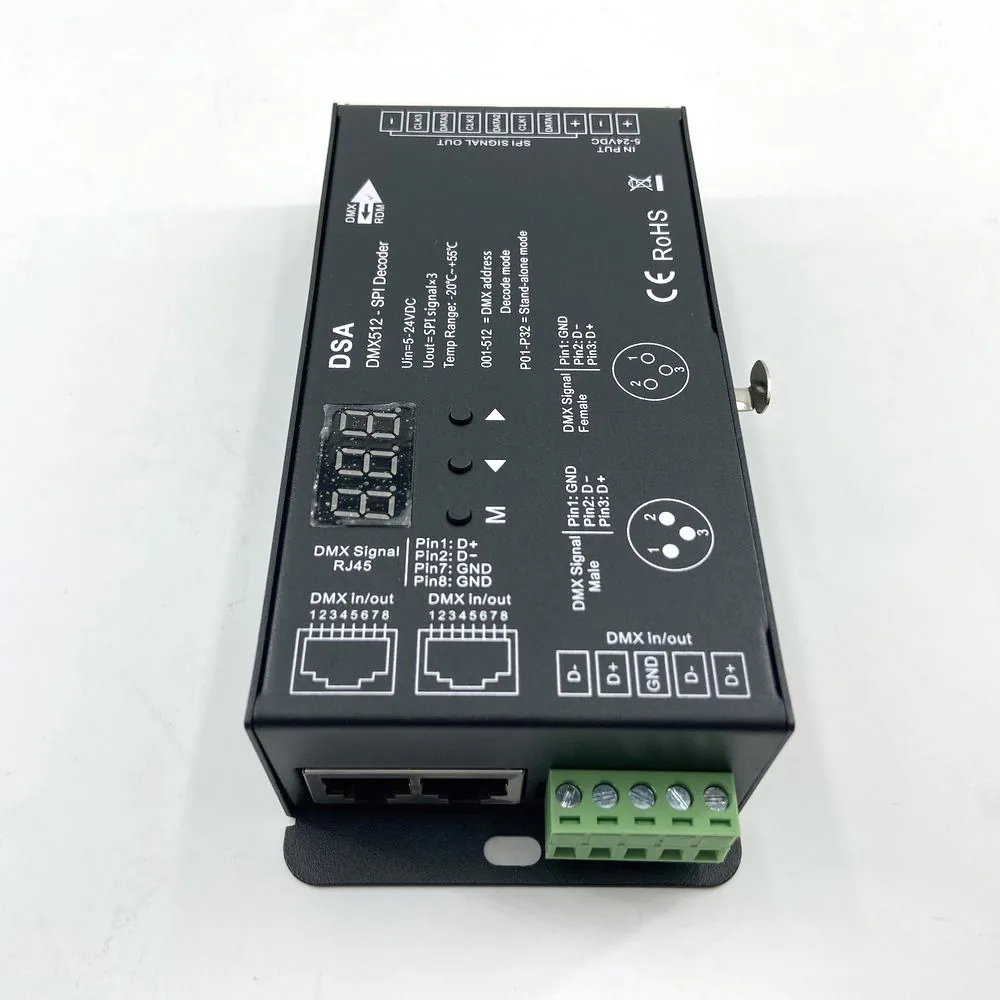

The DSA decoder converts a DMX512 signal into SPI data for addressable RGB pixel strip and modules.
It supports a wide range of driver ICs — LPD6803, TM1803 / TM1809 / TM1812, UCS1903, WS2811, WS2801, TLS3001 / TLS3008 and P9813 — so it matches most pixel ecosystems. Output is rated to 9A on a 4-pin connector.
It runs on DC12–24V, chains in master–slave mode, and ships in an IP20 housing measuring 200 × 50 × 30 mm.
Highlighted features
- Converts DMX512 to SPI for addressable RGB strip
- Supports WS2811, WS2801, UCS1903, LPD6803, TM180x, TLS300x, P9813
- 9A output on 4-pin connector
- DC12–24V input; master–slave linking
- Compact 200 × 50 × 30 mm IP20 housing
Technical parameters
- Function
- DMX512 → SPI decoder
- IC Support
- LPD6803, TM1803/1809/1812, UCS1903, WS2811, WS2801, TLS3001/3008, P9813
- Max Output Power
- 9A
- Control Mode
- Master–Slave
- DMX Connector
- 4 Pin
- Input Voltage
- DC12–24V
- Protection Level
- IP20
- Product Size
- 200 × 50 × 30 mm
- Working Temperature
- -20℃ ~ 60℃
- Warranty
- 2 Years
Model DSA Decoder — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
