LED Neon Strip · PI-0612RGBNH

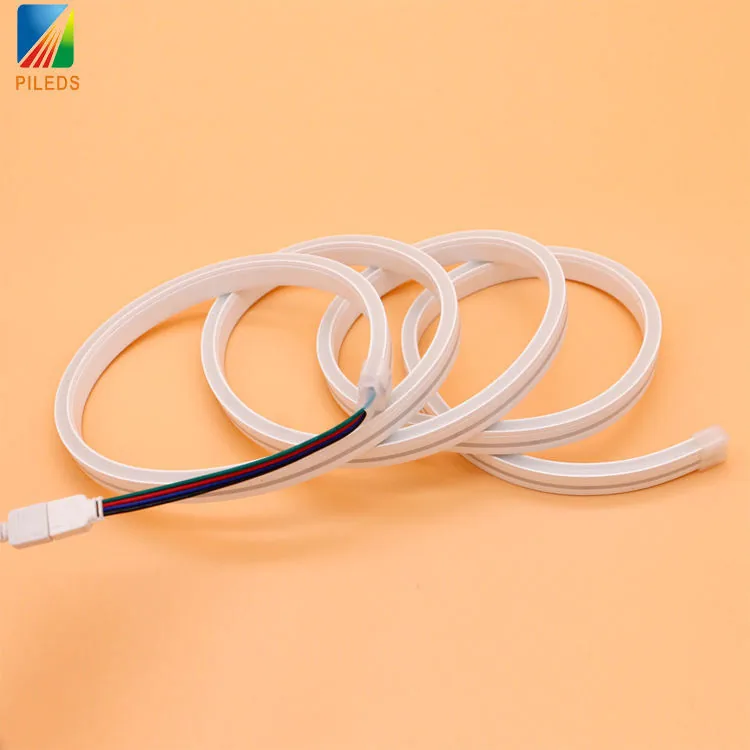

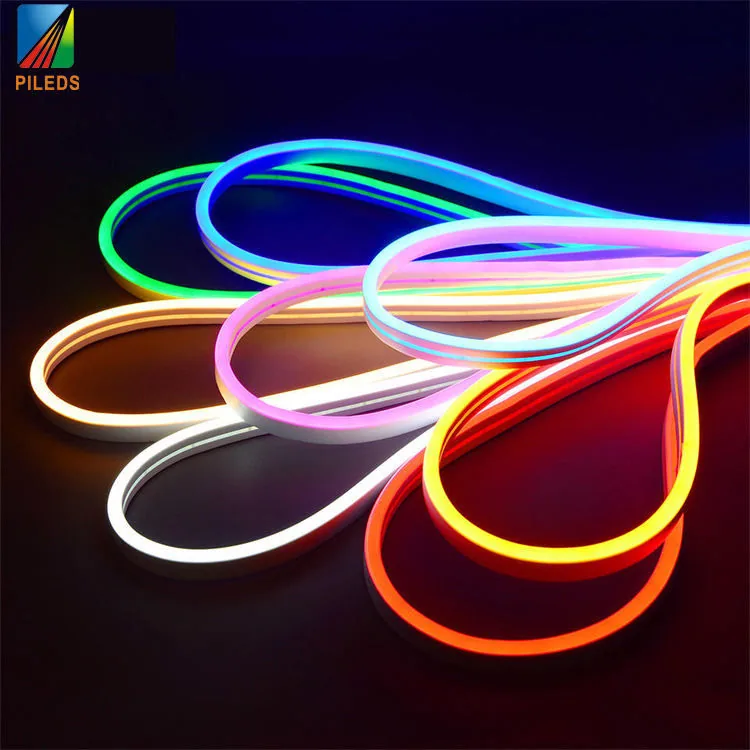

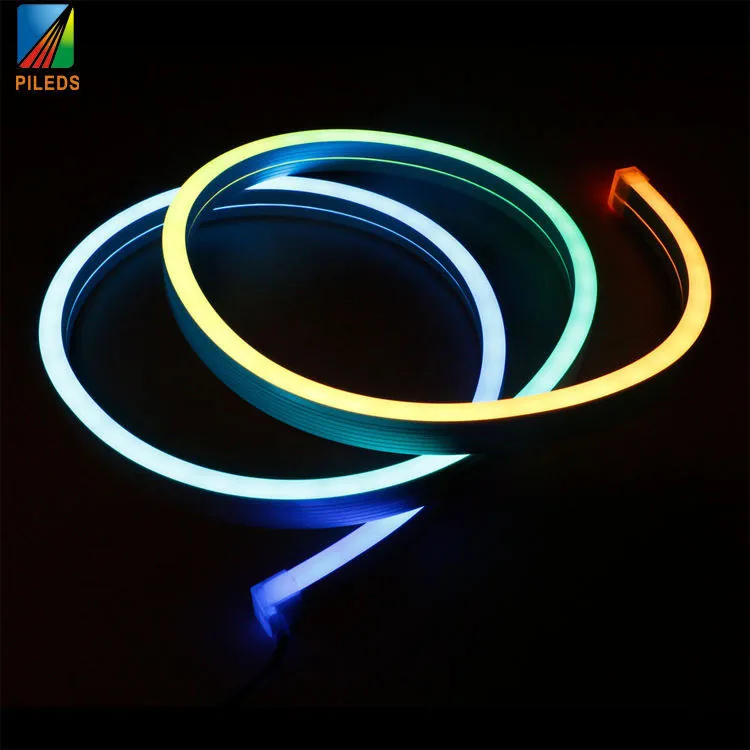

12*06MM RGBW RGB LED Neon Strip
IP65 Silicon Flexible LED Neon Strip Light 2835 SMD 12V 6X12mm 120leds/M
Full-color RGBW LED neon strip for seamless neon-style contour lines.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 12*06MM RGBW RGB LED Neon Strip
12mm RGBW LED Neon Strip (PI-0612RGBNH) is a full-color RGBW LED neon strip built on SMD5050/SMD2835 emitters, with 30 LEDs/m/60 LEDs/m/120 LEDs/m/240 LEDs/m. It is suited to continuous neon-style contour lines for signage, facades and interiors.
It runs on 12V/24V and draws 7.2W/m/14.4W/m/28.8W/m/57.6W/m. A 120° beam angle gives an even spread across the run.
The housing is made of Flexible PVC. It ships in IP20/IP65/IP67/IP68 options, covering indoor and wet / outdoor installs. Expect a rated life of 50,000 Hours.
Highlighted features
- RGBW colour mixing with smooth dimming and gradients
- IP68-rated housing for outdoor and wet-location use
- 120° beam angle for even, wide coverage
- Long 50,000 Hours rated lifespan
Technical parameters
- LED Type
- SMD5050/SMD2835
- Color
- RGB/RGBW/Warm White/Cool White/Yellow/Blue/Green/Red
- LED Quantity
- 30LEDs/m/60LEDs/m/120LEDs/m/240LEDs/m
- Beam Angle
- 120°
- Power
- 7.2W/m/14.4W/m/28.8W/m/57.6W/m
- Voltage
- 12V/24V
- Length
- 2m/3m/4m/5m/6m/7m/8m/9m/10m/15m/20m/25m/30m/50m/100m
- IP Rating
- IP20/IP65/IP67/IP68
- Working Temperature
- -20℃~+50℃
- Material
- Flexible PVC
- Lifespan
- 50,000 Hours
- Warranty
- 2 Years
Model PI-0612RGBNH — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Cut-to-length: fixtures are built to the run length your project needs.
Colour options: choose from RGB, RGBW, Warm White, Cool White, Yellow, Blue, Green, Red.
Ingress protection: IP20, IP65, IP67, IP68 for indoor through to wet / outdoor builds.
Voltage options: 12V, 24V to suit your power infrastructure.

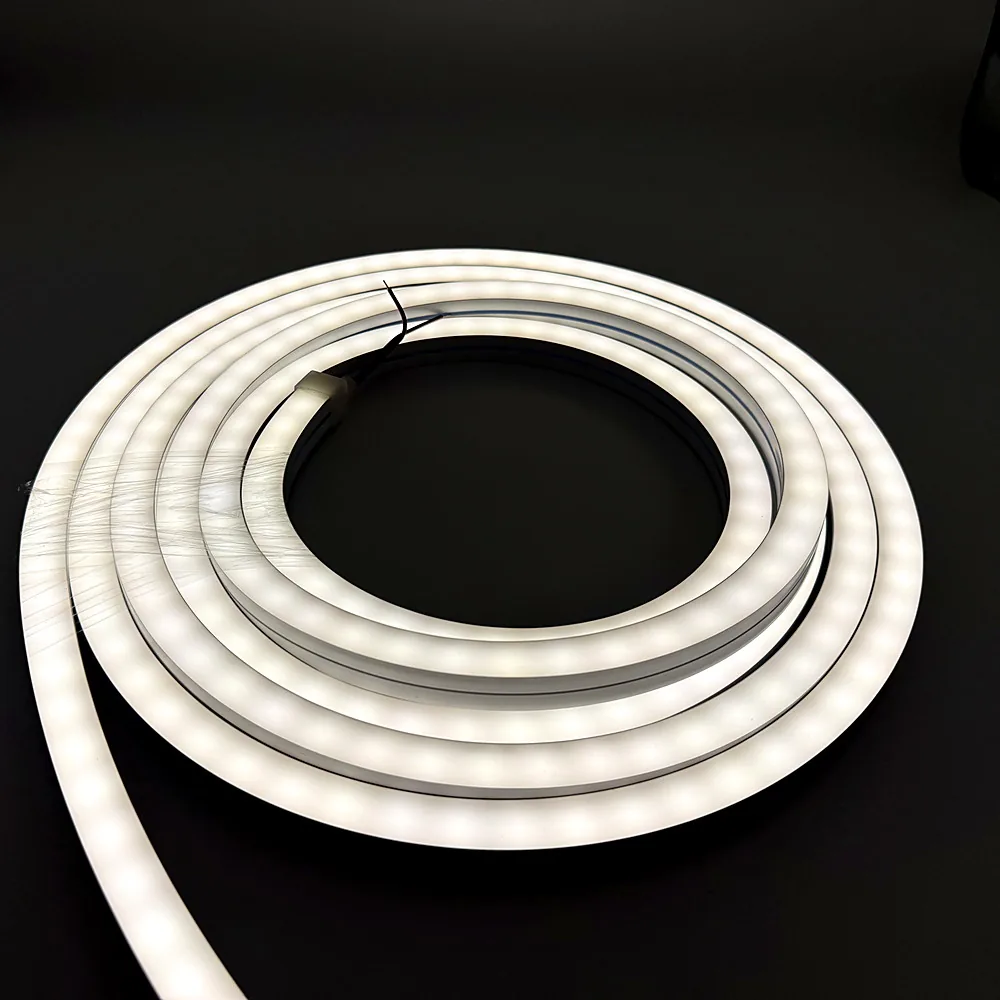

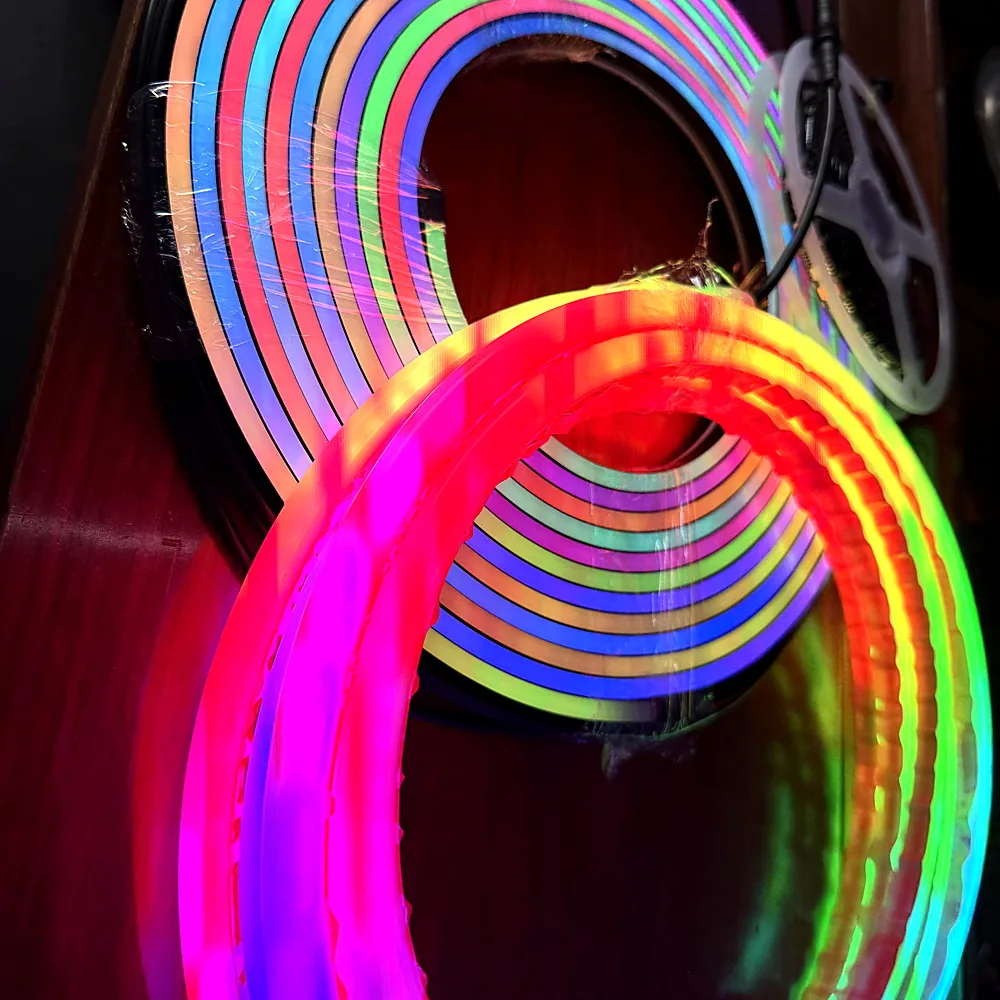

Other LED Neon Strip models

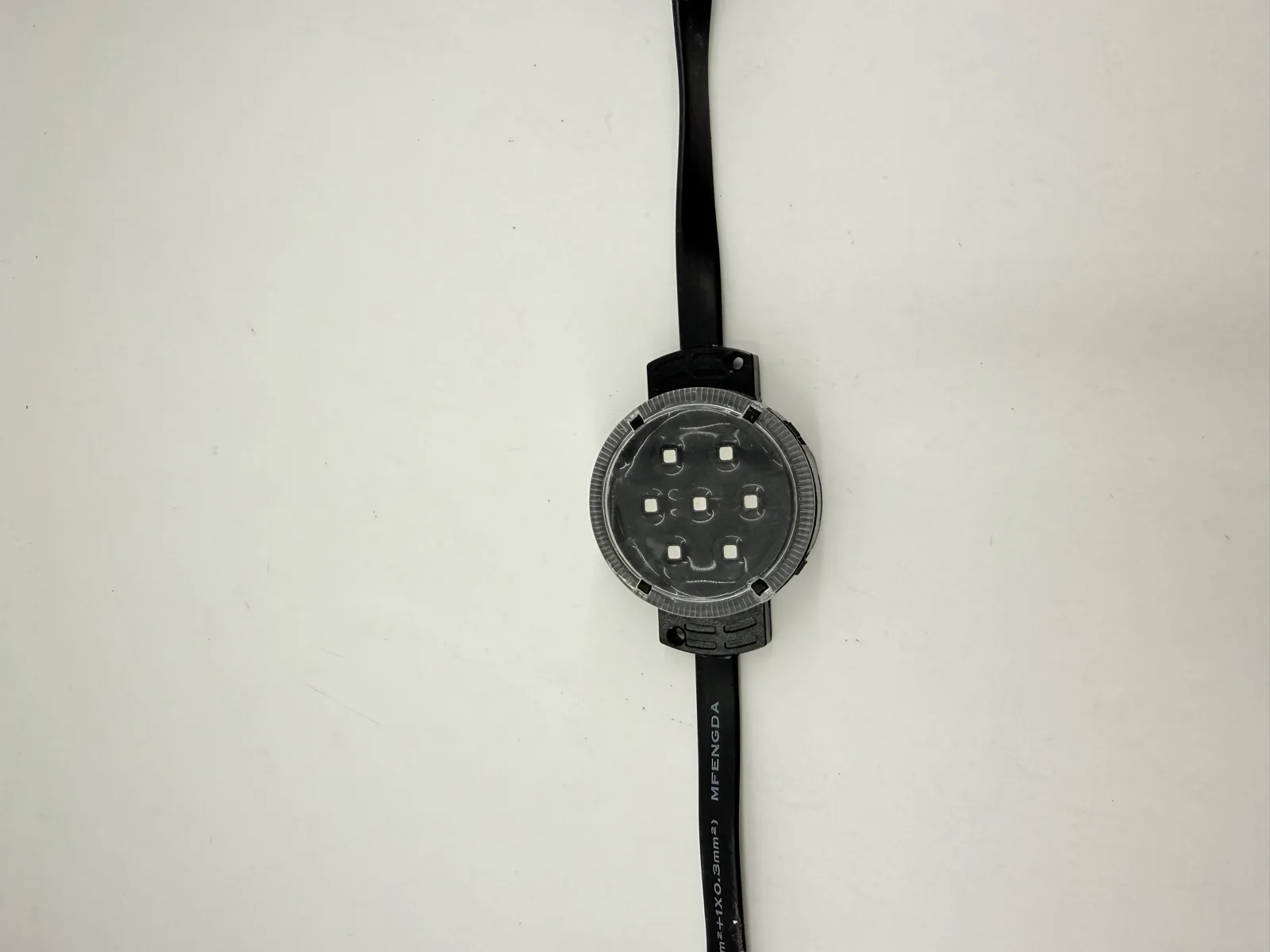

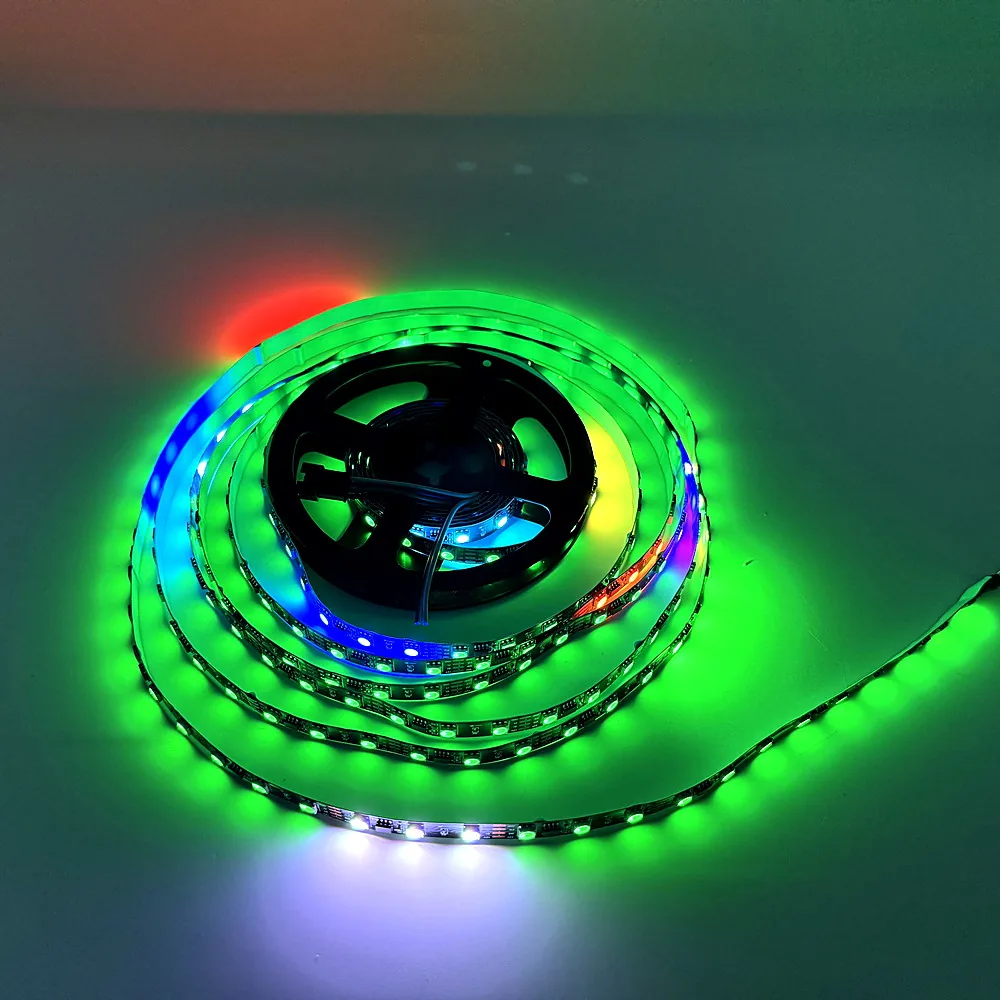

Related pixel light lines
