PI-10048ICRGB
LED Pixel Bar · PI-10048ICRGB
Linkable RGB LED Pixel Bar · SPI
DC12V/DC24V/DC36V RGB Digital Pixel LED Strip Light IP67 Waterproof Aluminum Alloy 48 LEDs/m 20m Length SPI/Dmx512 Control Beam Lights Hotel
Individually addressable LED pixel bar for pixel-mapped stage, club and event lighting.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the Linkable RGB LED Pixel Bar · SPI

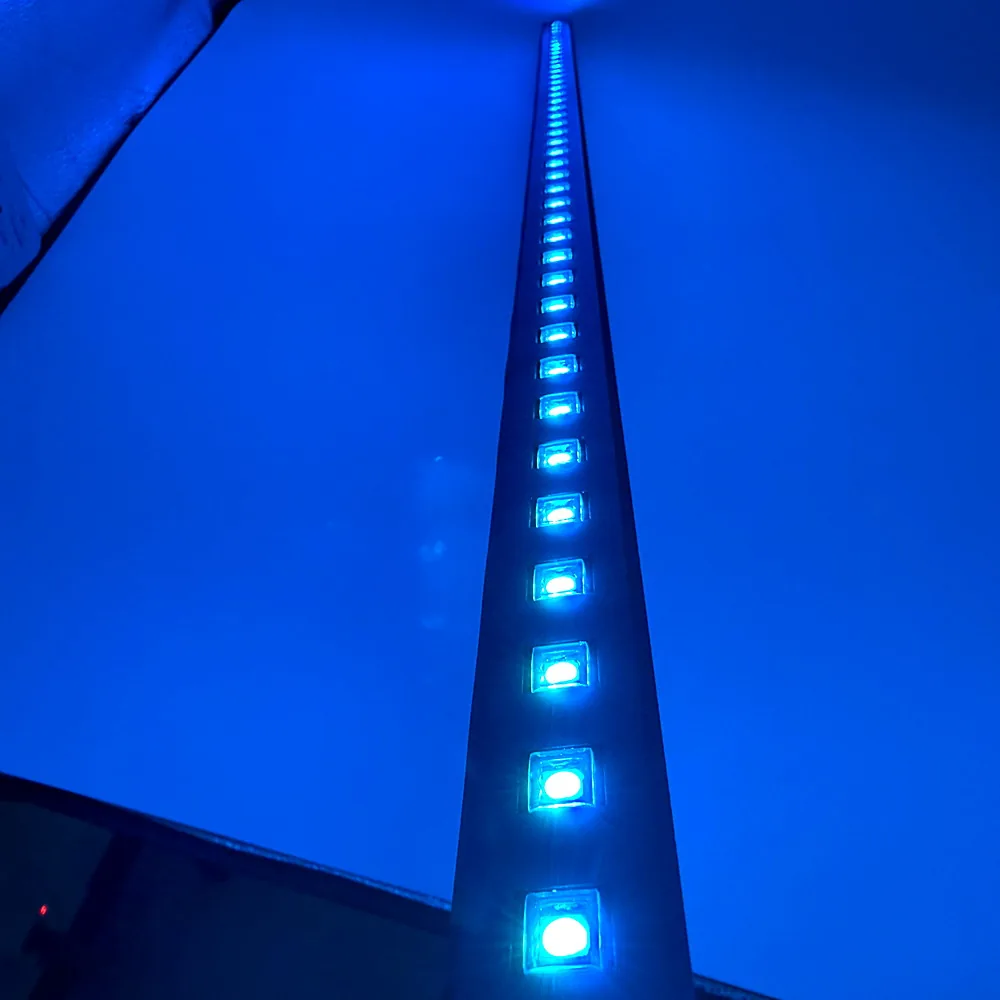

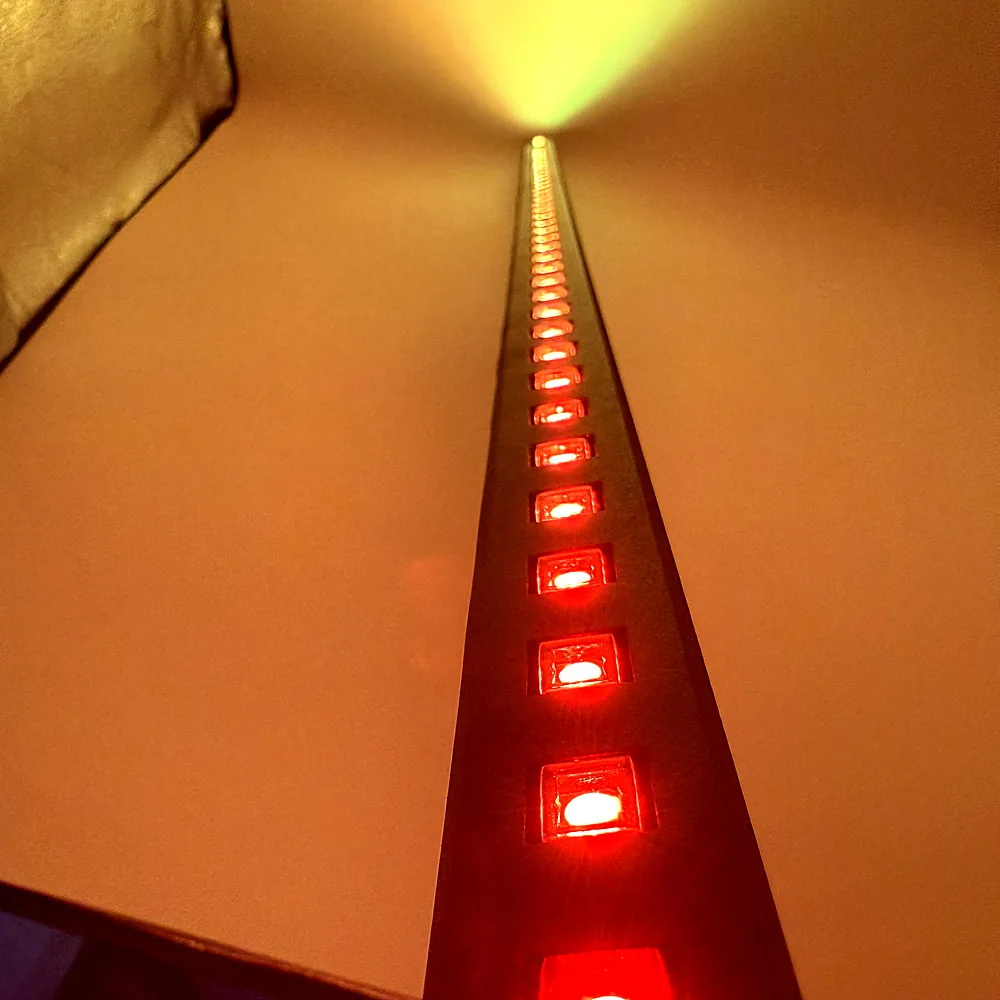

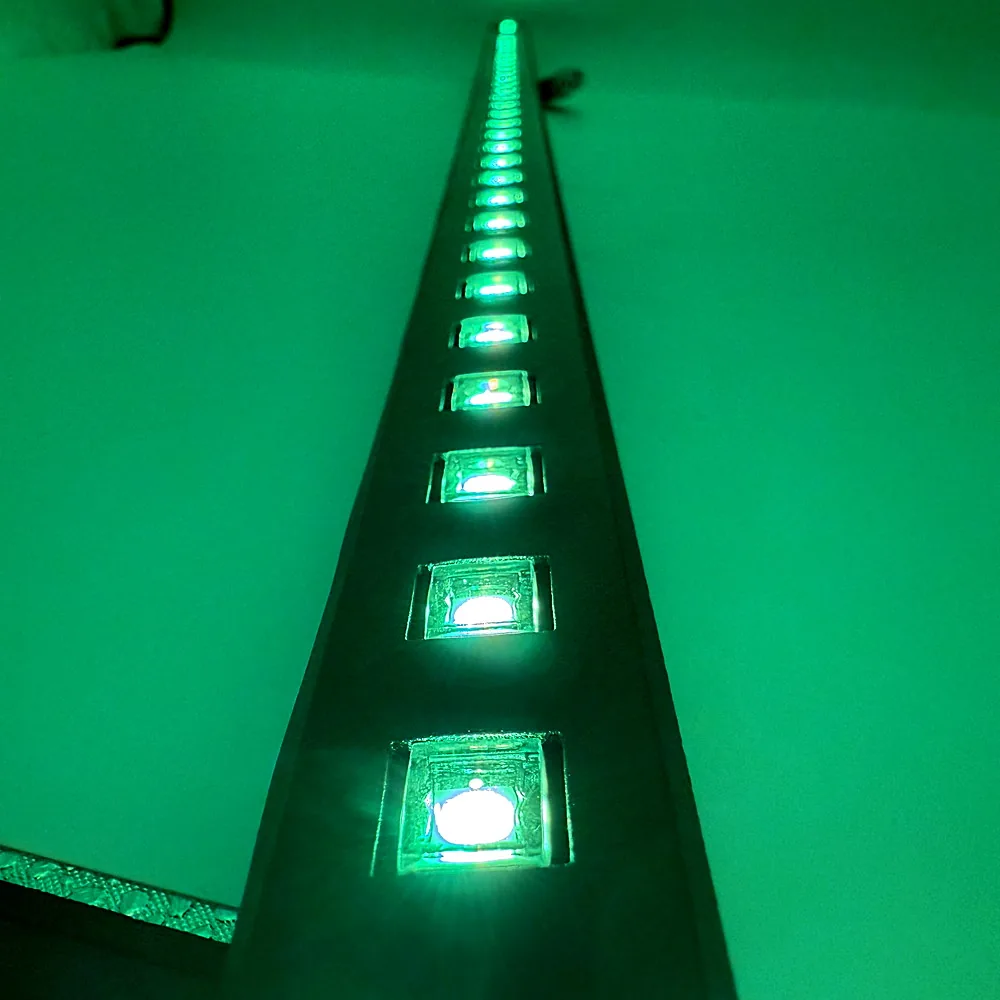

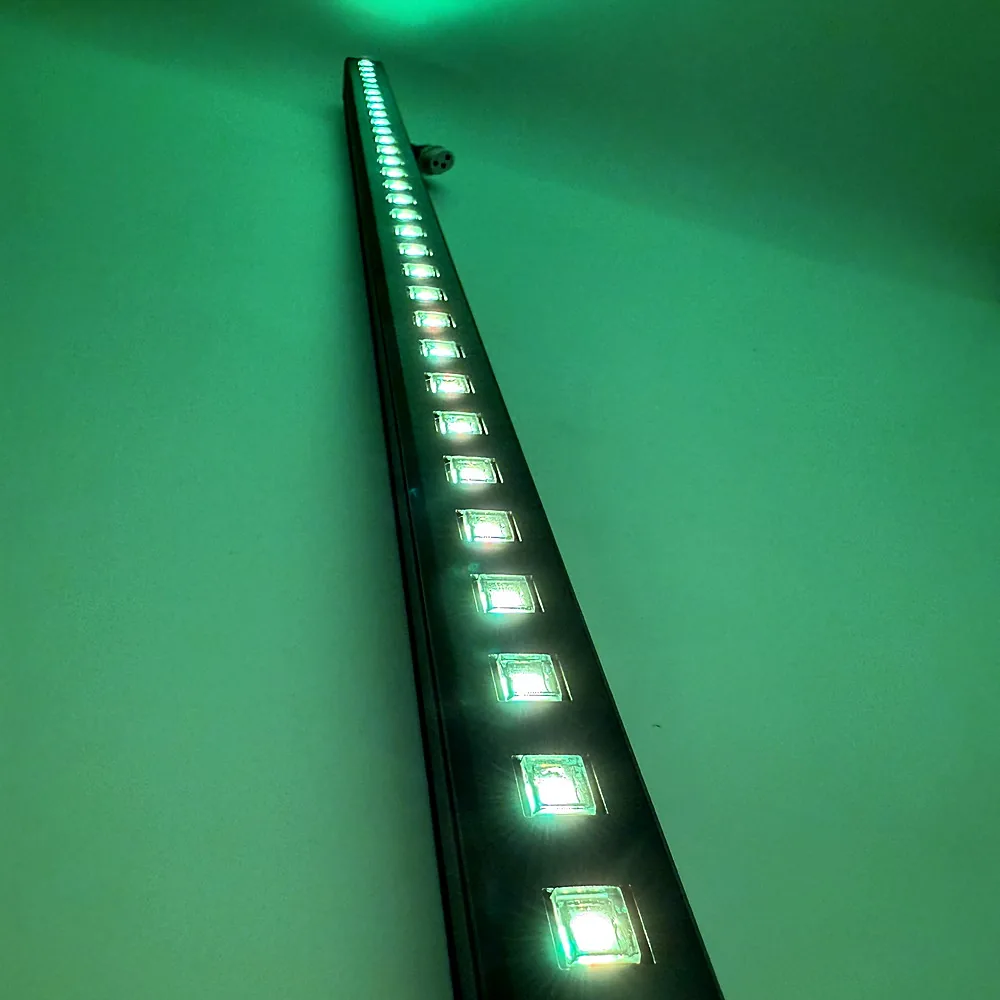

The PI-10048ICRGB is an LED pixel bar with 48 LEDs/m. Each LED is individually addressable, so the fixture drives pixel-mapped wash, beam and tube effects on stage and event rigs.
Control is over SPI or DMX. It draws 14W/meter. A 180° beam angle gives an even spread across the run.
An IP67 rating makes it suitable for outdoor and wet-location use. It is cuttable every 3 LEDs and links end-to-end for longer runs.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- IP67-rated housing for outdoor and wet-location use
- Cuttable and end-to-end linkable for made-to-length runs
- 180° beam angle for even, wide coverage
Technical parameters
- Control Mode
- SPI / DMX
- Pixel
- 16pixels/Meter
- LED Quantity
- 48 LEDs/meter
- Beam Angle
- 180°
- Power Consumption
- 14W/meter
- Voltage
- DC12V/DC24V/DC36V
- Length
- 1M / 0.5M
- Cutting Unit
- Every 3 LEDs
- IP Rating
- IP67
- Working Temperature
- -40℃ ~ 60℃
- Warranty
- 2 Years
Model PI-10048ICRGB — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Cut-to-length: fixtures are built to the run length your project needs.
Control protocol: configurable for SPI, DMX.
