PI-10060RGBW
LED Pixel Bar · PI-10060ICRGB
Milky RGB LED Pixel Bar
ODM Stage Rental LED Pixel Bar DMX/SPI Digital Tube RGB 12/24V Addressable RGB LED Bar Clamp for Music Liver Stage
Individually addressable full-color RGB LED pixel bar for pixel-mapped stage, club and event lighting.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the Milky RGB LED Pixel Bar

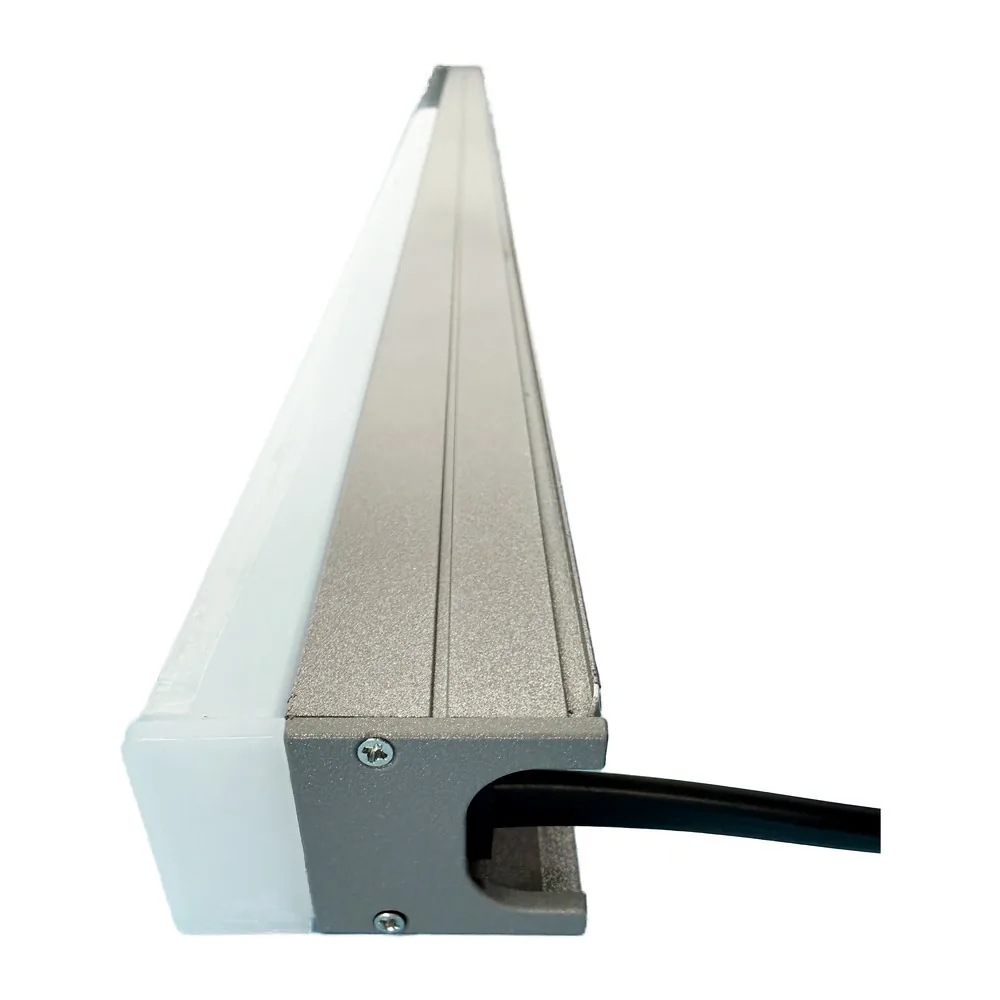

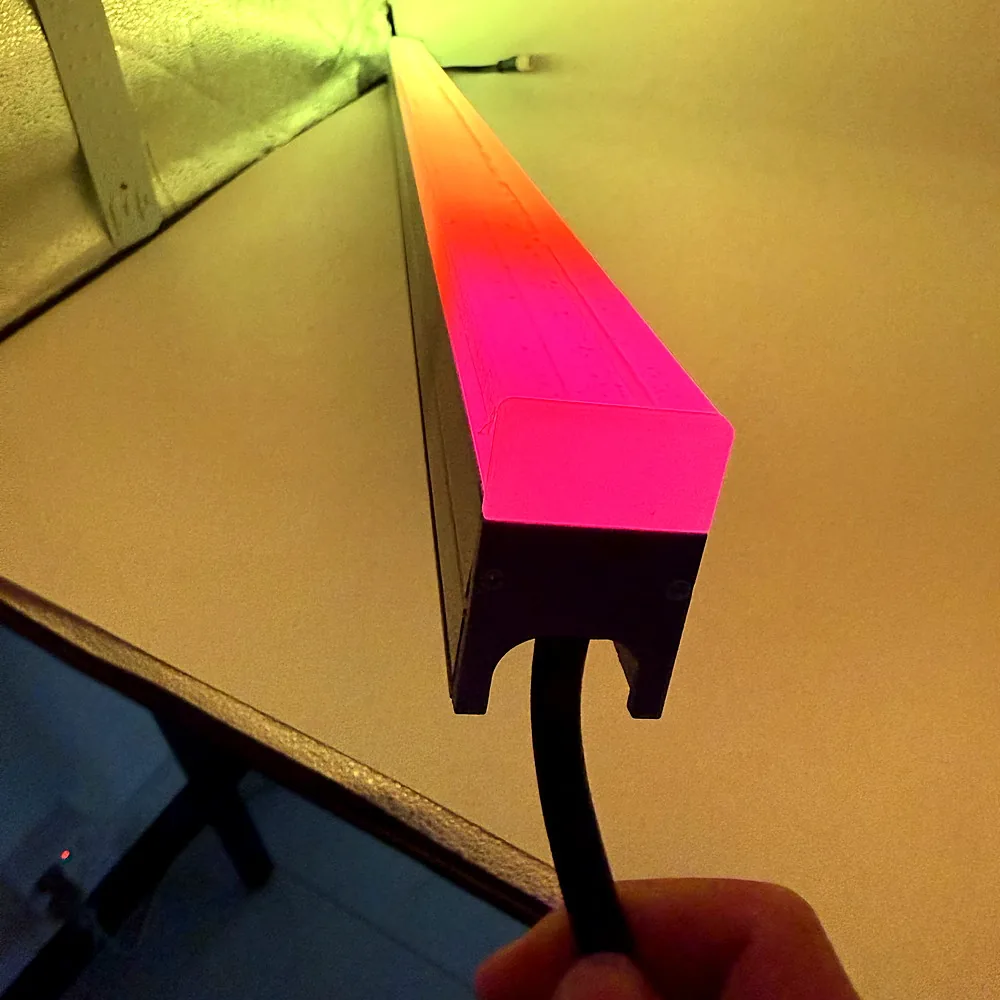

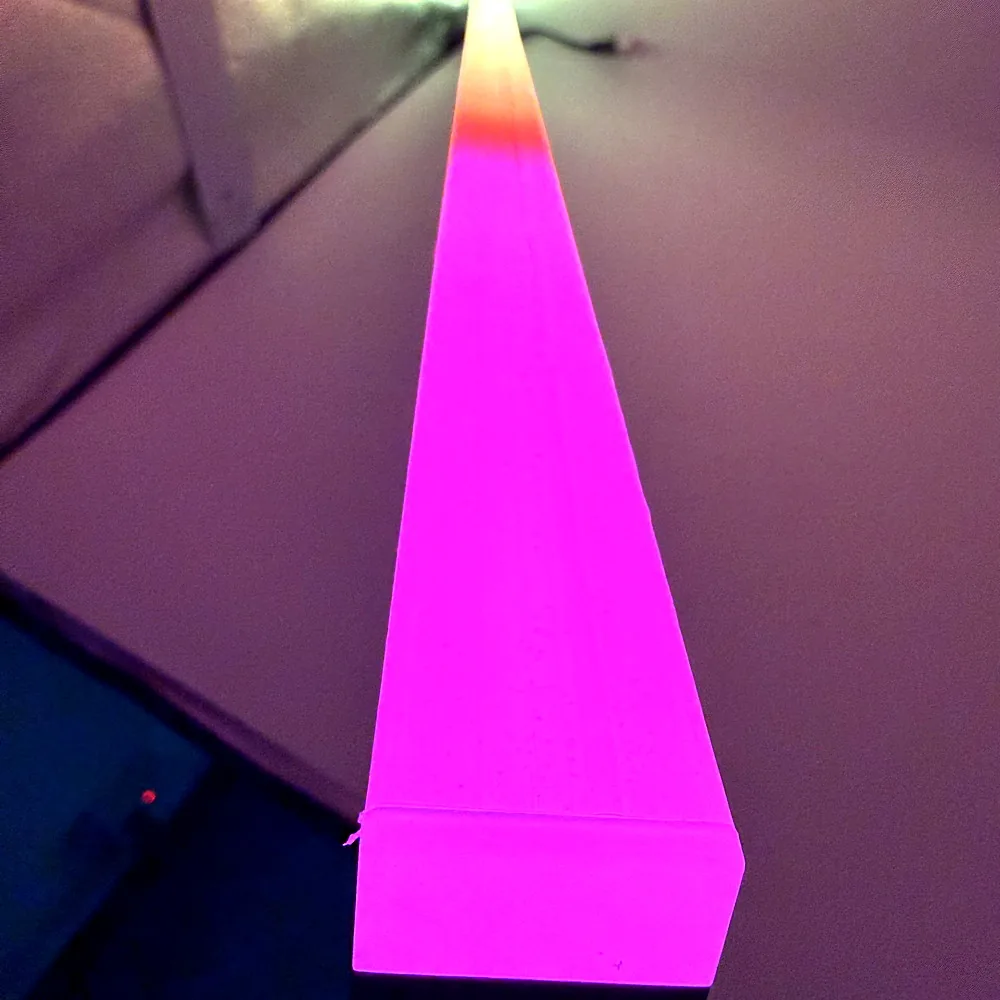

The PI-10060ICRGB is a full-color RGB LED pixel bar built on SMD 5050RGB emitters, with 60 LEDs/m. Each LED is individually addressable, so the fixture drives pixel-mapped wash, beam and tube effects on stage and event rigs.
It runs on low-voltage DC12V and draws 14W/meter.
It is cuttable every 3 LEDs and links end-to-end for longer runs.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- RGBW colour mixing with smooth dimming and gradients
- Low-voltage DC12V operation for safe, simple installation
- Cuttable and end-to-end linkable for made-to-length runs
Technical parameters
- LED Type
- SMD 5050RGB
- Color
- IC RGBW/ IC RGB
- Pixels
- 60pixels/Meter
- LED Quantity
- 60 LEDs/meter
- Power Consumption
- 14W/meter
- Voltage
- DC12V
- Length
- 2M/1M/0.5M
- Cutting Unit
- Every 3 LEDs
- Working Temperature
- -40℃~60℃
- Warranty
- 2 Years
Model PI-10060ICRGB — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Cut-to-length: fixtures are built to the run length your project needs.
Colour options: choose from IC RGBW, IC RGB.
