PI-500ICRGB
LED Point Light · PI-100RGBDG
100mm Diamond RGB LED Point Light
100mm Programmable LED Point Light , DMX Pixel RGB Light Addressable
Full-color RGB LED point light for pixel facade, signage and media-architecture arrays.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 100mm Diamond RGB LED Point Light

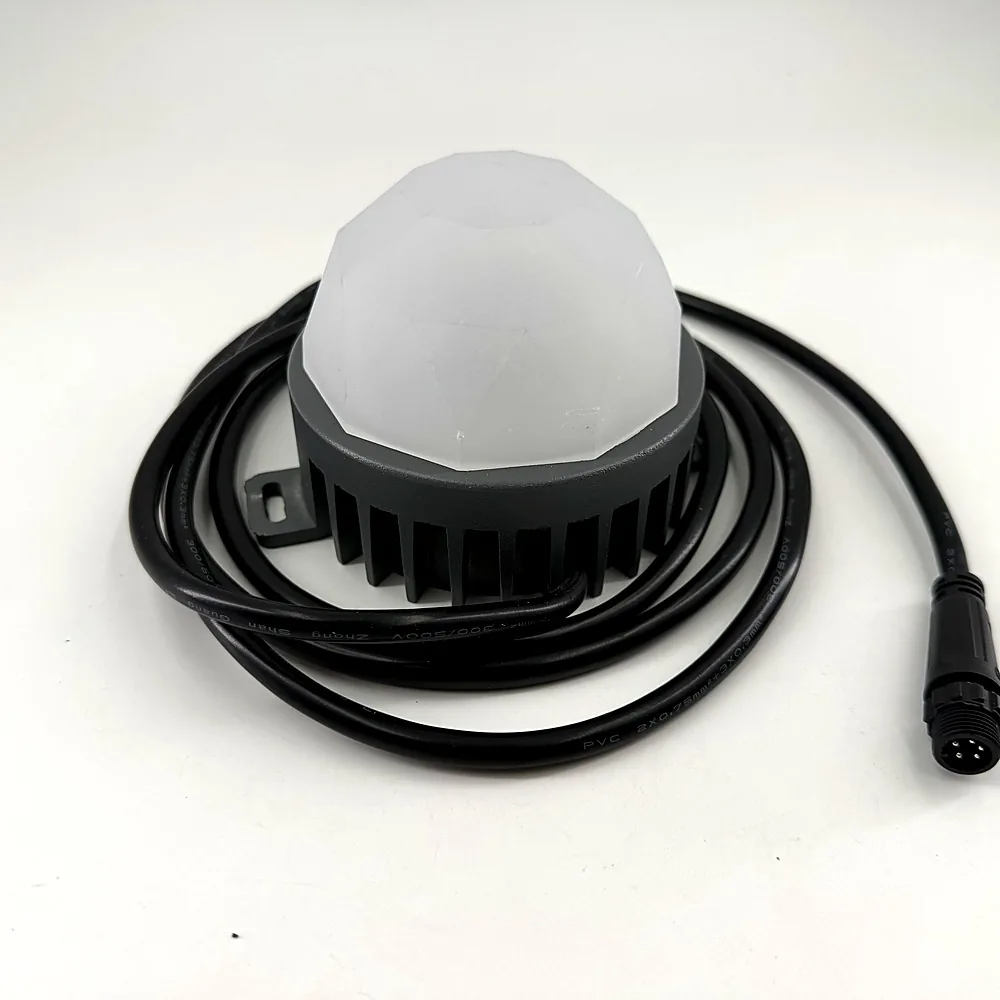

100mm RGB LED Point Light (PI-100RGBDG) is a full-color RGB LED point light. It is suited to pixel point arrays for facades, signage, rides and media architecture.
It runs on 24V and draws 9W. The 240° beam angle sets the coverage of each point.
The housing is made of Aluminum. An IP67 rating makes it suitable for outdoor and wet-location use. Expect a rated life of 50,000 Hours, up to 300LM per point.
Highlighted features

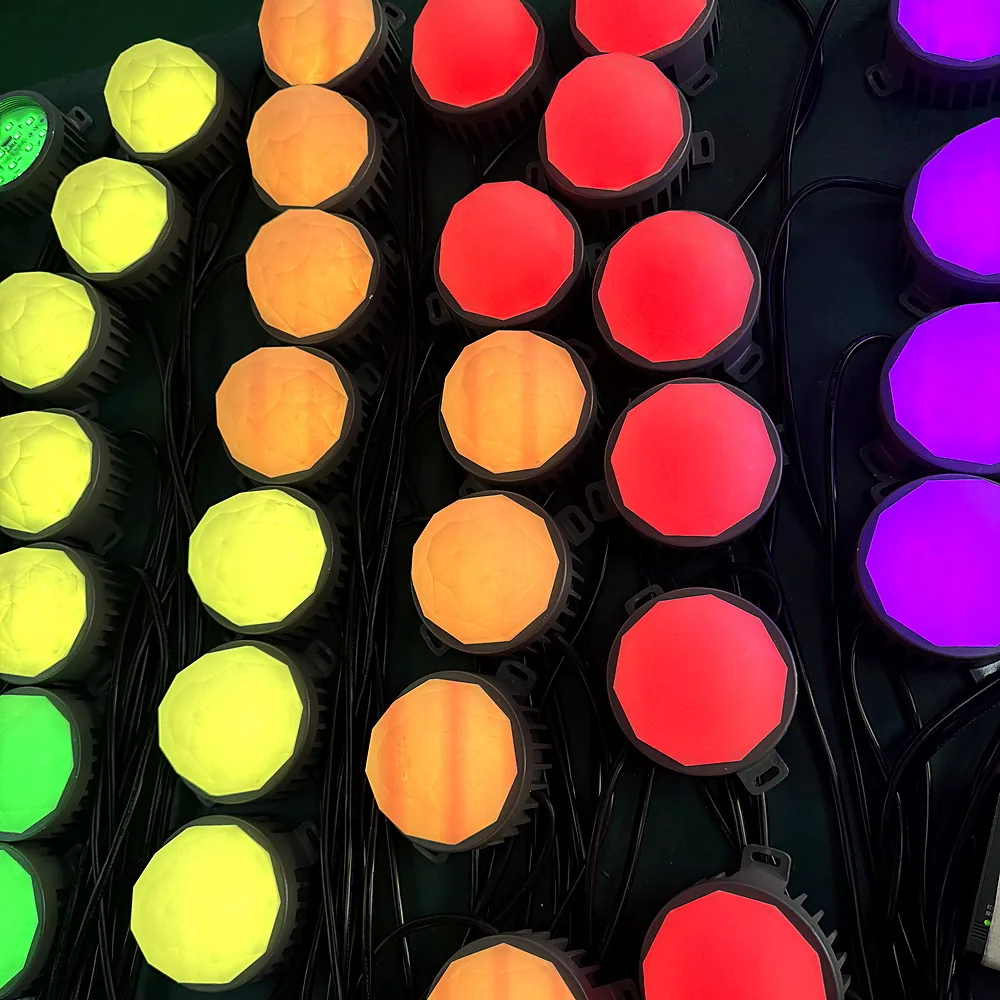

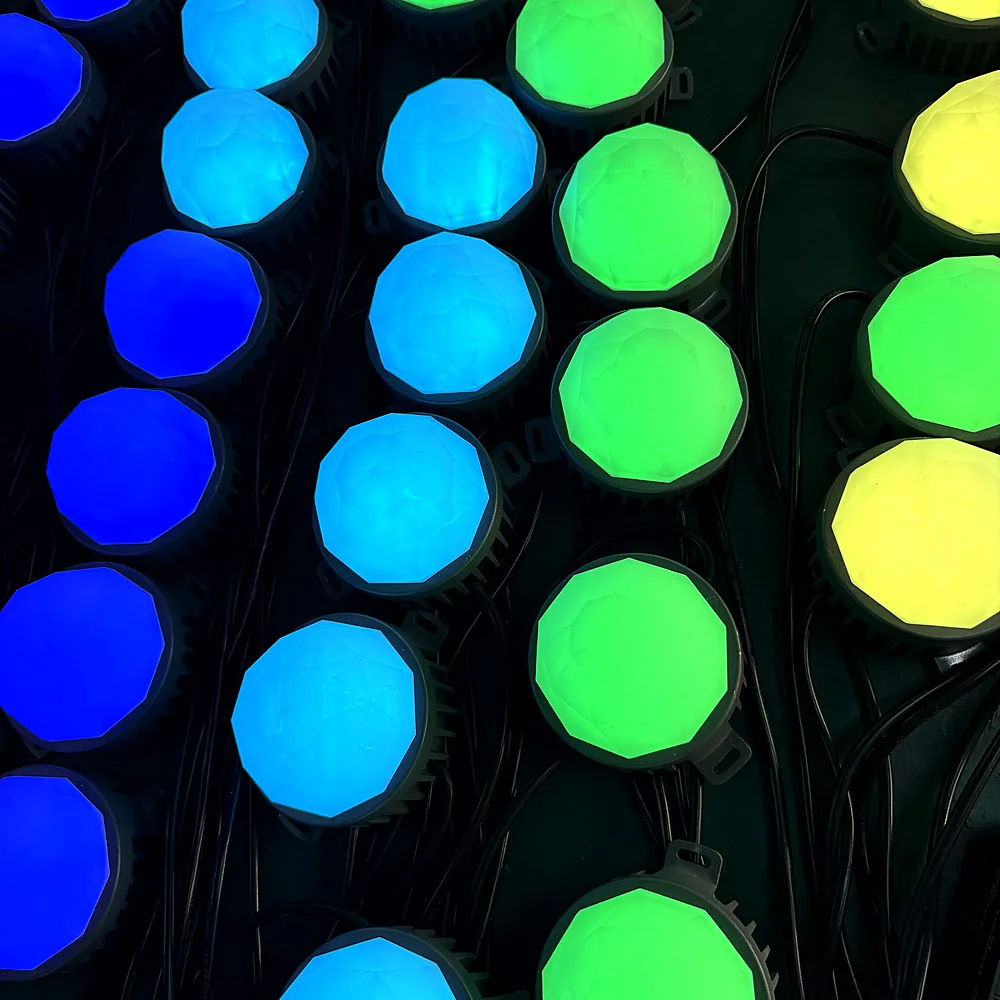

- RGB colour mixing with smooth dimming and gradients
- IP67-rated housing for outdoor and wet-location use
- Up to 300LM luminous output per point
- Aluminium + PC housing for heat dissipation and durability
- 240° beam angle for controlled point coverage
- Long 50,000 Hours rated lifespan
Technical parameters
- Color
- DMX-RGB
- Beam Angle
- 240°
- Power
- 9W
- Luminous Flux
- 300LM
- Voltage
- 24V
- Size
- 100mm
- IP Rating
- IP67
- Material
- Aluminum
- Lifespan
- 50,000 Hours
- Warranty
- 2 Years
Model PI-100RGBDG — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
