PX24506
LED Controller · K-8000C

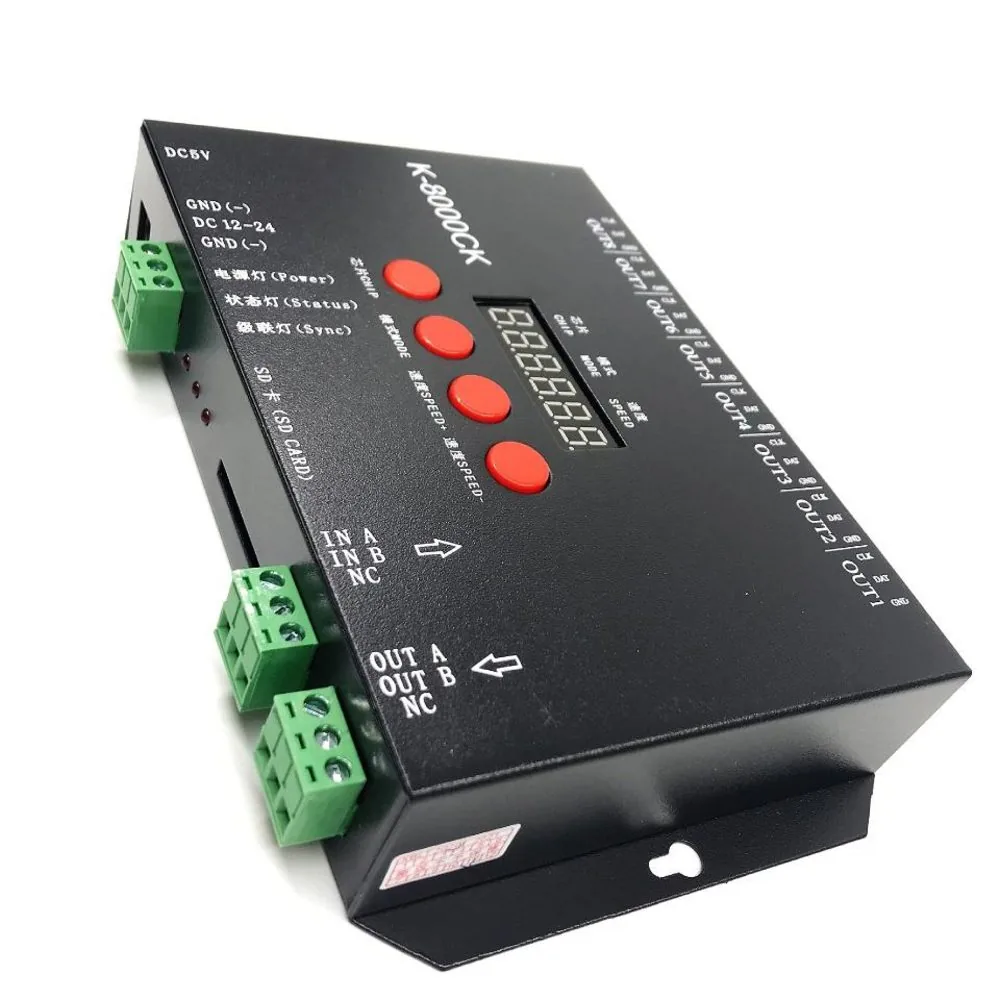

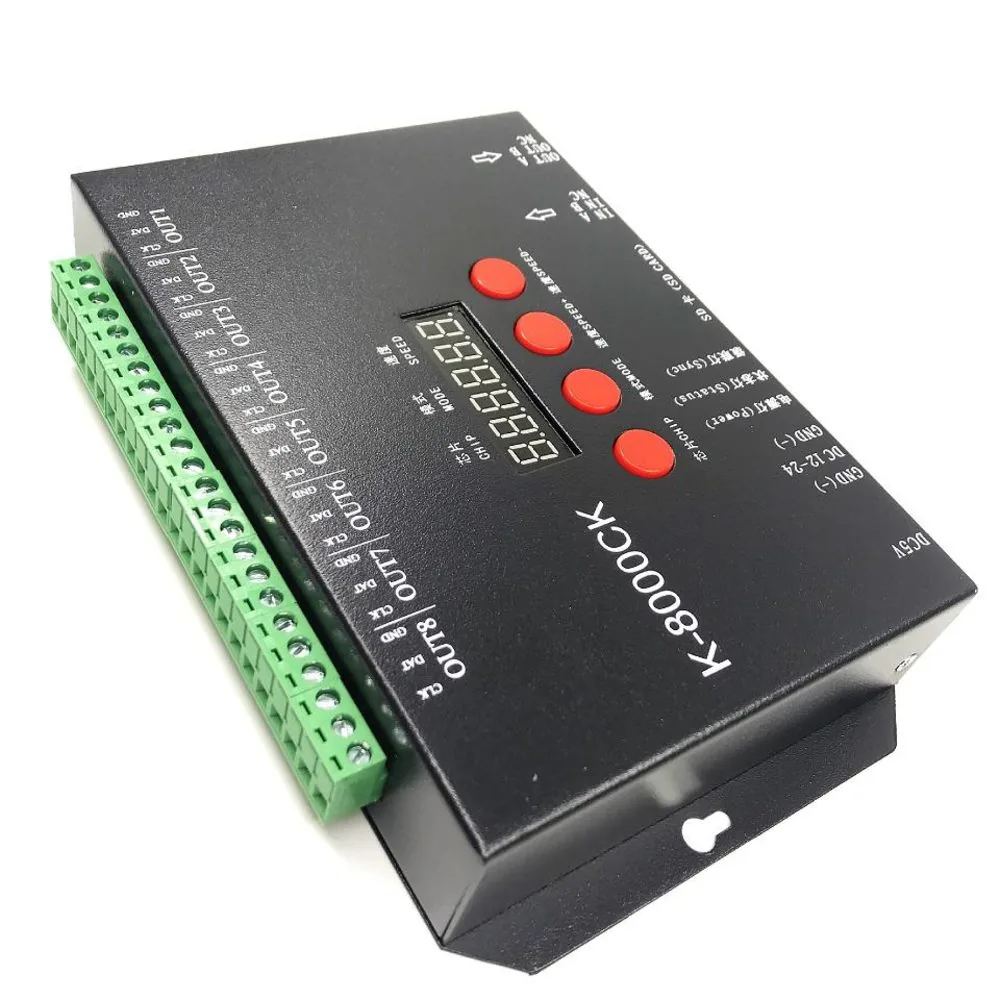

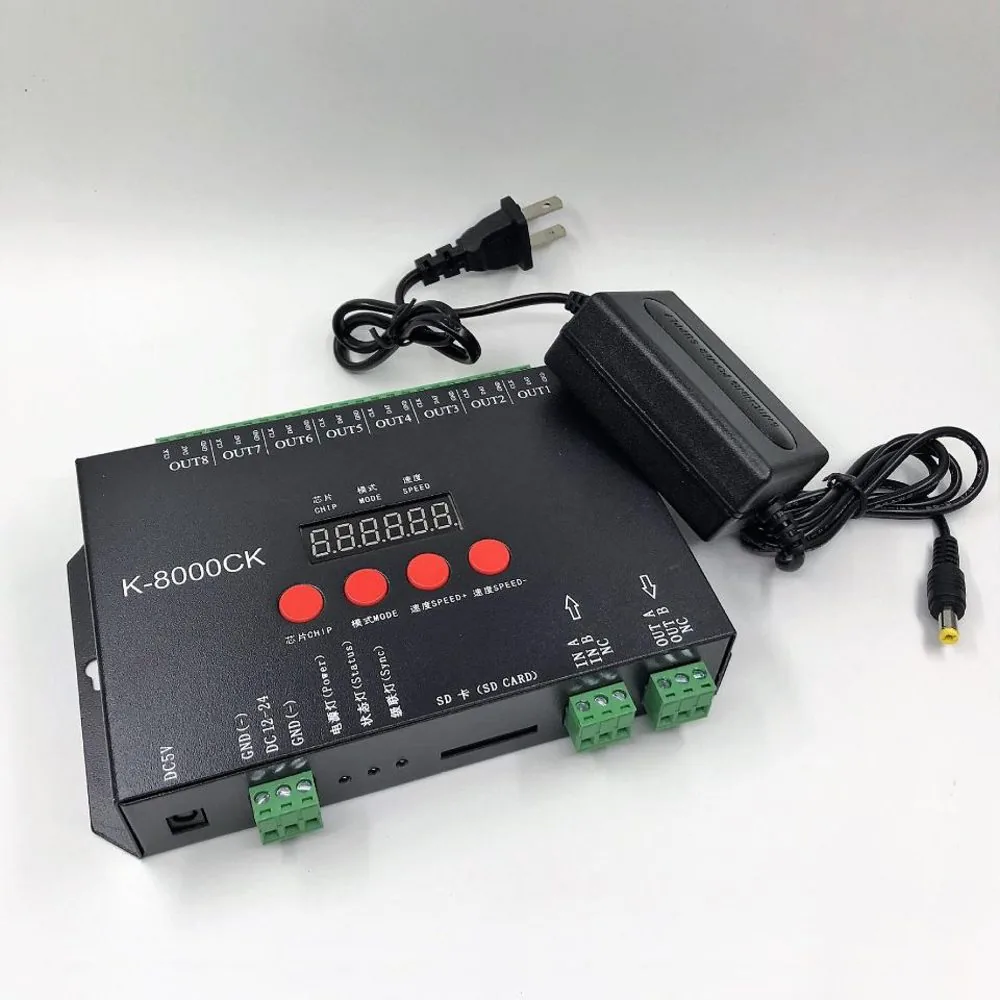

K-8000C DMX/SPI LED Controller
K-8000CK Digital DMX LED Controller with SD Card — LedEdit Programmable
Offline DMX/SPI pixel controller programmed with LedEdit and SD-card playback; links as an 8-port sub-controller under an Art-Net master.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the K-8000C DMX/SPI LED Controller
The K-8000C is an offline pixel controller programmed with LedEdit software and run from an SD card, driving up to 1024 pixels per unit.
It outputs DMX or SPI on a 3-pin connector and slaves under an Art-Net master as one of eight sub-controllers for larger systems. Max output is 144W.
It runs on AC85–265V in an IP20 housing measuring 200 × 50 × 30 mm.
Highlighted features
- Programmed with LedEdit; offline SD-card playback
- Drives up to 1024 pixels per unit
- Links as an 8-port sub-controller under Art-Net
- DMX / SPI output on 3-pin connector
- AC85–265V input; 144W max output
Technical parameters
- Output Channels
- DMX / SPI
- Control Mode
- LedEdit + SD card (offline)
- Max Pixels
- 1024
- Max Output Power
- 144W
- DMX Connector
- 3 Pin
- Input Voltage
- AC85–265V
- Protection Level
- IP20
- Product Size
- 200 × 50 × 30 mm
- Control Distance
- ≤100m
- Weight
- 0.5KG
- Warranty
- 2 Years
Model K-8000C — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
