PX24506 DMX512 Decoder · RGB
PX24506 DMX512 Decoder — RGB LED Controller, DC12–24V
DMX512 decoder for analog RGB LED loads — 3 channels at 3A each, common-anode wiring.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the PX24506 DMX512 Decoder · RGB

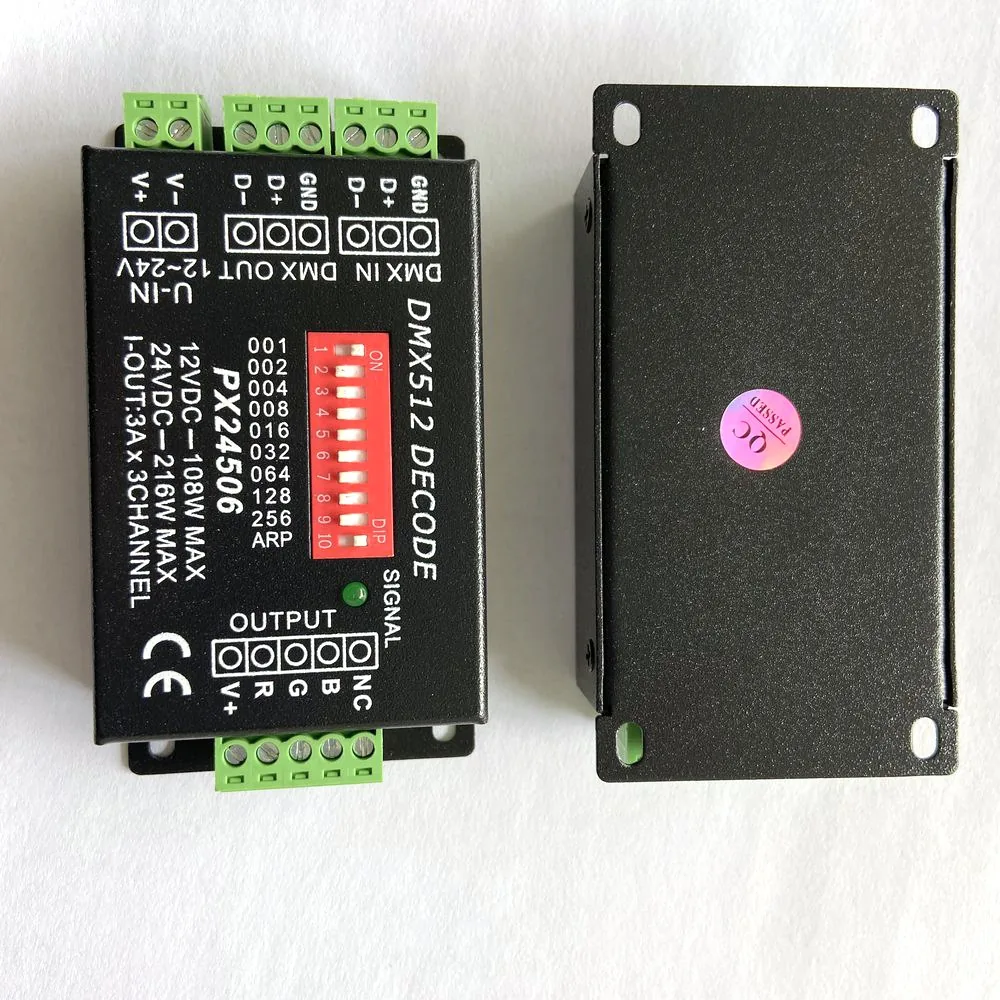

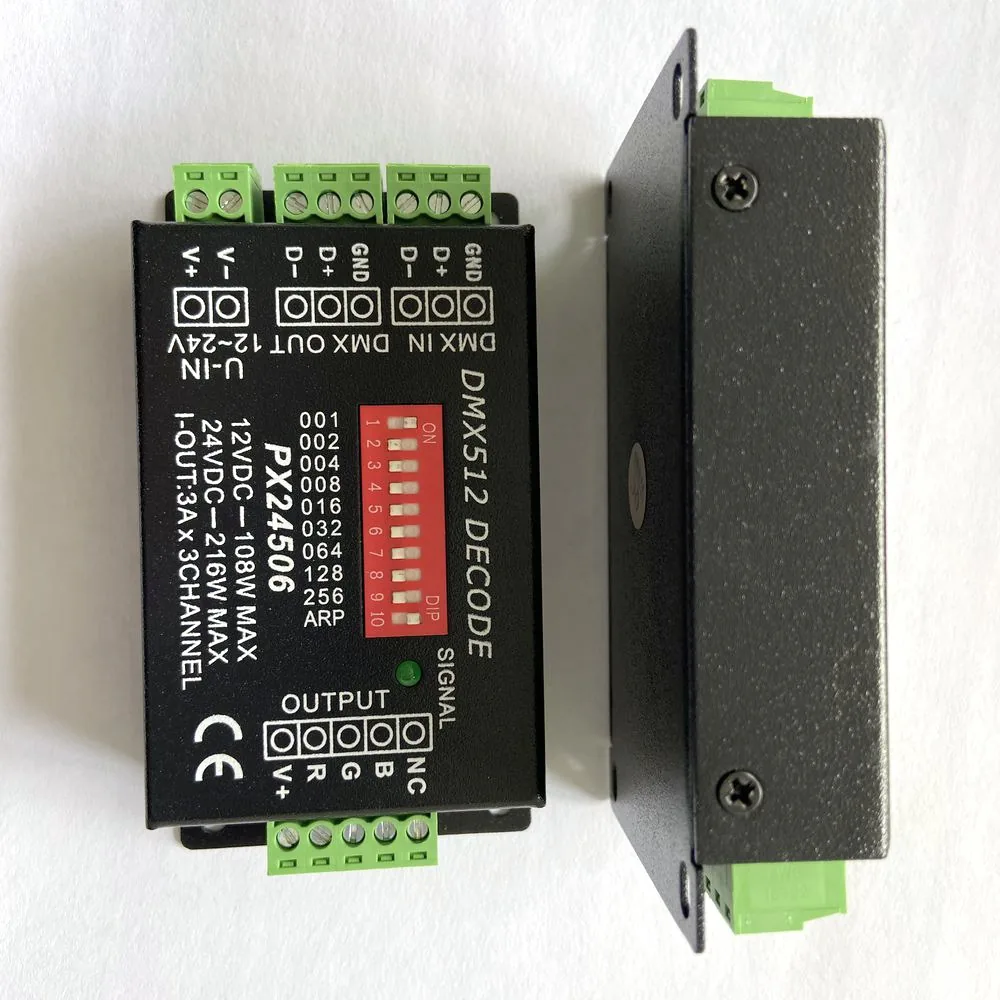

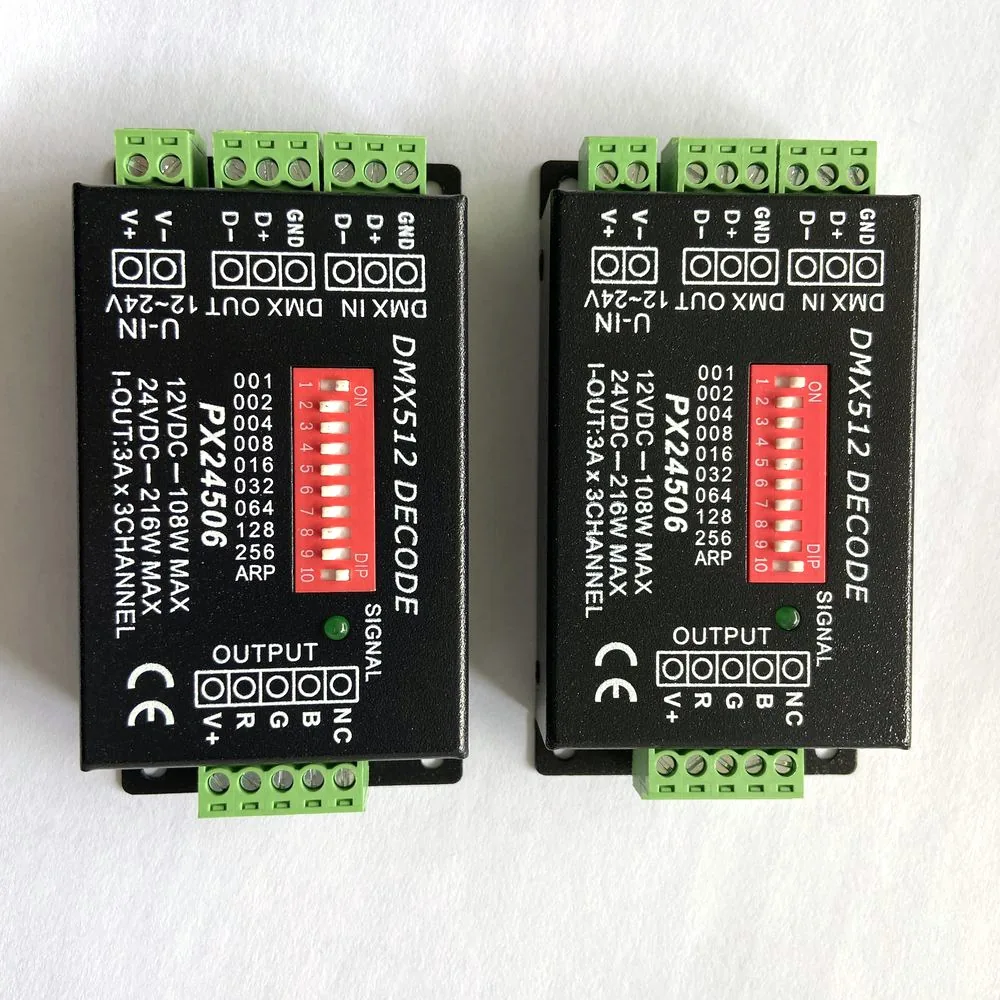

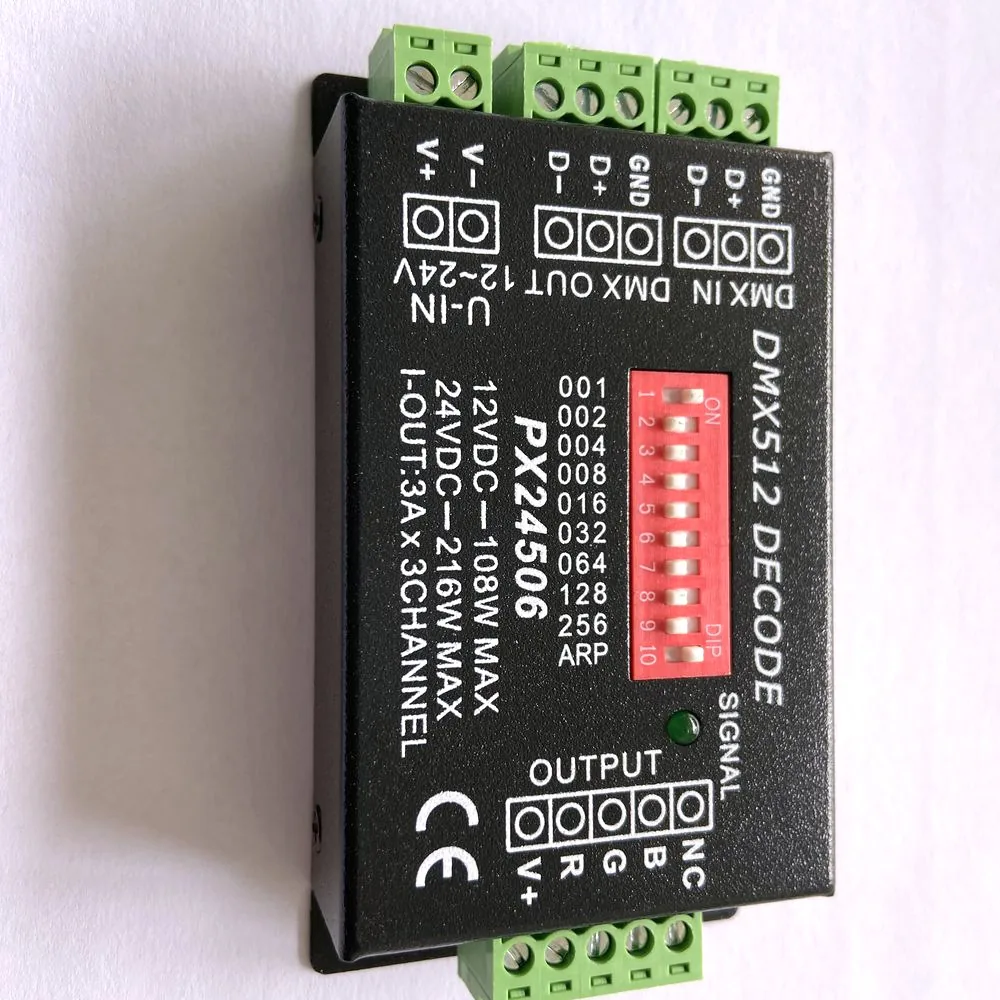

The PX24506 decodes a DMX512 signal to drive common-anode RGB LED strip and modules across 3 output channels.
Each channel supplies 3A (9A total) at DC12–24V, on a 4-pin connector. The IP20 housing suits indoor control enclosures.
It chains in master–slave mode and measures 200 × 50 × 30 mm.
Highlighted features
- Decodes DMX512 to drive common-anode RGB loads
- 3 channels (RGB) at 3A each — 9A total
- DC12–24V input; 4-pin connector
- Master–slave linking
- Compact 200 × 50 × 30 mm housing
Technical parameters
- Function
- DMX512 decoder (RGB)
- Output Channels
- 3CH (RGB)
- Output Current
- 3A × 3CH (9A)
- Connecting Mode
- Common Anode
- DMX Connector
- 4 Pin
- Input Voltage
- DC12–24V
- Protection Level
- IP20
- Product Size
- 200 × 50 × 30 mm
- Control Distance
- ≤100m
- Warranty
- 2 Years
Model PX24506 — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
