LED Controller · PI-1616A
16-Port Art-Net DMX/SPI Controller
16-Port Art-Net LED Controller — DMX512/SPI, Madrix Compatible
Rack-format 16-port Art-Net master controller for large DMX512/SPI pixel systems.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 16-Port Art-Net DMX/SPI Controller

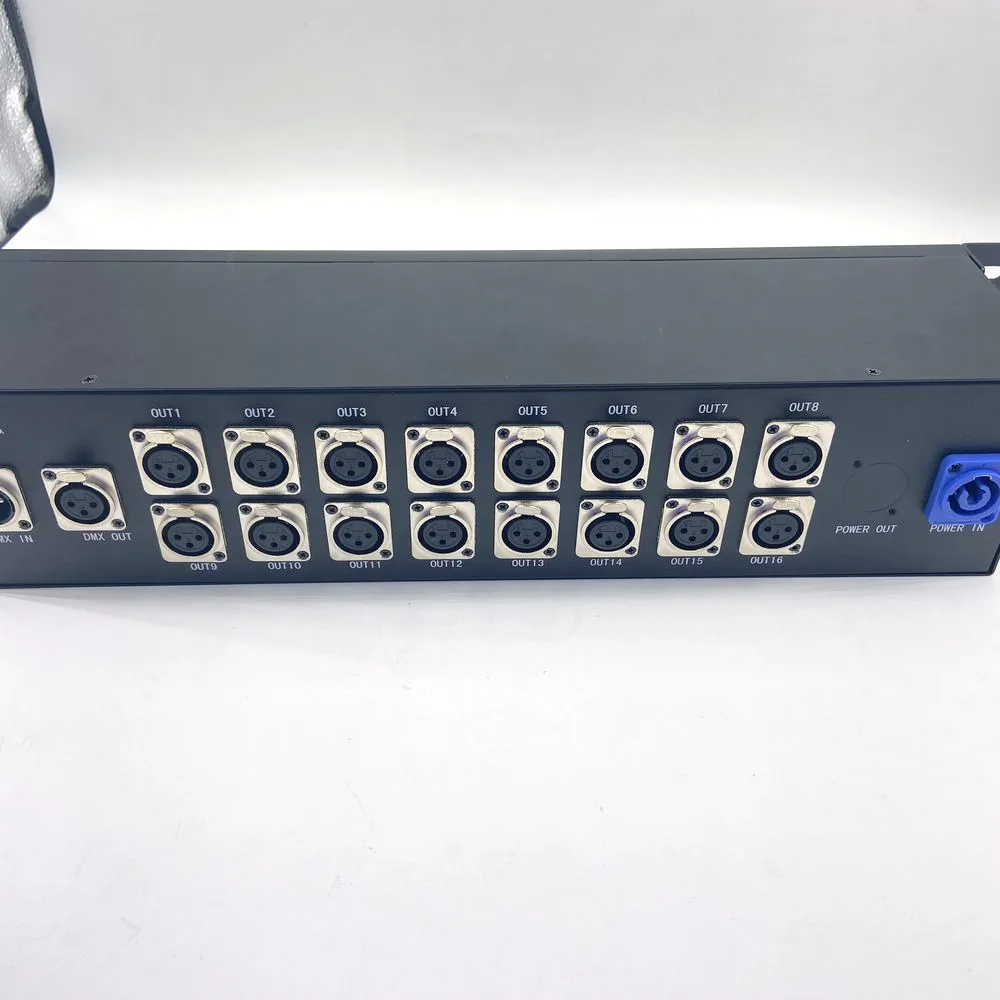

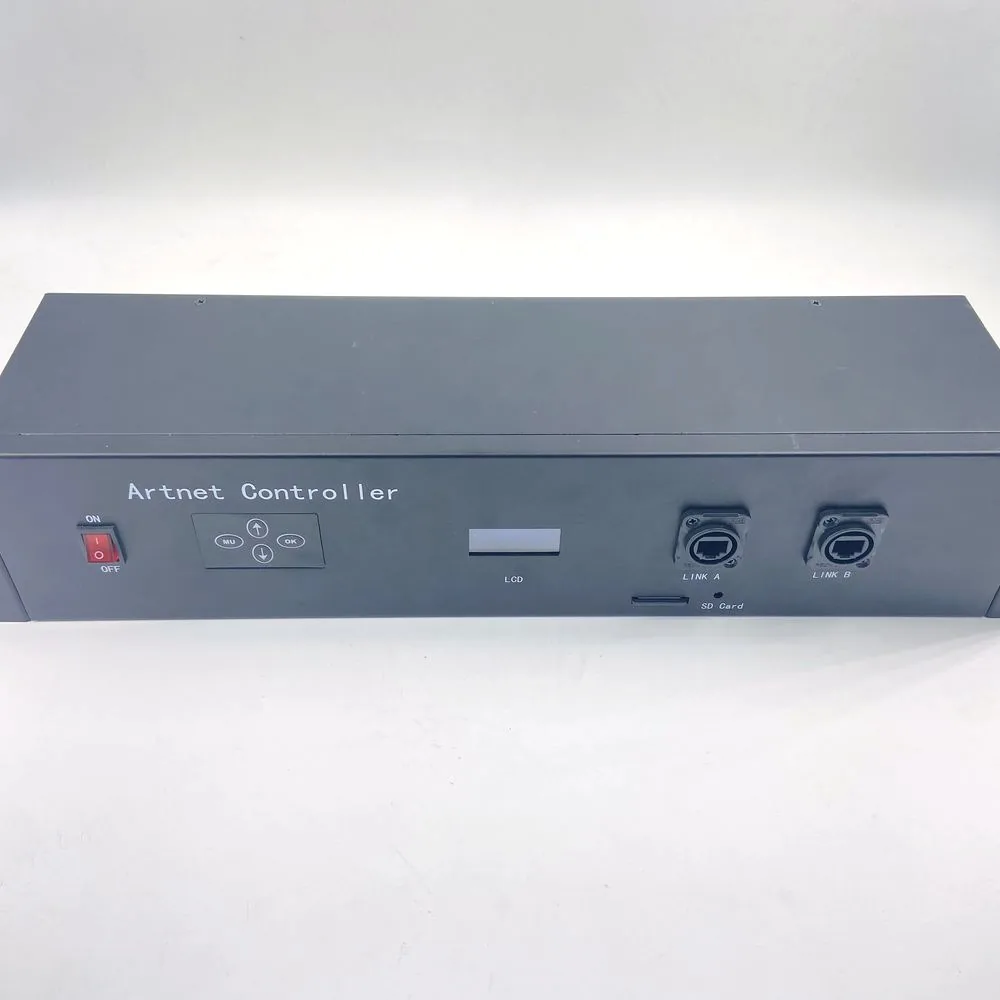

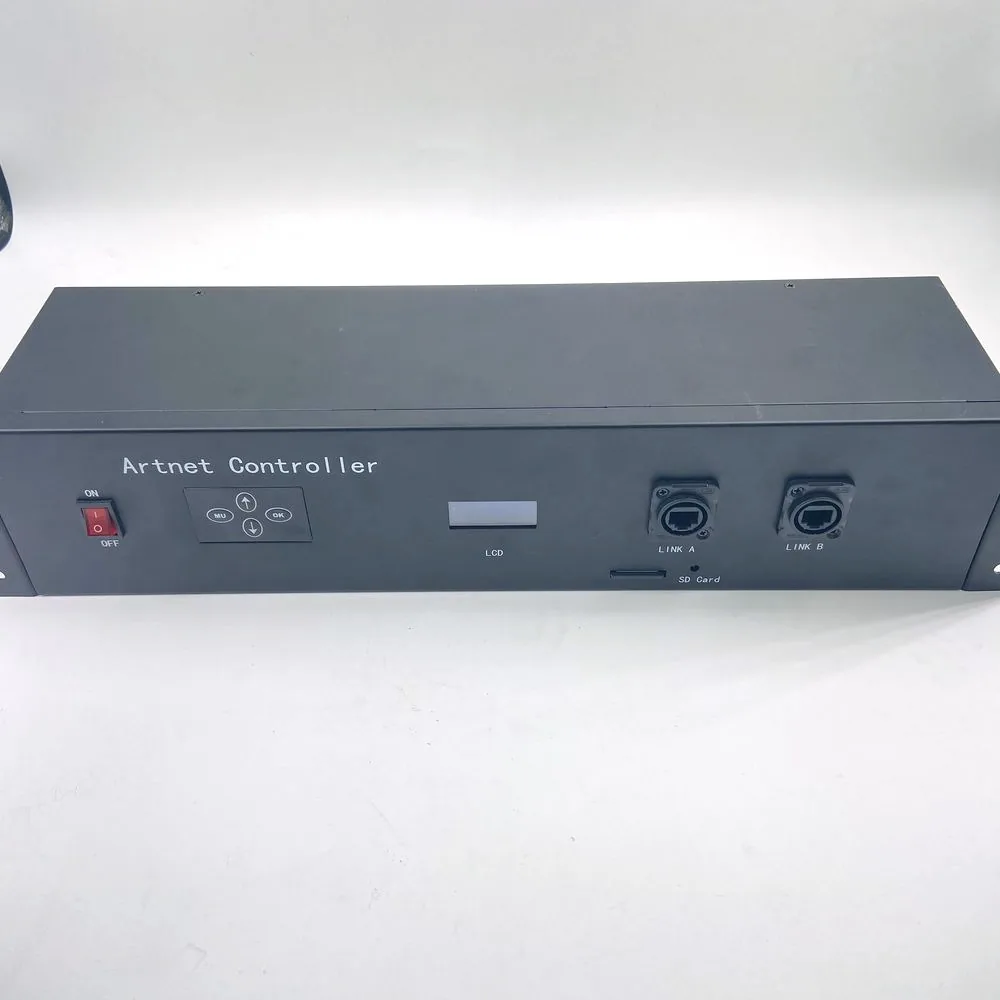

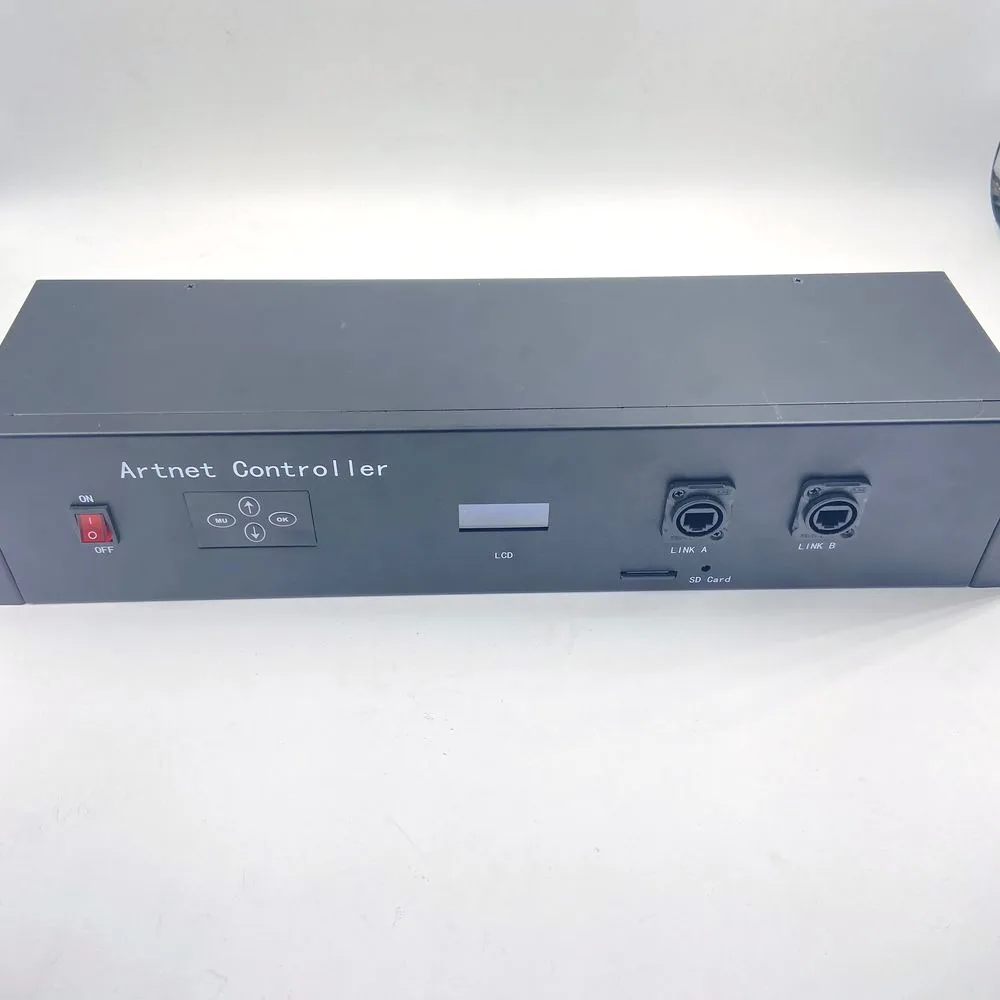

The PI-1616A is a 16-port Art-Net master controller for the largest addressable pixel systems. It takes Art-Net in and outputs DMX512 or SPI on 3/5-pin XLR female connectors.
Each unit handles up to 16 × 512 pixels over DMX or 16 × 1024 pixels over SPI, with 192W output and selectable 3/4/6/8-channel modes. It runs on AC85–265V and is compatible with Madrix and MadMapper.
The 483 × 200 × 88 mm rack chassis suits permanent stage and architectural control rooms.
Highlighted features
- 16 ports — DMX512 or SPI output on 3/5-pin XLR female
- Art-Net master, Madrix and MadMapper compatible
- Up to 16 × 512 px (DMX) / 16 × 1024 px (SPI)
- Selectable 3 / 4 / 6 / 8-channel modes
- AC85–265V; rack-format 483 × 200 × 88 mm
Technical parameters
- Control Mode
- DMX512 / SPI
- Input Signal
- Art-Net
- Ports
- 16
- Pixels
- DMX 16×512 / SPI 16×1024
- Channels
- 3CH / 4CH / 6CH / 8CH
- Output Port
- 3/5-pin XLR female
- Output Power
- 192W
- Input Voltage
- AC85–265V
- Compatible
- Madrix, MadMapper
- Dimension
- 483 × 200 × 88 mm
- Working Temperature
- -20℃ ~ 60℃
- Warranty
- 2 Years
Model PI-1616A — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
