PI-500ICRGB
LED Point Light · PI-500ICRGB

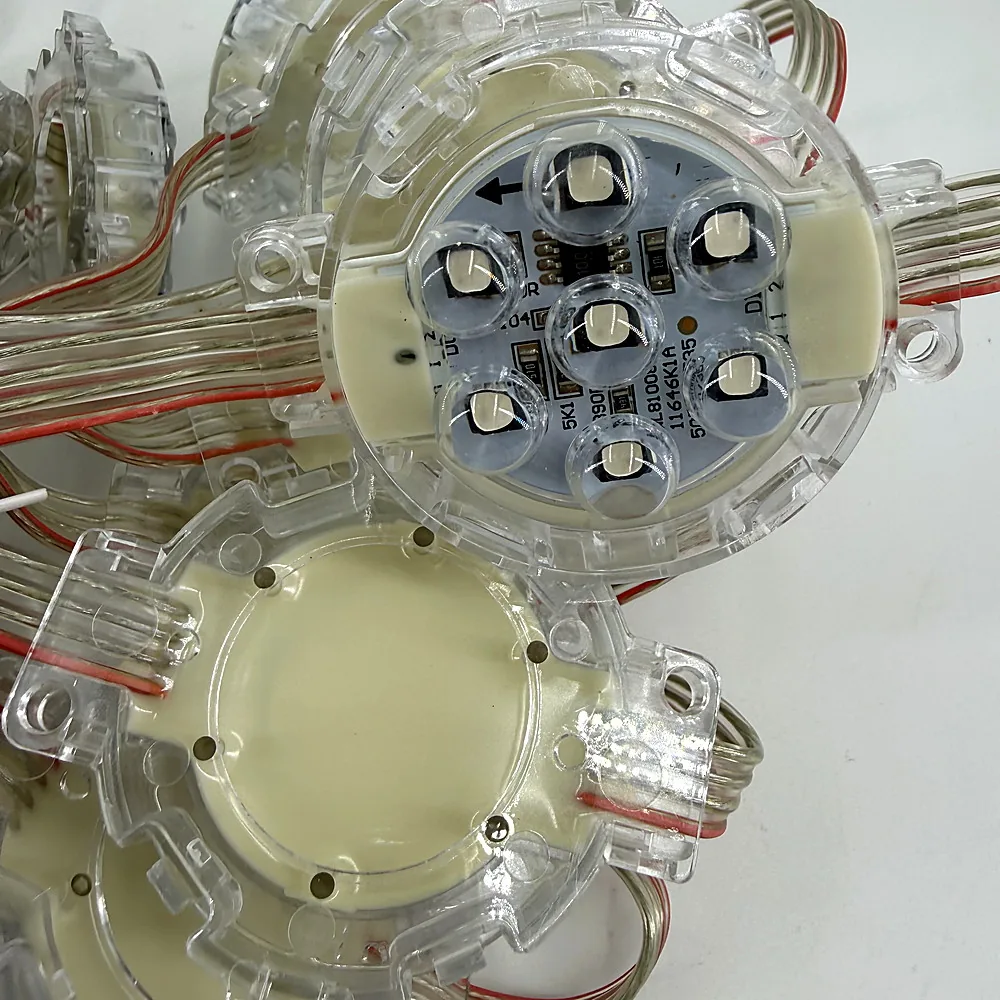

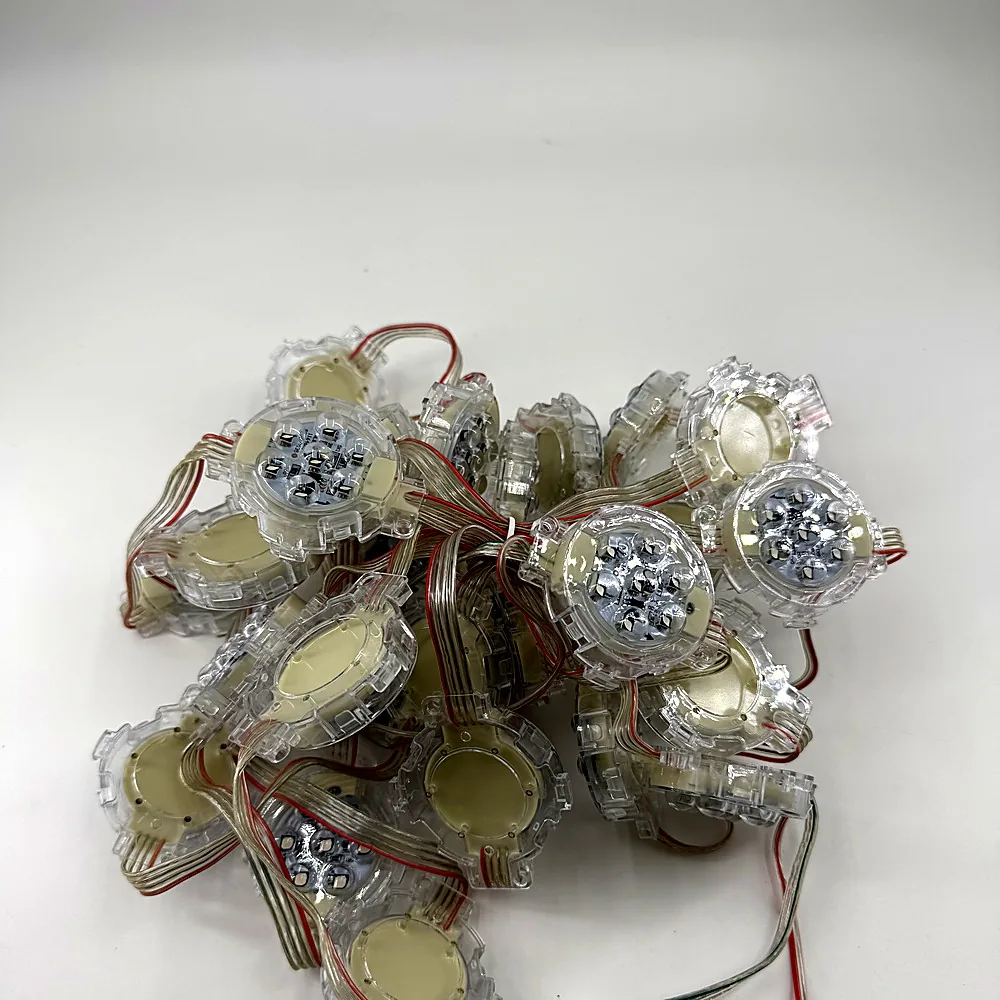

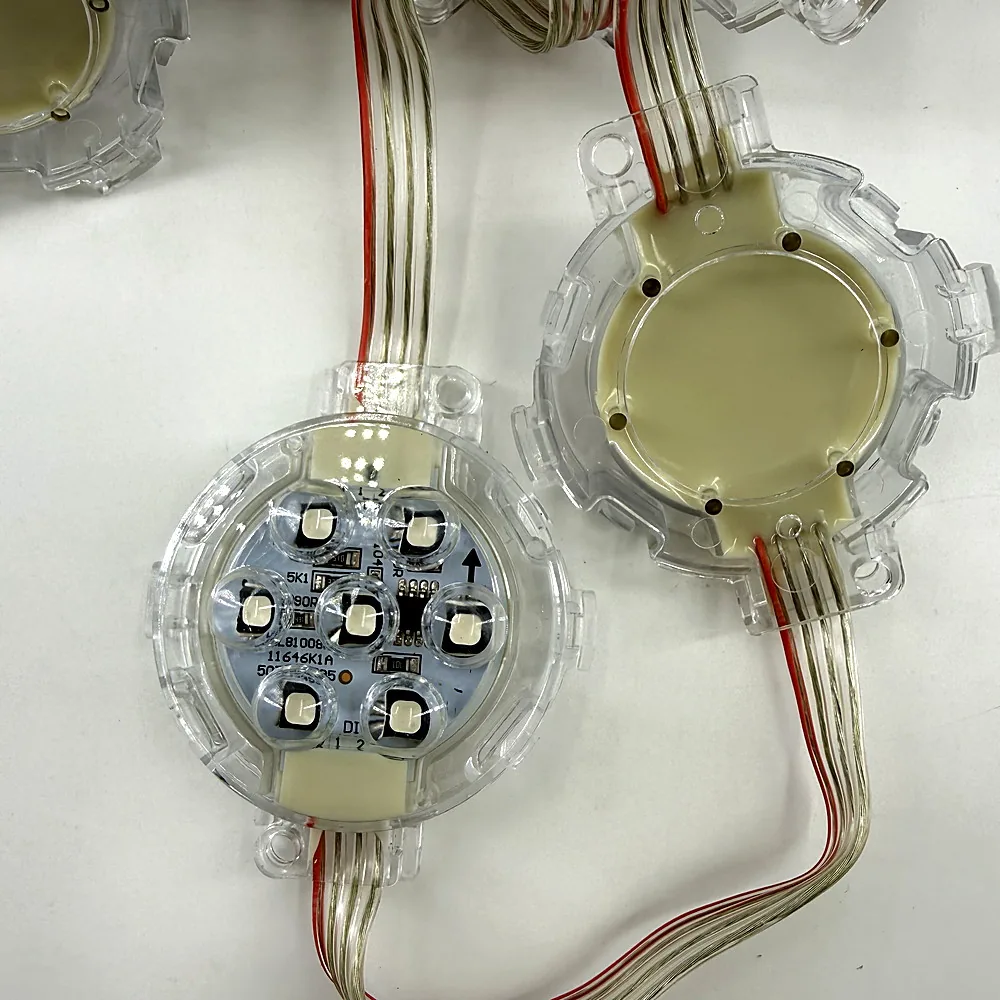

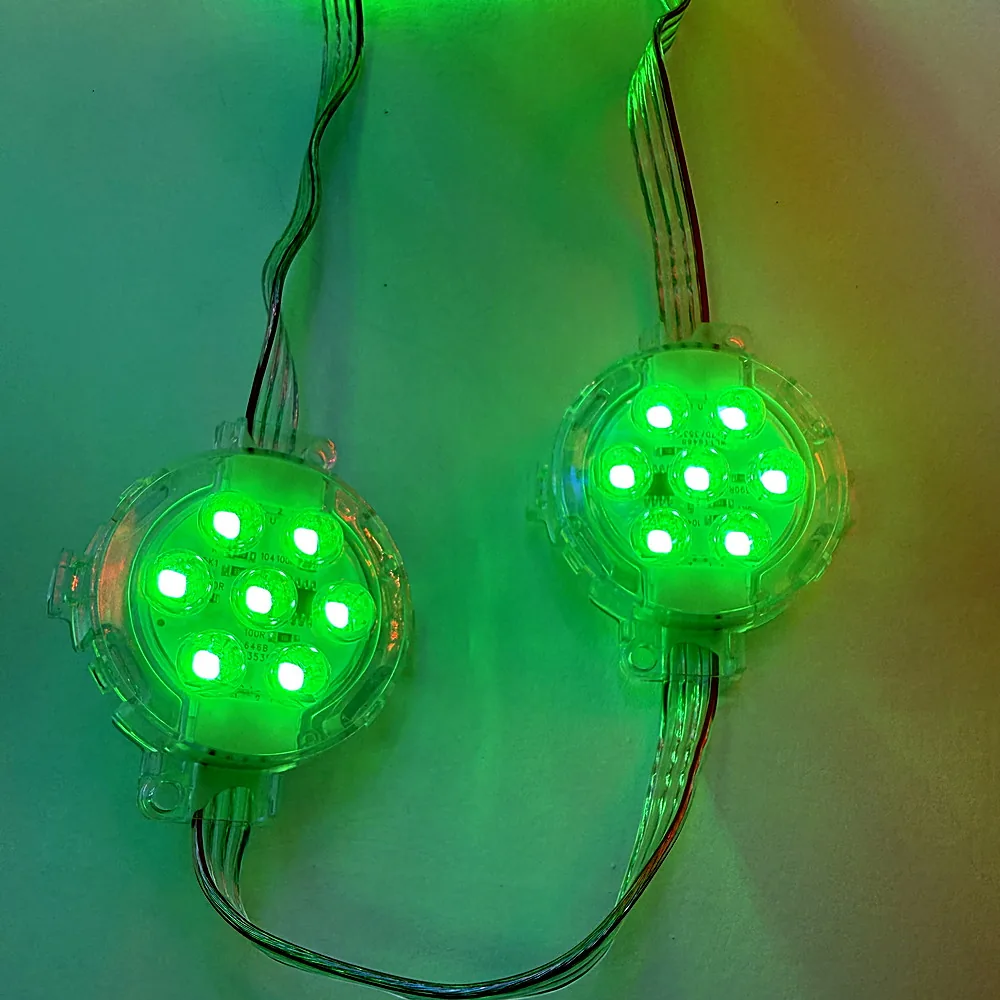

50mm Half-Ball RGB LED Point Light · DC24V
SMD 3535 RGB LED Point Light Milk White Hemisphere Round For Entertainment
Full-color RGB LED point light for pixel facade, signage and media-architecture arrays.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 50mm Half-Ball RGB LED Point Light · DC24V
50mm RGB LED Point Light (PI-500ICRGB) is a full-color RGB LED point light. It is suited to pixel point arrays for facades, signage, rides and media architecture.
It runs on low-voltage DC24V and draws 1.68W. The 140° beam angle sets the coverage of each point.
The housing is made of PC. An IP67 rating makes it suitable for outdoor and wet-location use. Expect a rated life of 500000h, a CRI of >80Ra, up to 200lm per point.
Highlighted features
- RGB colour mixing with smooth dimming and gradients
- IP67-rated housing for outdoor and wet-location use
- Low-voltage DC24V operation for safe, simple installation
- High colour rendering (CRI >80Ra) for true-to-life output
- Up to 200lm luminous output per point
- 140° beam angle for controlled point coverage
Technical parameters
- Color
- FULL-RGB
- Beam Angle
- 140°
- Power
- 1.68W
- Luminous Flux
- 200lm
- CRI
- >80Ra
- Voltage
- DC24V
- Size
- Dia50mm
- IP Rating
- IP67
- Material
- PC
- Lifespan
- 500000h
- Warranty
- 2 Years
Model PI-500ICRGB — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.

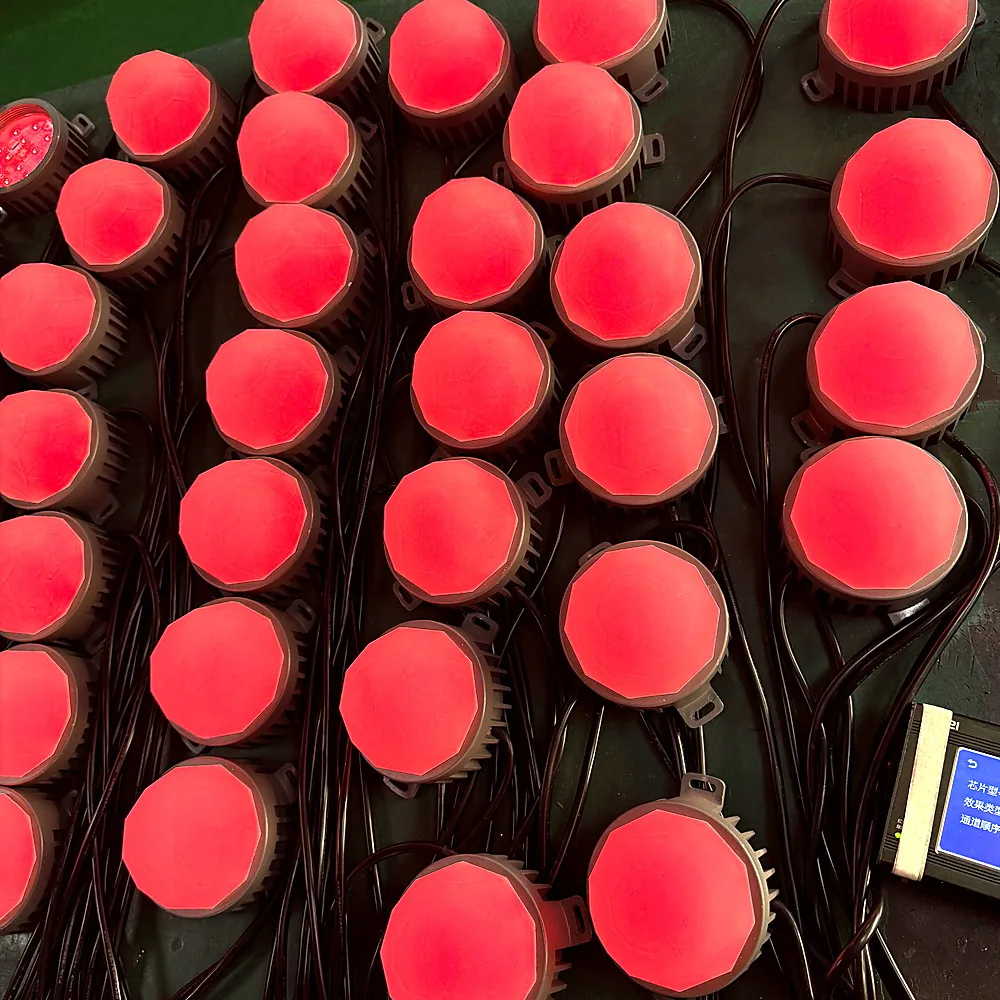

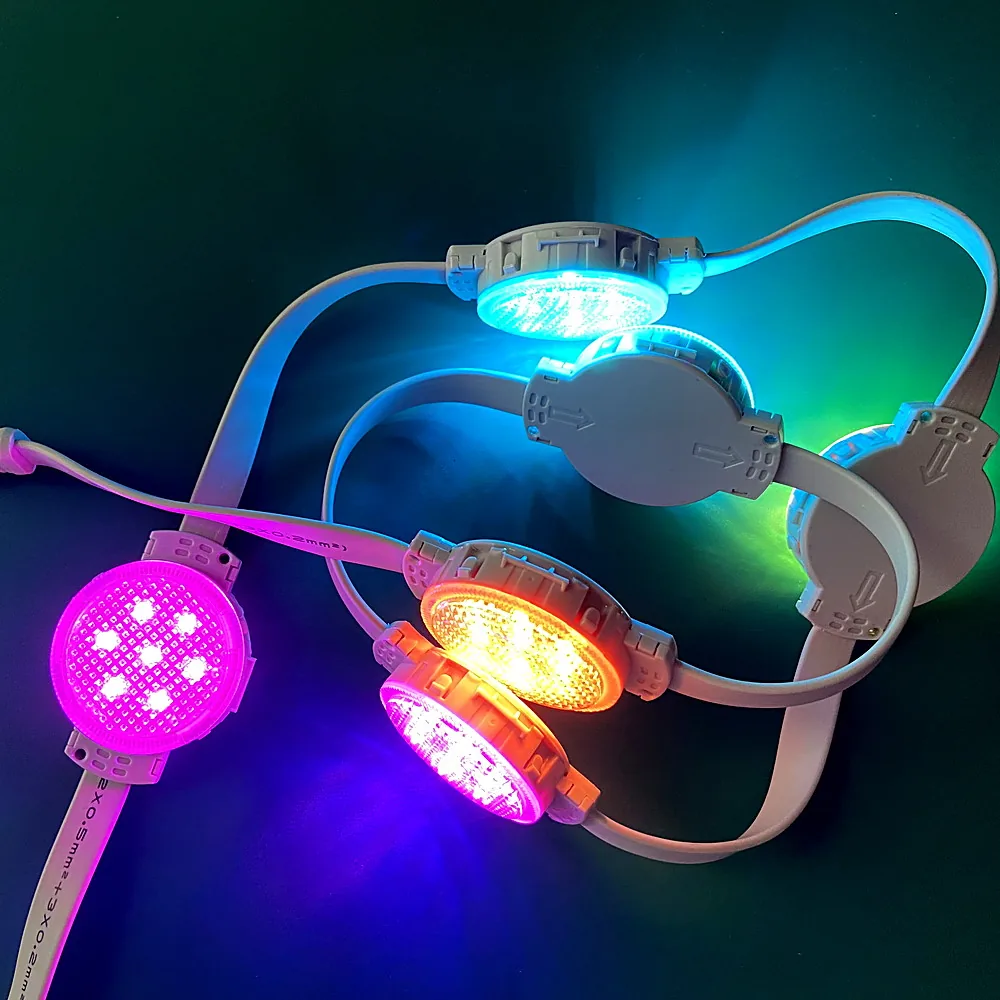

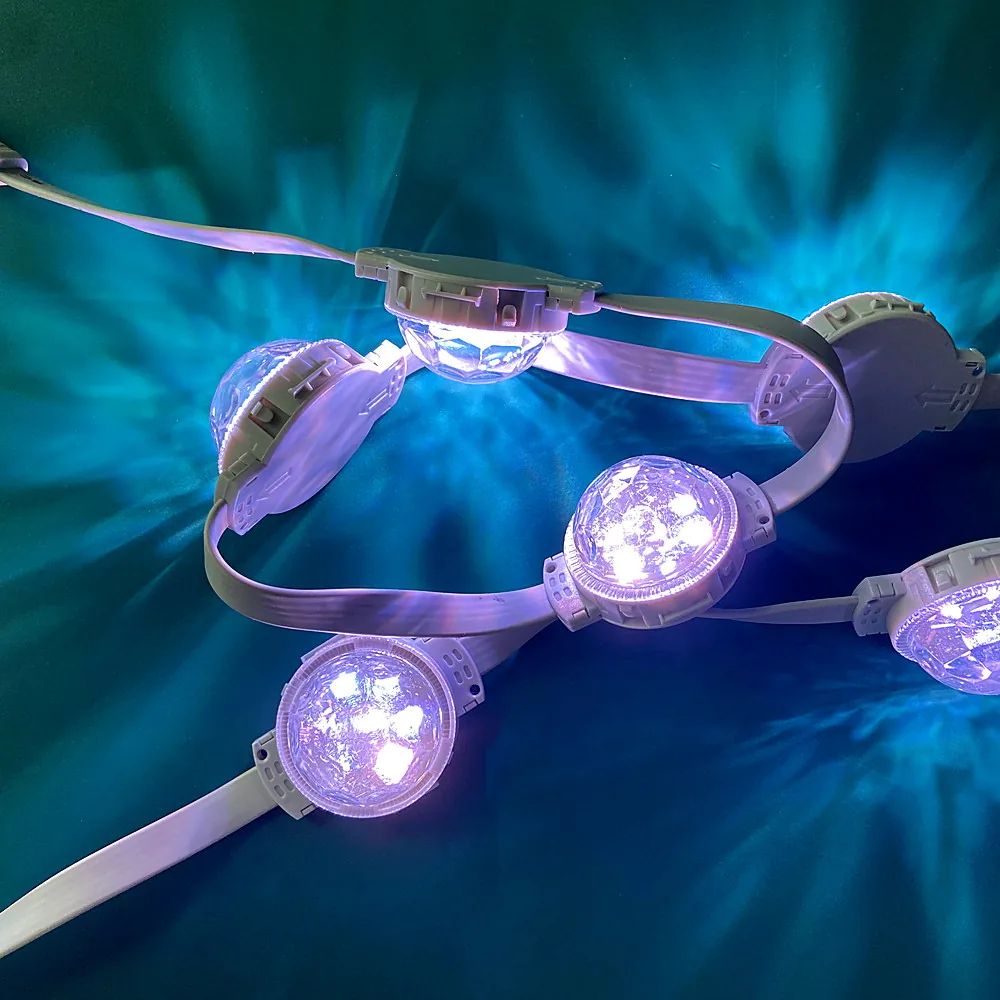

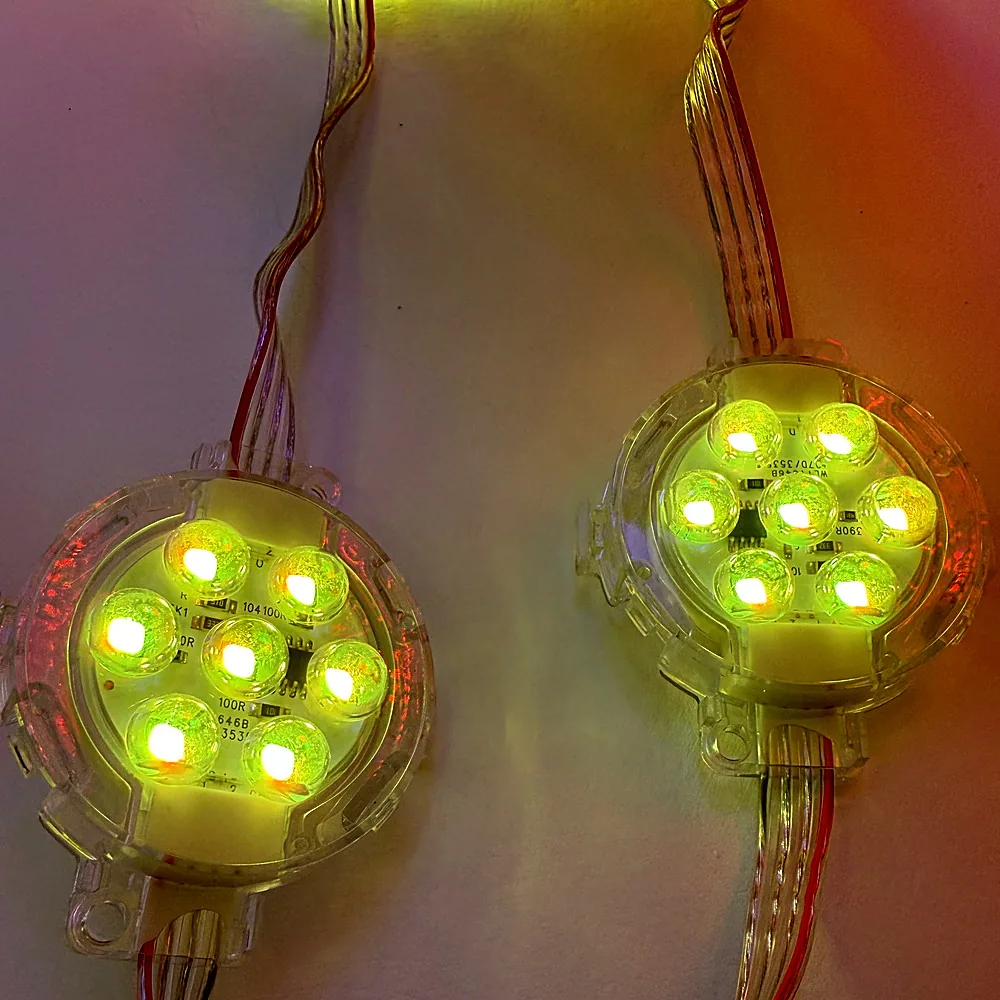

Other LED Point Light models

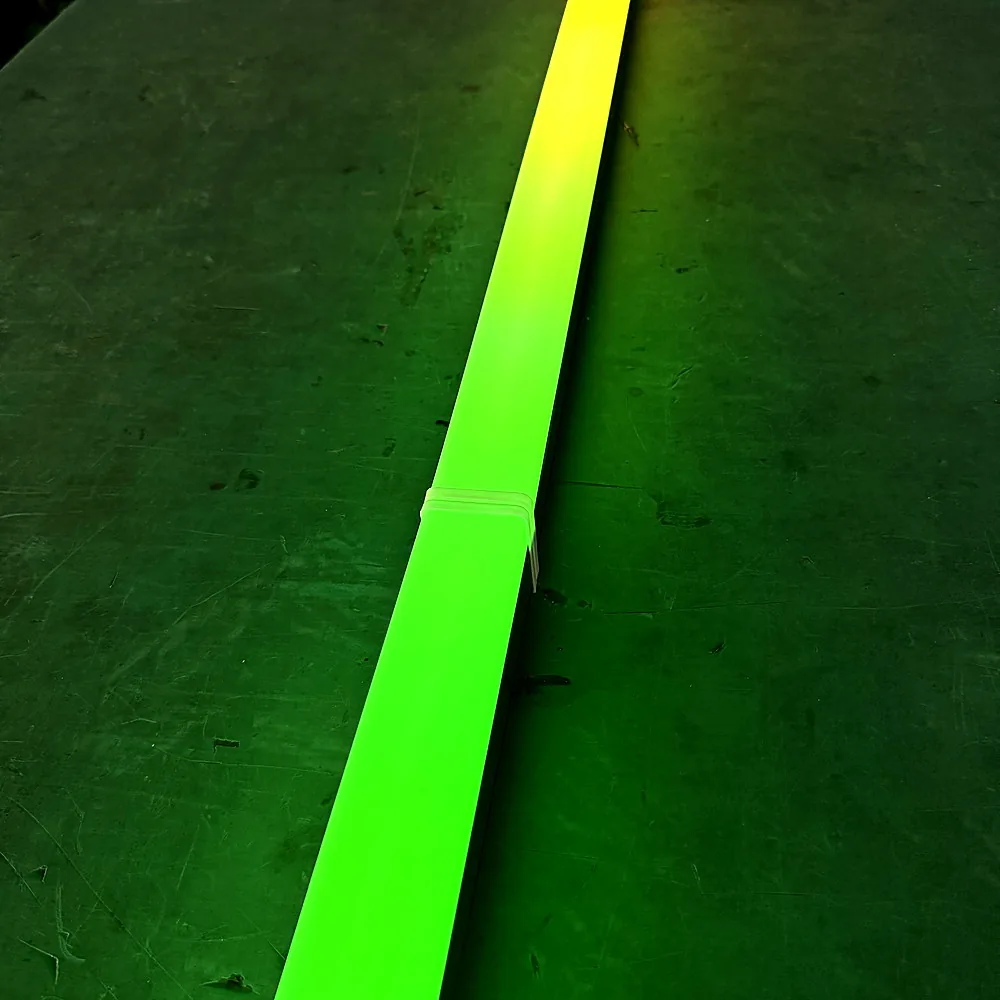

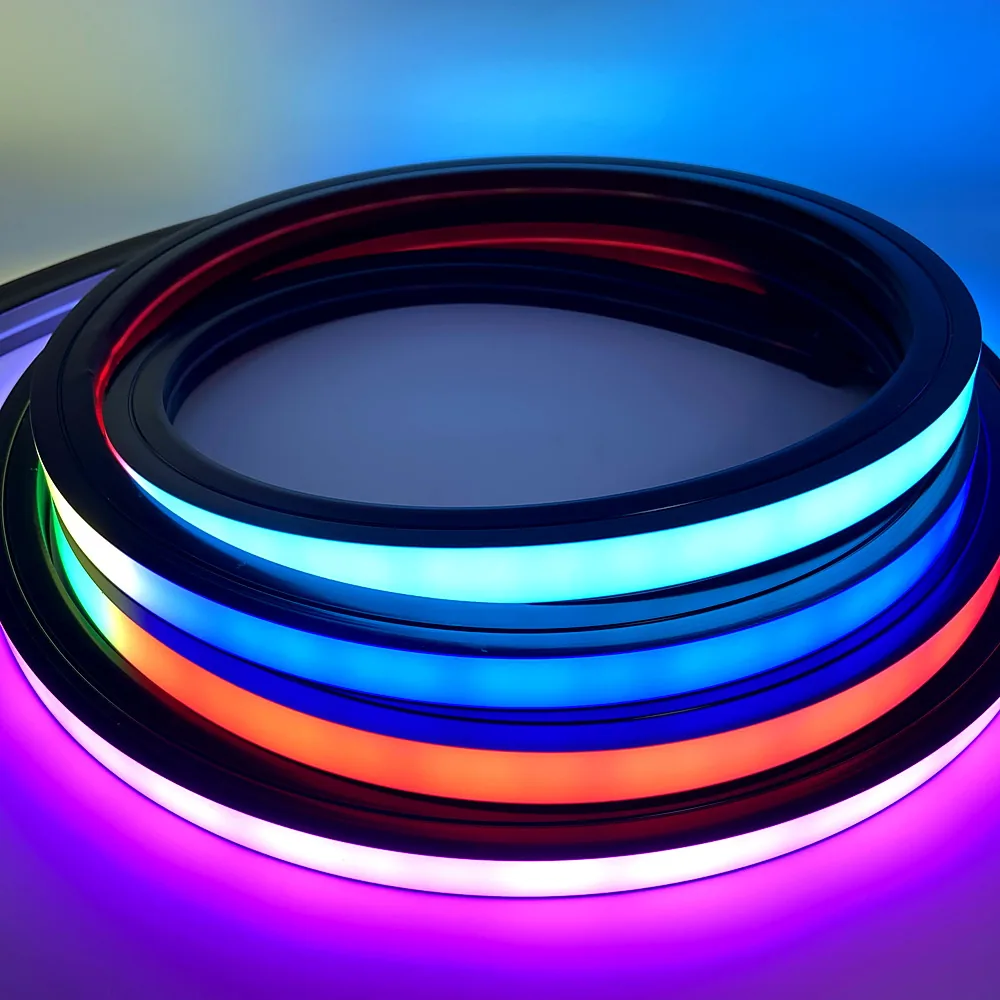

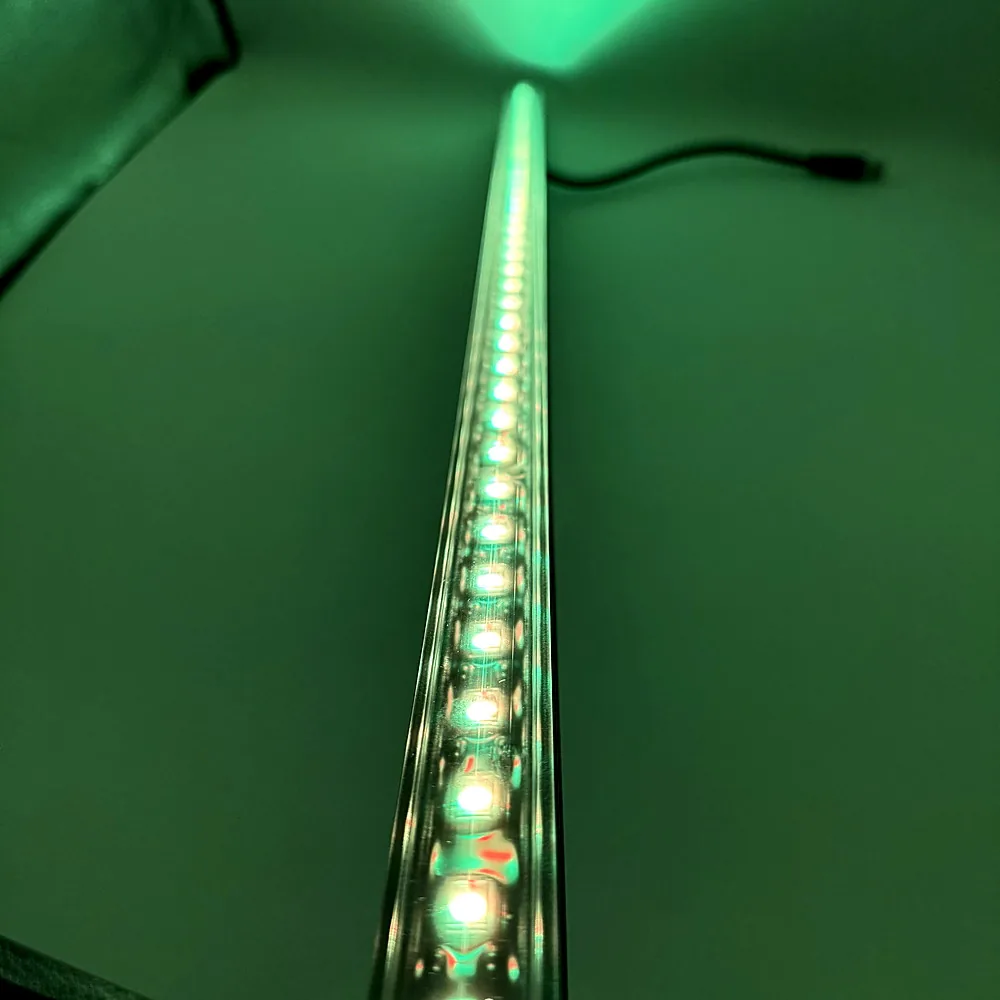

Related pixel light lines
