PI-10060IC-50S
LED Pixel Bar · PI-10048IC-50
30mm Black-Face RGB LED Pixel Bar
5050 Black Face LED Pixel Bar RGB Color IP67 12V 16 Pixels/M
Individually addressable full-color RGB LED pixel bar for pixel-mapped stage, club and event lighting.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 30mm Black-Face RGB LED Pixel Bar

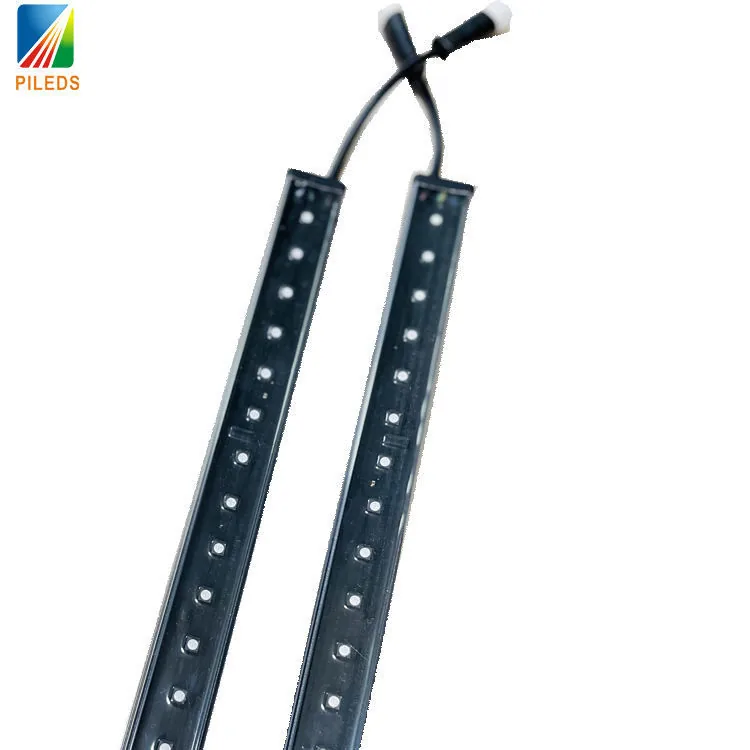

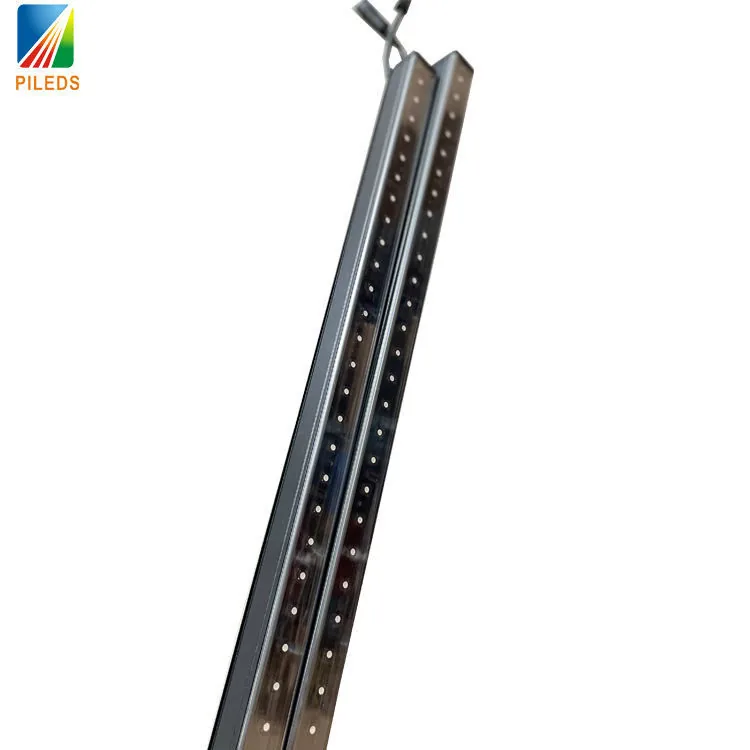

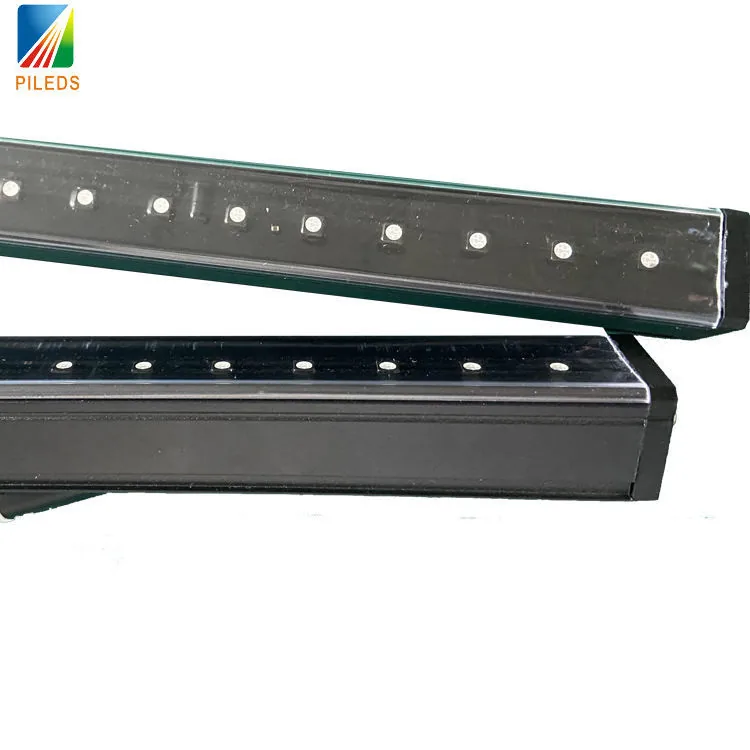

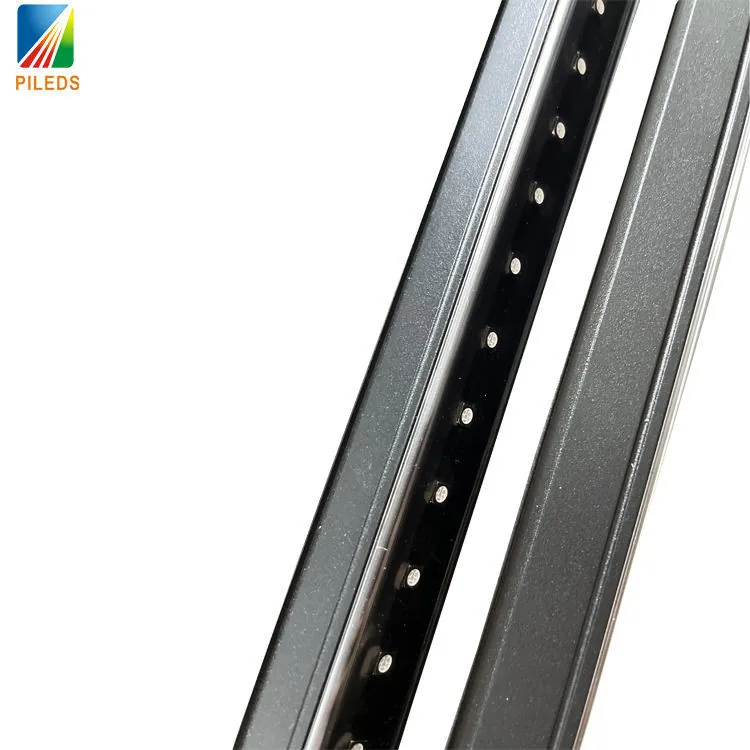

The PI-10048IC-50 is a full-color RGB LED pixel bar built on SMD 5050RGB emitters, with 48 LEDs/m. Each LED is individually addressable, so the fixture drives pixel-mapped wash, beam and tube effects on stage and event rigs.
Control is over DMX512 or SPI. It runs on low-voltage DC 12V and draws 12W/M. A 120° beam angle gives an even spread across the run.
An IP67 rating makes it suitable for outdoor and wet-location use. Expect a rated life of 50000H.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- RGB colour mixing with smooth dimming and gradients
- IP67-rated housing for outdoor and wet-location use
- Low-voltage DC 12V operation for safe, simple installation
- 120° beam angle for even, wide coverage
- Long 50000H rated lifespan
Technical parameters
- LED Type
- SMD 5050RGB
- Color
- RGB
- Control Mode
- DMX512/SPI
- LED Quantity
- 48 LEDs/M
- Beam Angle
- 120°
- Power
- 12W/M
- Voltage
- DC 12V
- Size
- 1000mm*30mm*30mm
- IP Rating
- IP67
- Working Temperature
- -20℃~50℃
- Lifespan
- 50000H
- Warranty
- 2 Years
Model PI-10048IC-50 — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Control protocol: configurable for DMX512, SPI.
