PI-10048IC-50
LED Pixel Bar · PI-10048ICRGB-50

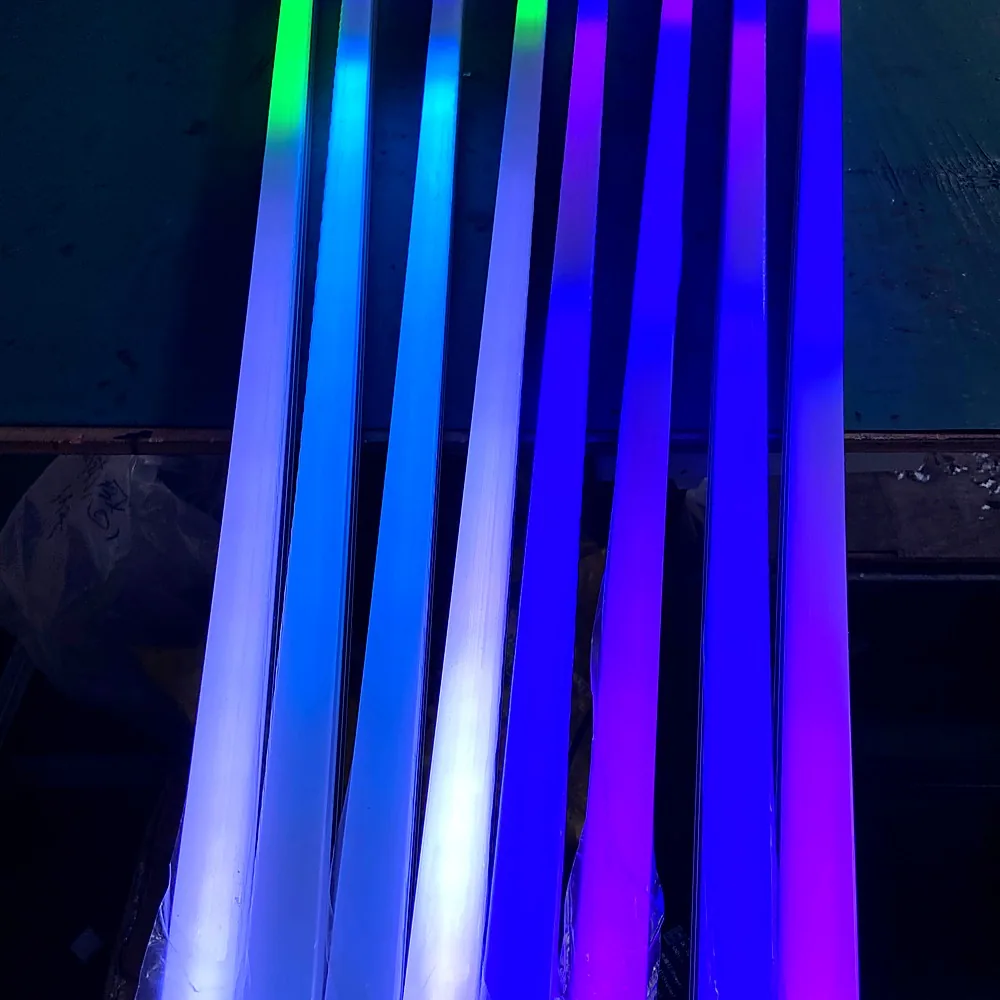

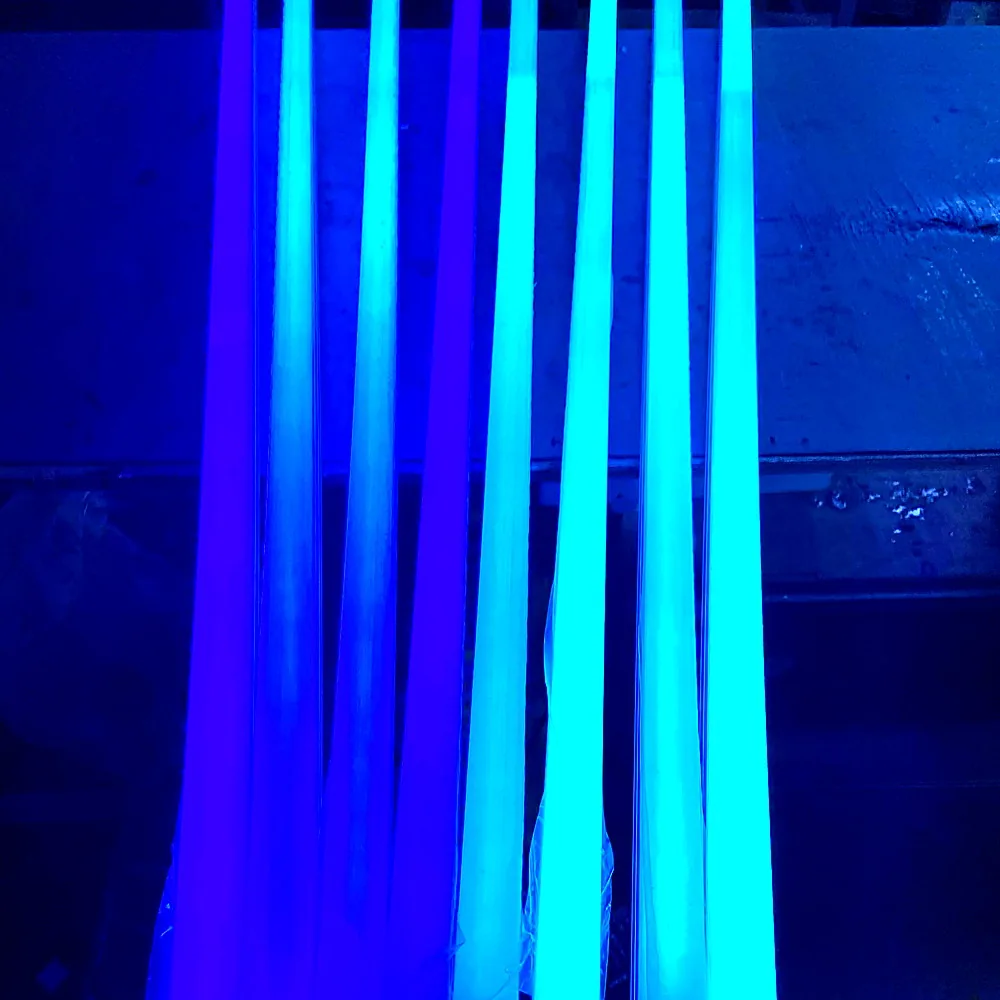

45mm Milky RGB LED Pixel Bar
3D Nightclub Event LED Pixel Bar With Aluminum Profile Milky White PC Cover
Individually addressable full-color RGB LED pixel bar for pixel-mapped stage, club and event lighting.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 45mm Milky RGB LED Pixel Bar
The PI-10048ICRGB-50 is a full-color RGB LED pixel bar with 48 LEDs/m. Each LED is individually addressable, so the fixture drives pixel-mapped wash, beam and tube effects on stage and event rigs.
Control is over SPI or DMX512. It runs on low-voltage DC 12V and draws 12W. A 270° beam angle gives an even spread across the run.
An IP67 rating makes it suitable for outdoor and wet-location use. Expect a rated life of 50000H.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- RGB colour mixing with smooth dimming and gradients
- IP67-rated housing for outdoor and wet-location use
- Low-voltage DC 12V operation for safe, simple installation
- 270° beam angle for even, wide coverage
- Long 50000H rated lifespan
Technical parameters
- Color
- FULL-RGB
- Control Mode
- SPI/DMX512
- Pixel Pitch
- 16PIXELS/M
- LED Quantity
- 48LEDS/M
- Beam Angle
- 270°
- Power Consumption
- 12W
- Voltage
- DC 12V
- Size
- 1000*30*45mm
- IP Rating
- IP67
- Weight
- 0.6KG
- Lifespan
- 50000H
- Warranty
- 2 Years
Model PI-10048ICRGB-50 — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Control protocol: configurable for SPI, DMX512.
