AC Mine Strip

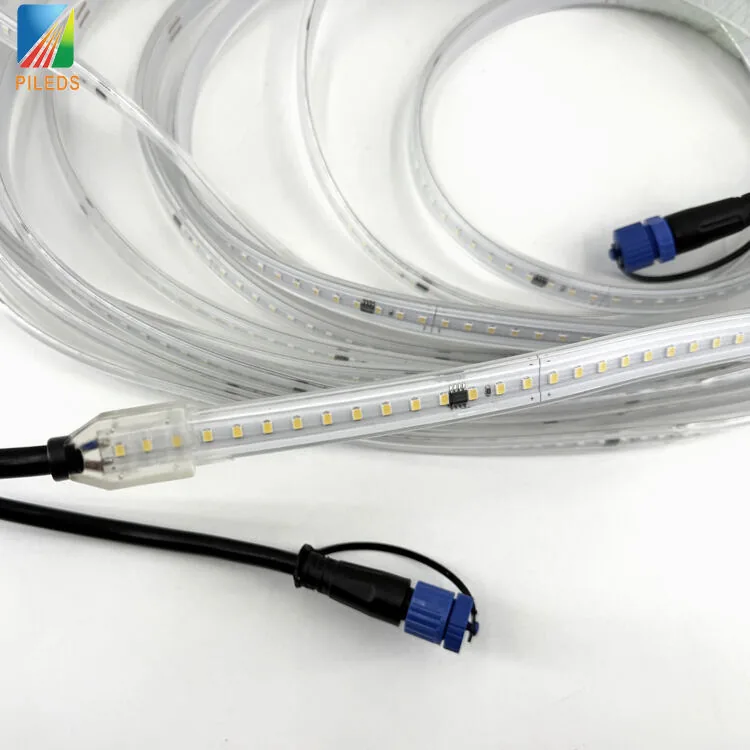

Heavy-Duty Tunnel Mining LED Strip
- Voltage AC36V/48V/AC110V/AC220V
- Color RGB / White
- Waterproof IP68
Product Category
Mine LED Light Strip
The PILEDS Mine LED Light Strip is an AC-mains, IP68-sealed strip light built for mining shafts, tunnels and civil-defense works. Running directly on AC36V–AC220V and strap-mounted to walls and arches, it delivers rugged, impact-resistant task lighting for confined and hazardous spaces — in white or RGB, cut to length on site.
- Power 13 – 24 W/m
- IP Rating IP68
- Color White / RGB
- Control On / Off
Get a Quote5 models · OEM / ODM welcome
Mine LED Light Strip range
Real factory models — pick one, or tell us your spec and we'll match the SKU.

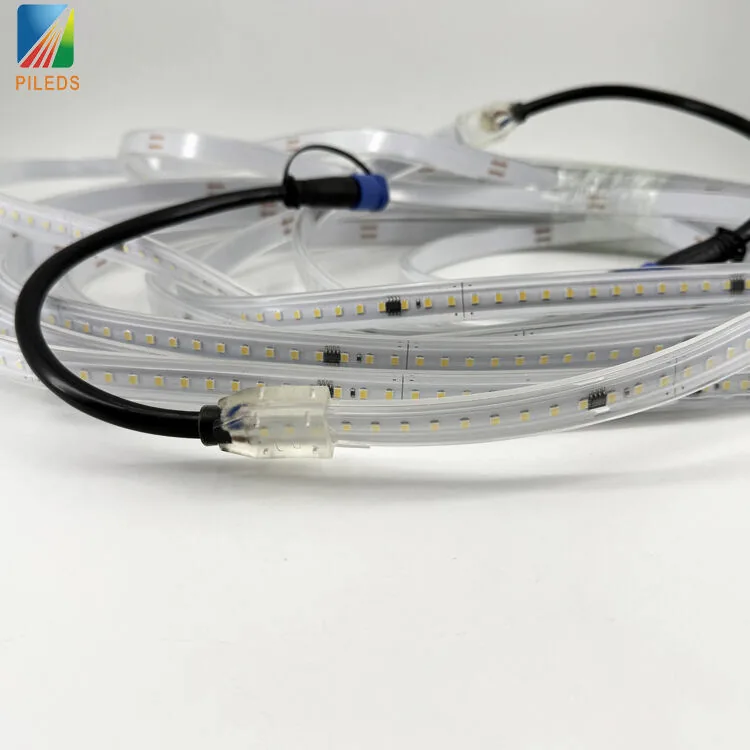

AC Tunnel Strip
Impact-Resistant Tunnel LED Strip
- Voltage AC36V / 48V / AC110V / AC220V
- Color RGB / White
- Waterproof IP68

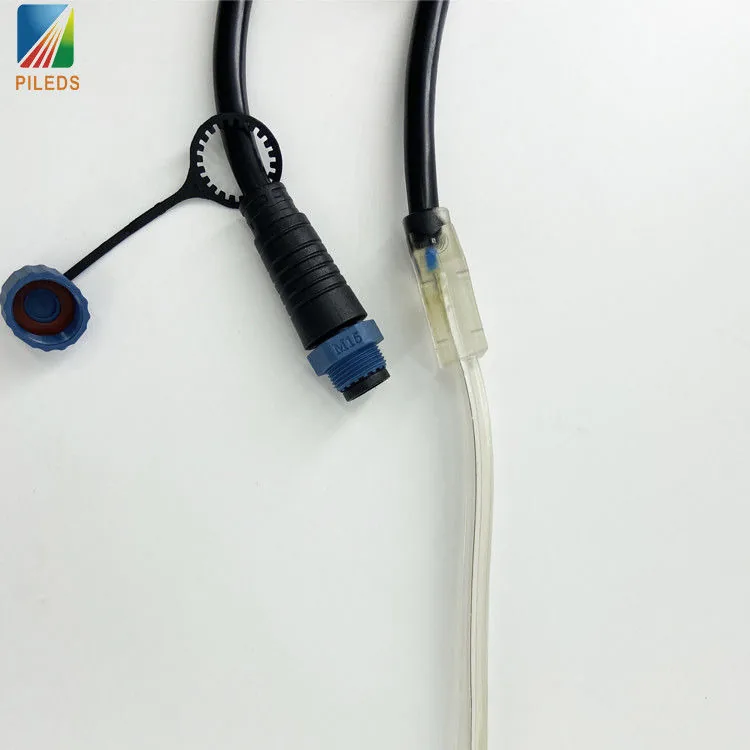

AC36V Mine Strip
AC36V IP68 Mine LED Strip
- Voltage AC36V
- Color RGBwhite
- Waterproof IP68

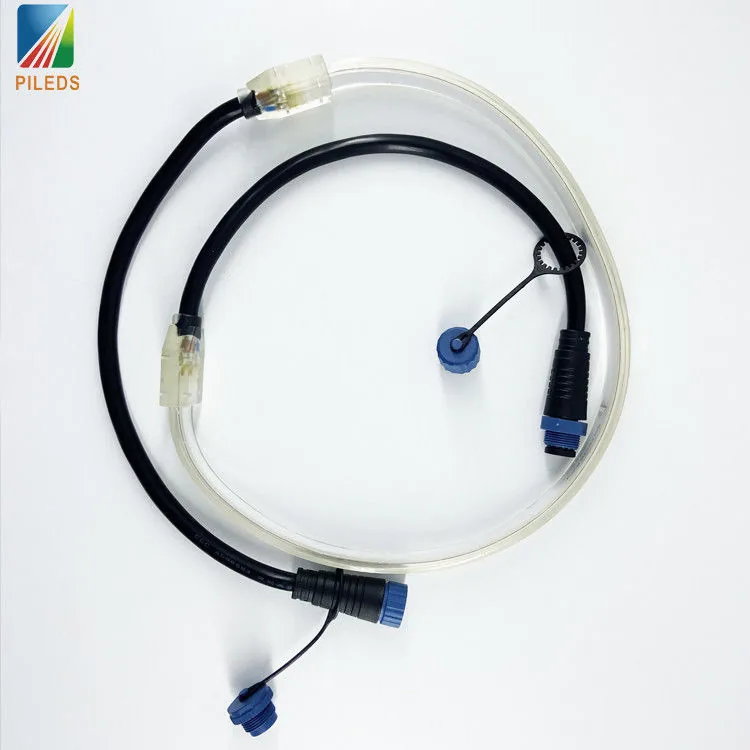

AC36V Mine Strip EX
AC36V Explosion-Proof Mine LED Strip
- Voltage AC36V
- Color RGBwhite
- Waterproof IP68

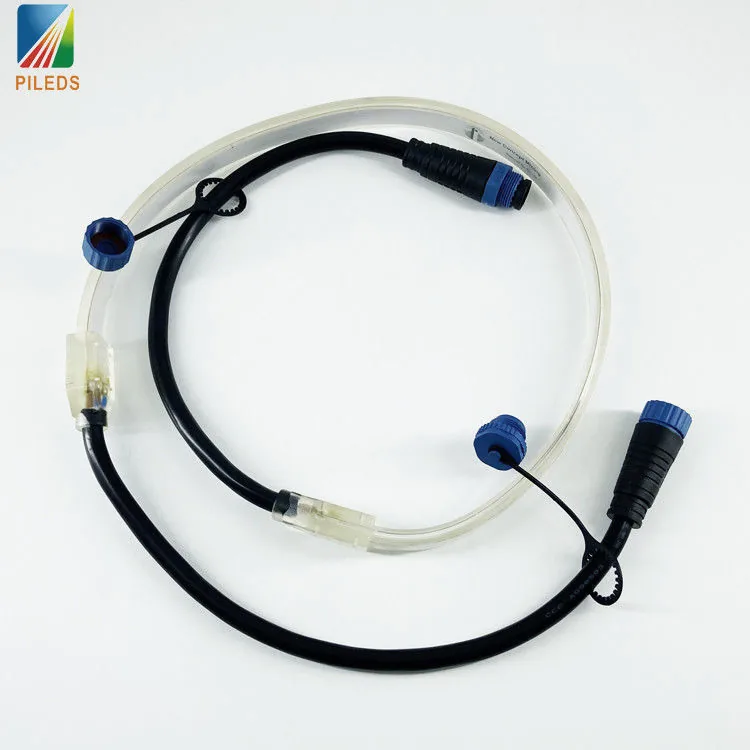

AC36V Mine Strip FX
AC36V Flexible Anti-Explosion Mine Strip
- Voltage AC36V
- LED Type SMD2835 LED
- LED Quantity 100LEDS/M
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Payment
- T/T
- Delivery
- 5–7 days
- Warranty
- 2 years
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Selection guide
Choose the right mine led light strip configuration
Use these decisions to narrow the model range before controller, power, cabling, and mounting quantities are engineered.
Site supply
AC36V / 48V / 110V / 220V by model
Match the ordered strip and connectors to the engineered site supply. Do not substitute voltages in the field, and confirm local electrical requirements before installation.
Ingress and termination
IP68 strip with watertight connectors and end caps
The completed run is only as protected as its cuts, joints, feed cable, and end termination. Specify factory lengths where possible and document the field re-sealing method.
Run length and mounting
0.5–50 m options; strap-mounted flexible body
Provide each run length, bend path, fixing interval, feed location, and replacement access. The available length and wattage vary by model.
Compliance boundary
IP rating and project-specific certificates
IP68 addresses ingress protection only. For a classified hazardous location, approve the exact model against the required explosion-protection certificate and marking before purchase.
Built for these venues.
Pairs well with
Questions to resolve before ordering
Does an IP68 mining LED strip count as explosion-proof?
No. IP68 describes dust and water ingress protection; it does not certify explosion protection. For a classified hazardous area, request the exact model's certificate, marking, issuing body, and scope, then have the project authority approve it before ordering.
Which voltage should be used for a tunnel or mining run?
Use the voltage defined by the engineered site supply and local requirements. Available products include AC36V, 48V, 110V, and 220V configurations, but the strip, connectors, protection devices, cable, and feed layout must be specified as one system.
Can the strip be cut and reconnected on site?
Model-specific lengths can be cut or supplied to length, but every field cut changes the sealing boundary. Use the approved connector, end cap, and re-sealing procedure, and verify the completed assembly before energizing it.
What should a mining-lighting RFQ include?
Provide site voltage, individual run lengths, total metres, wattage or illuminance target, mounting path, ambient conditions, connector locations, required ingress and hazardous-area certificates, cable entry method, project country, and spare quantity.
