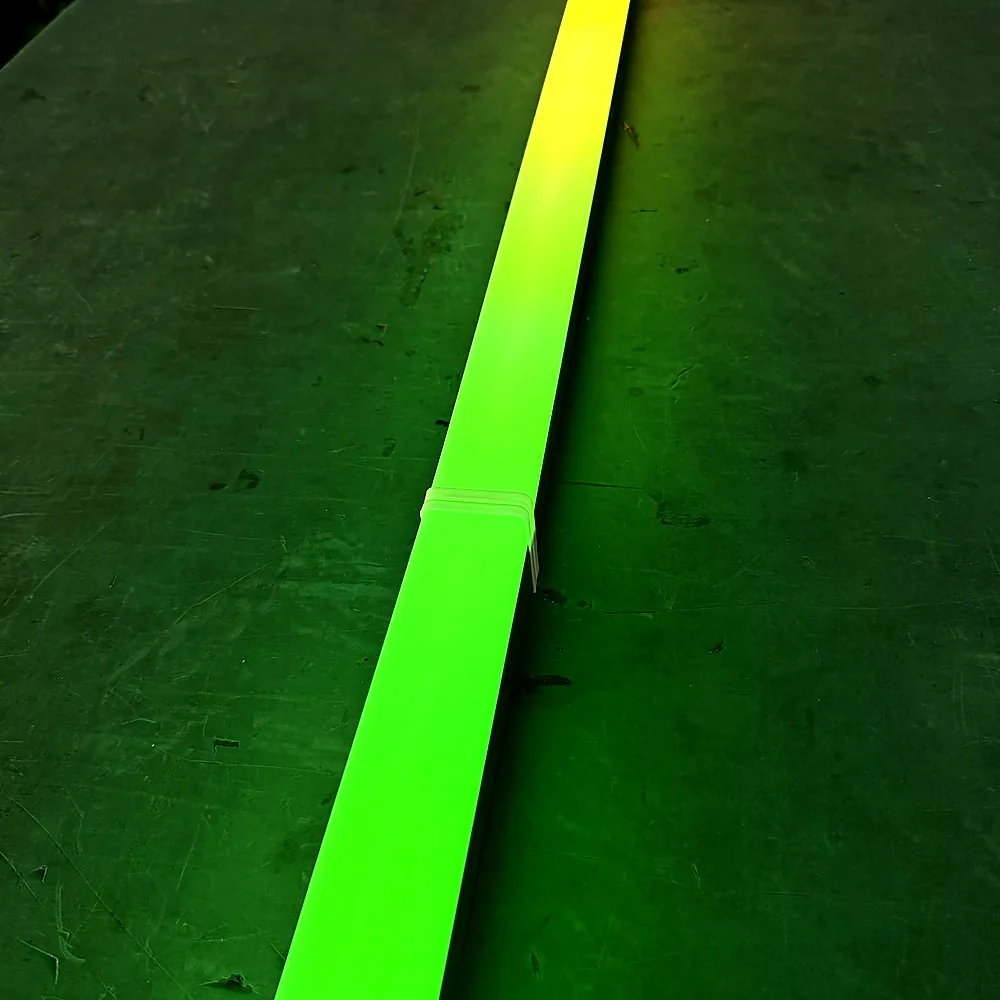

PI-10060ICRGB
RGB LED Pixel Tube
- Control Mode SPI/DMX
- Pixels 60pixels/Meter
- LED Type SMD 5050RGB
Product Category
LED Pixel Tube
The PI-300 / PI-400 series LED Pixel Tube delivers full-color 360° pixel effects from SMD 5050 RGB emitters in a 20–40 mm aluminium tube. Addressable over SPI or DMX512, it drives meteor, chase, and video-mapped looks for clubs, stages, and architectural columns — single-cable power and data for clean rigs.
- LED Type SMD 5050 RGB
- LED Density 96 – 168 LED/m
- Input Voltage DC 12V / 24V
- Power 23 – 40 W/m
Get a Quote8 models · OEM / ODM welcome
LED Pixel Tube range
Real factory models — pick one, or tell us your spec and we'll match the SKU.

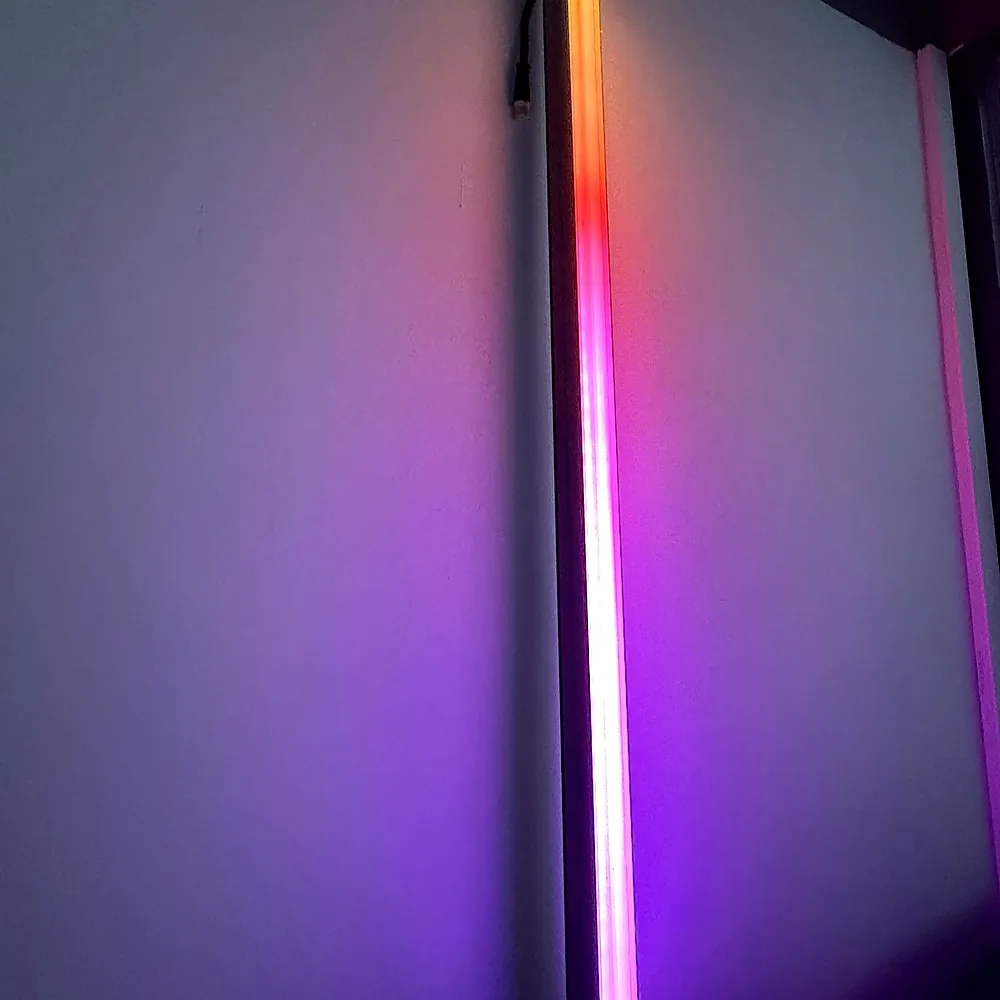

PI-400ICRGB-50
40mm Milky RGB LED Pixel Tube · DC24V
- Color FULL-RGB
- LED Quantity 168LEDS/M
- Voltage DC24V
PI-10060IC-50S
Video RGB LED Pixel Tube
- Color RGB
- LED Type SMD 5050
- IP Rating IP20/IP65

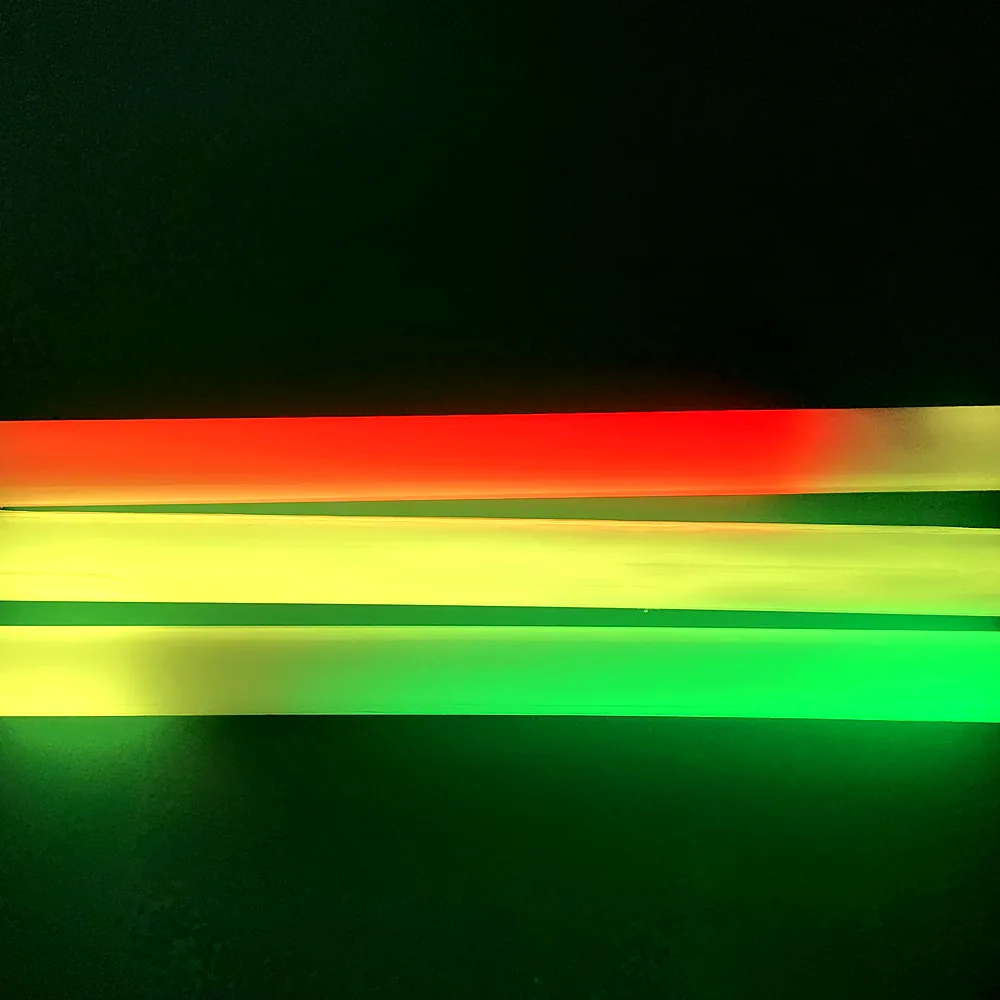

PI-400ICRGB-02
40mm LED Pixel Tube
- Size 40MM*1000MM
- Color Full Color
- Control Mode DMX512/SPI/SD Card/Remote Control

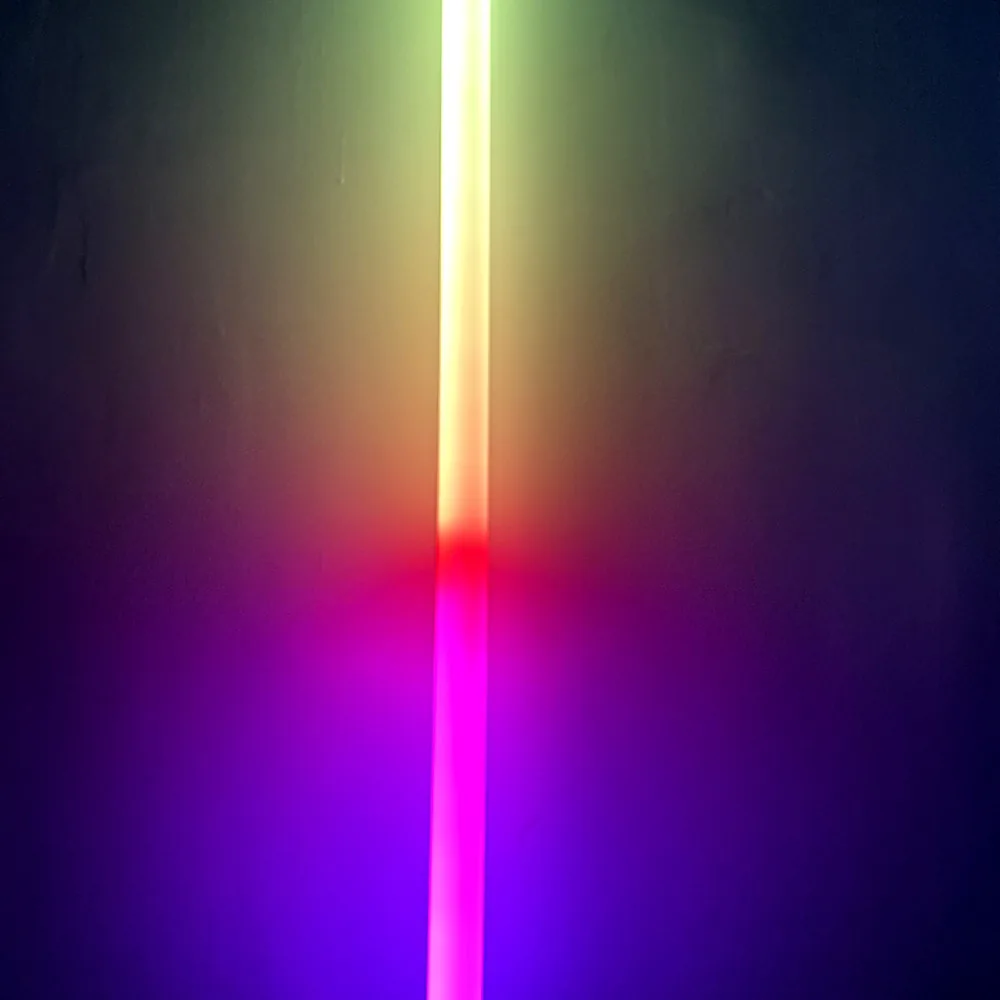

PI-400ICRGB-02
40mm Milky RGB LED Pixel Tube · WS2811
- Size 40MM*1000MM
- Color Full Color
- Control Mode DMX512/SPI/SD Card/Remote Control

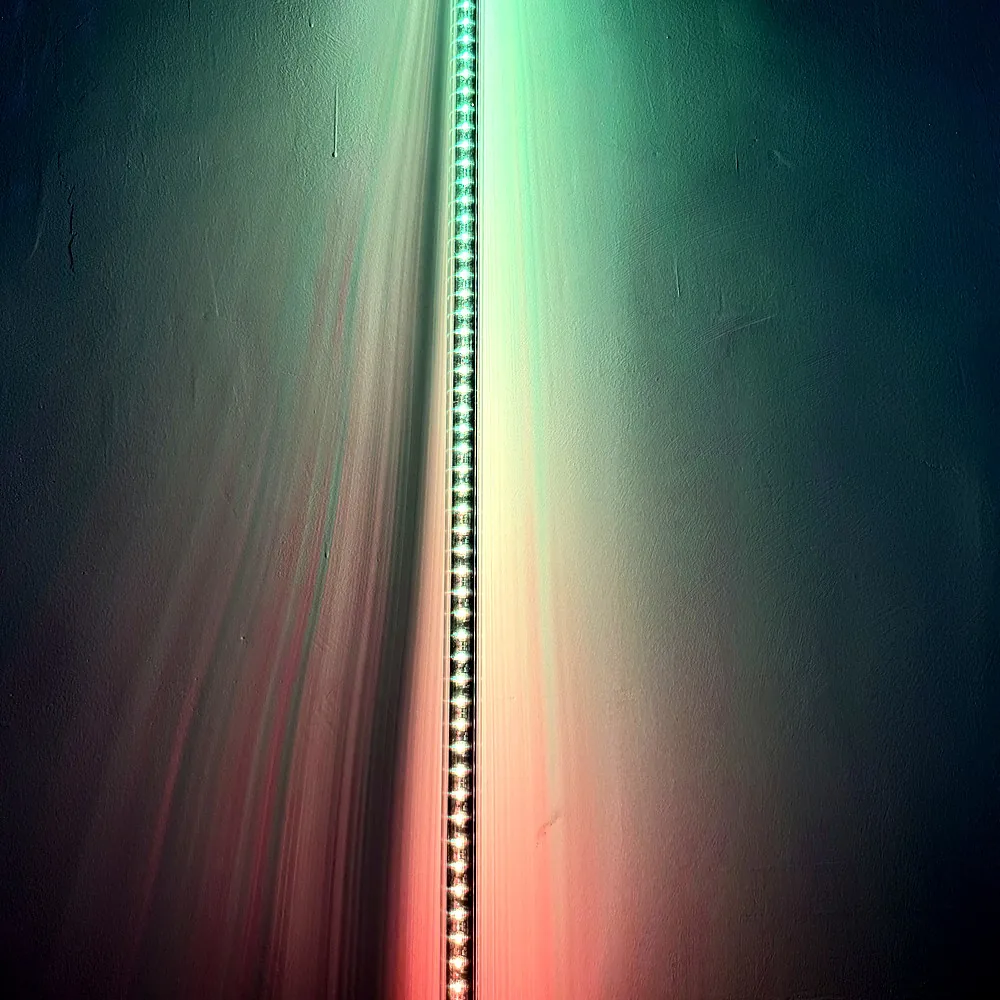

PI-300ICRGB-LX
30mm Meteor RGB LED Pixel Tube
- Size 1000*30*30mm
- Color FULL-RGB
- Control Mode DMX512/SPI

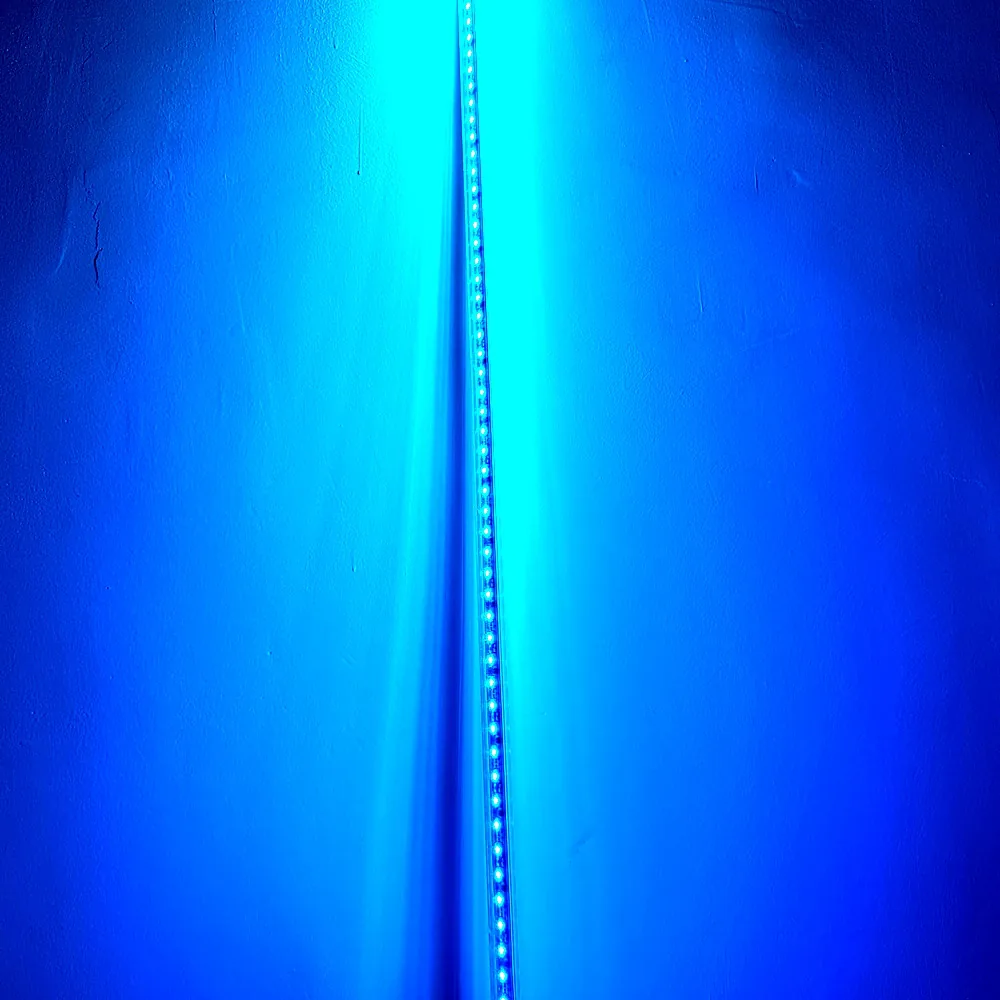

PI-300ICRGB-LX
20mm Meteor RGB LED Pixel Tube
- Size 1000*20*20mm
- Color FULL-RGB
- Control Mode DMX512/SPI

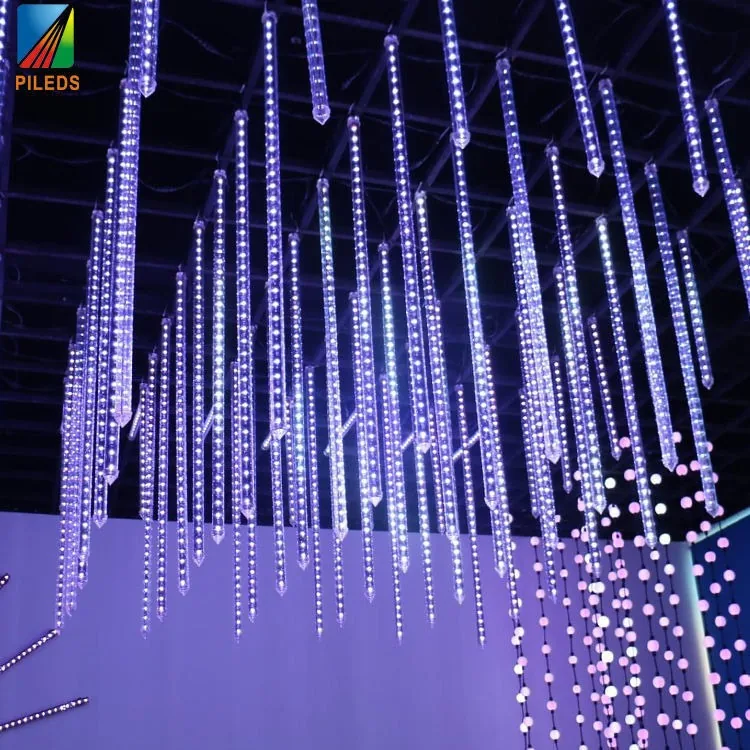

PI-300ICRGB-LX
30mm Clear RGB LED Pixel Tube
- Size 1000*30*30mm
- Color FULL-RGB
- Control Mode DMX512/SPI
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Payment
- T/T
- Delivery
- 5–7 days
- Warranty
- 2 years
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Selection guide
Choose the right led pixel tube configuration
Use these decisions to narrow the model range before controller, power, cabling, and mounting quantities are engineered.
Tube diameter and optical finish
20 / 30 / 40 mm; clear or diffused models
Use diameter and diffuser style to balance viewing distance, brightness, and whether individual pixels or a continuous tube effect should remain visible.
Control and mapping
SPI / DMX512; model-specific SD-card or remote control
Define the controller, channel order, pixels per tube, and addressing method before production so the physical tube map matches the media-server patch.
Voltage and power distribution
DC12V / DC24V
Choose voltage with tube length, wattage, feed cable, and installation access. Higher voltage may reduce current for the same power, but injection spacing still depends on the complete assembly.
Environment
IP20 to IP65 by model
Indoor decorative tubes and exposed architectural tubes require different sealing, connectors, and drainage. Confirm the rating of the finished tube and cable assembly.
Built for these venues.
Pairs well with
Questions to resolve before ordering
What is the difference between a pixel tube and a pixel bar?
A pixel tube is selected for a visible linear or 360-degree luminous effect, while a pixel bar typically uses a directional profile for stage or facade lines. The exact beam angle, diffuser, mounting, and ingress rating depend on the model.
Can pixel tubes run from MADRIX, Art-Net, or sACN?
Yes, when the system includes a compatible network controller or decoder that converts Art-Net or sACN into the tube's supported DMX512 or SPI output. The tube, decoder, port count, and pixel map must be specified together.
What should be included in a pixel-tube RFQ?
Include tube count, tube length and diameter, pixels per tube, clear or diffused finish, RGB or RGBW, voltage, control platform, IP requirement, suspension or mounting method, cable lengths, and spare quantity.
